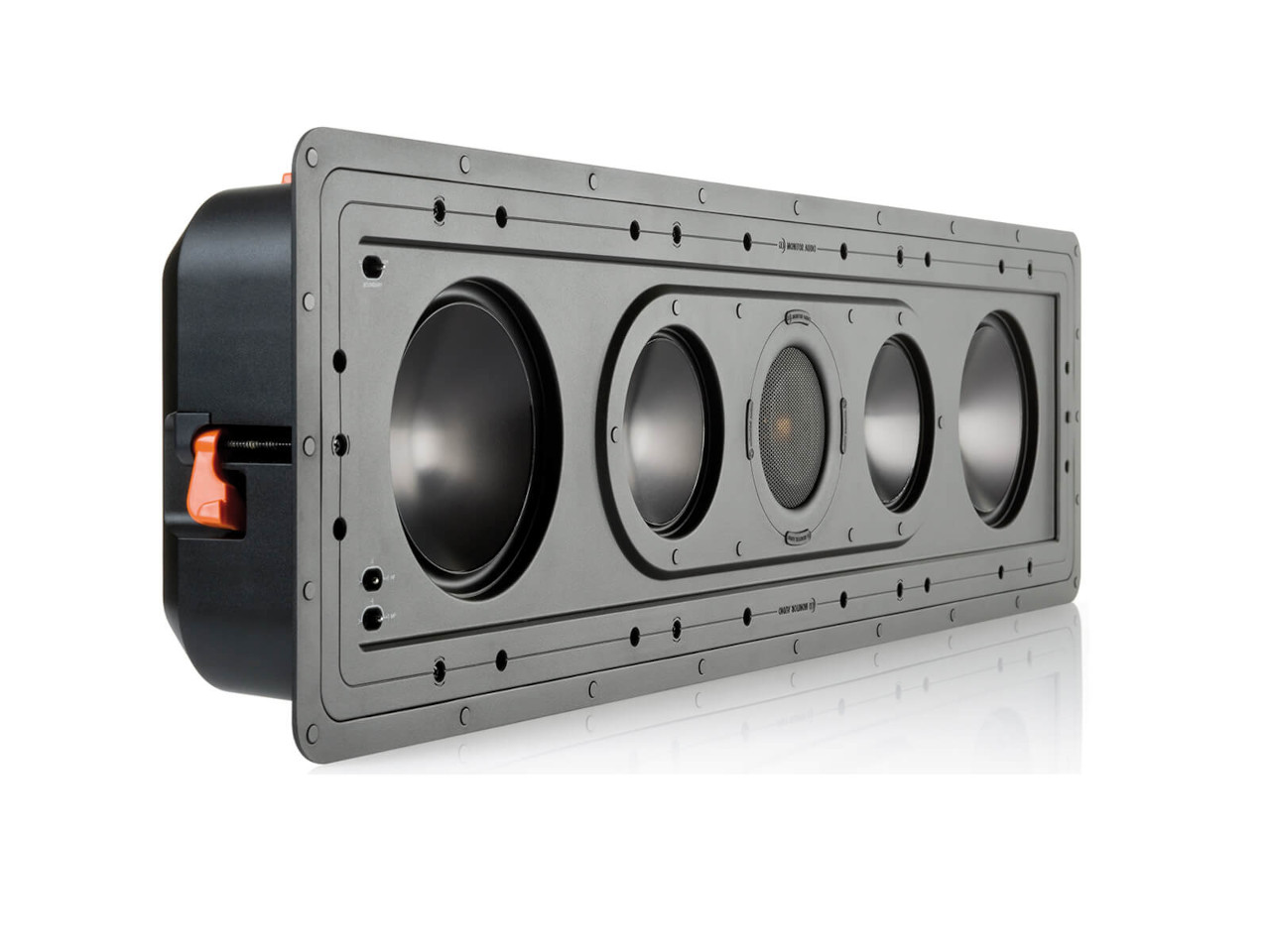

Monitor Audio Controlled Performance CP IW260X
€1,449.00
On order - delivery time on request (usually approx. 14 days)**
Buy together with
Product information "Monitor Audio Controlled Performance CP IW260X"
Der CP-IW260X verfügt über das unverwechselbare C-CAM-Membranmaterial (Ceramic-Coated Aluminium/Magnesium) von Monitor Audio, eingesetzt in doppelten 6,5-Zoll-Tieftönern und doppelten 4-Zoll-Mitteltönern, die in symmetrischer B-M-T-M-B-Konfiguration auf einem Goldkuppel-Hochtöner sitzen. Alles in einem Gehäuse aus gegossenem Polymer.
Important: Streichen Sie die CP-IW260X- und CP-IW460X-Gitter nicht an, da keine Ersatzgitter mitgeliefert werde.
Frequenzgang
50 Hz – 30 kHz (-6 dB typical in room response)
Nominalimpedanz
6 ohm
Empfindlichkeit (1W@1M)
89 dB
Maximaler Schalldruck
113.8 dBA
Belastbarkeit (RMS)
150 Watt
Empfohlene Verstärkerleistung
60 – 150 Watt
Übergangsfrequenz
L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave
Treiberbestückung
2 x 6.5" C-CAM Bass drivers
2 x 4" C-CAM Mid-range drivers
1 x 25 mm (1") C-CAM Gold Dome tweeter
Bedienelemente
Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
Gesamtabmessungen (H x B x T)
907 x 257 mm
Gesamttiefe (mit Blende)
102 mm
Abmessungen Montage-Ausschnitt
880 x 230 mm
Montagetiefe
96 mm
Befestigungsart
10 x Tri-Grip Dog leg fixings
Baumaterial
Cast Polymer enclosure (RoHS2 Compliant)
Gewicht
11.98 kg
Einbauschablone
Erhältlich als
Stück
Login
Safety information:
- Avoid operating speakers at maximum volume for long periods of time to avoid hearing damage and equipment damage.
- Make sure speaker cables are routed securely and do not pose a tripping hazard. Use cable ducts or ties.
- Keep speakers away from water and moisture to prevent damage and short circuits.
- Place speakers in a stable position and make sure they cannot tip over or fall.
- Only use speakers in the environment they are intended for. Outdoors, only use speakers that are specifically designed for outdoor use to avoid weather and water damage.
- Further warnings and safety information can be found in the operating instructions, which can be downloaded from the manufacturer's website.
Manufacturer: Monitor Audio Ltd., 24 Brook Road, Rayleigh, Essex, SS6 7XJ, United Kingdom - marketing@monitoraudio.group
