Rotel MICHI X5 Series 2
€7,900.00
% Regular price: €8,999.00 -12.21% previously €7,900.00
In stock - ready for immediate dispatch - delivery time 1-3 days **
We can also recommend these products
Buy together with
Product information "Rotel MICHI X5 Series 2"
The Michi X5 Series 2 Integrated Amplifier is music reproduction reimagined. Thanks to a meticulous balance of innovation and critical audio engineering applied to every circuit, signal path, and electronic component, the Michi X5 Series 2 is capable of delivering a breathtaking 600 Watts of Class AB output power into 4 ohms under even the most demanding conditions.
Connect all your favorite music sources including Analog RCA and XLR Balanced, Moving Magnet or Moving Coil Phono, aptXTM HD Wireless Bluetooth, Coaxial and Optical. The PC-input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) with
full MQA hardware decoding up to 24-bit 384kHz. An ESS SABRE ES9028PRO 8-Channel Digital to Analog converter is configured for stereo decoding, dedicating 4 channels each to the left and right audio signals rendering music with exceptionally accurate timing and an immersive soundstage which reveals the finest of details. The Michi X5 Series 2 is powered by dual oversized in-house manufactured, shielded, low noise toroidal transformers feeding a bank of 4 parallel-aligned 22,000uF high-efficiency storage reservoir capacitors. Custom power supplies isolate drive current to critical analog and digital circuits delivering an ultraquiet noise floor with exceptional control of deep bass energy while maintaining finesse and clarity of the midrange and high frequencies.
The high-resolution graphic display is configurable to show a Graphic EQ or Peak Power Meter and ensures easy setup and configuration. Custom front panel controls and the elegant
Michi-series IR remote assures seamless operation from the comfort of your listening chair.

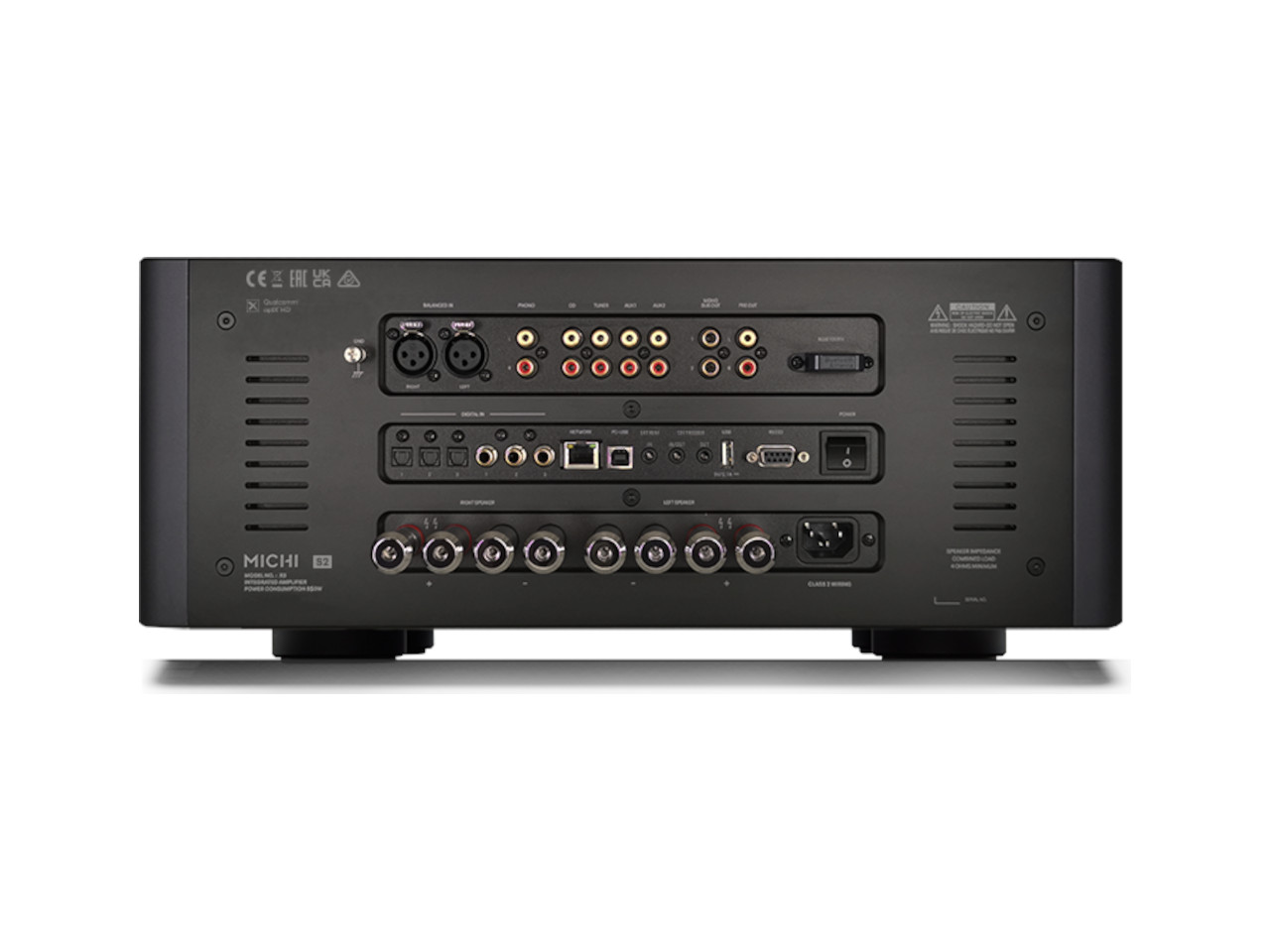

Dual Platinum-plated custom Michi speaker binding posts support traditional and bi-wire installations. A full size ¼” (6.35mm) front panel headphone connection is available for
private listening sessions. RS232 and Ethernet ports provide compatibility with all popular
control systems. Michi, expectations amplified.
Technische Daten
| Maximum Power Output | 600 watts/channel (4 ohms) |
| Continuous Power Output | 350 watts/channel (8 ohms) |
| Total Harmonic Distortion | < 0.009% |
| Intermodulation Distortion (60 Hz : 7 kHz, 4:1) |
< 0.03% |
| Frequency Response Phono Input Line Level Inputs |
20 Hz-20k Hz (+0 dB, -0.2 dB) 10 Hz-100k Hz (+0 dB, -0.6 dB) |
| Damping Factor (20 Hz - 20kHz, 8 ohms |
350 |
| Input Sensitivity / Impedance Phono Input (MM) Phono Input (MC) Line Level Inputs (RCA) Line Level Inputs (XLR |
5.7 mV / 47k ohms 570 uV/ 100 ohms 380 mV / 100k ohms 580 mV / 100k ohms |
| Input Overload Phono Input (MM) Phono Input (MC) Line Level Inputs (RCA) Line Level Inputs (XLR |
197 mV 19 mV 12.5 V 12.5 V |
| Preamplifier Output Level / Impedance |
1 V / 470 ohms |
|
Tone Controls Bass |
±10 dB at 100 Hz ±10 dB at 10k Hz |
| Signal to Noise Ratio (IHF “A” weighted) Phono Input (MM/MC) Line Level Inputs |
80 dB 102 dB |
|
Channel Separation Phono Input (MM) |
> 65 dB > 65 dB |
| Frequency Response | 20 Hz - 20k Hz (0 ± 0.4 dB) |
| Signal to Noise Ratio | 102 dB |
| Input Sensitivity/Impedance | 0 dBFs / 75 ohms |
| Preamplifier Output Level | 1.2 V (at -20 dB Volume Position) |
| Coaxial/Optical Digital Signals | SPDIF LPCM (up to 192kHz 24 bit) |
| PC-USB | USB Audio Class 1.0 (up to 96kHz 24-bit) USB Audio Class 2.0 (up to 384kHz 32-bit)* *Driver installation required DSD and DoP support MQA and MQA Studio support Roon Tested |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 850 watts |
|
Standby Power Consumption Normal |
< 0.5 watts < 2 watts |
|
BTU(4 ohms, 1/8 power) |
2194 BTU/h |
|
Dimensions(W x H x D) |
485 x 195 x 452 mm |
|
Weight |
43.8 kg, 96.56 lb |
