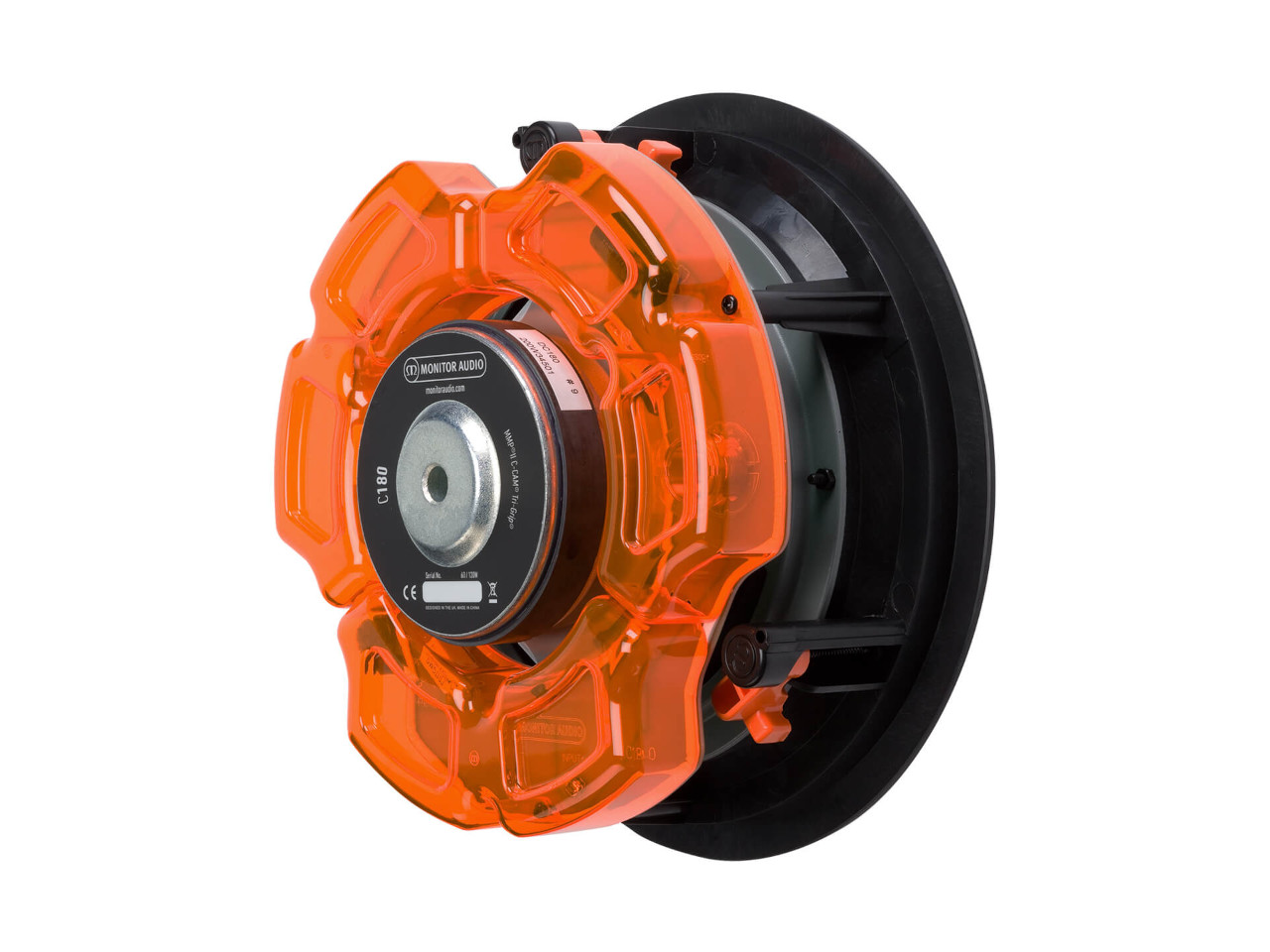

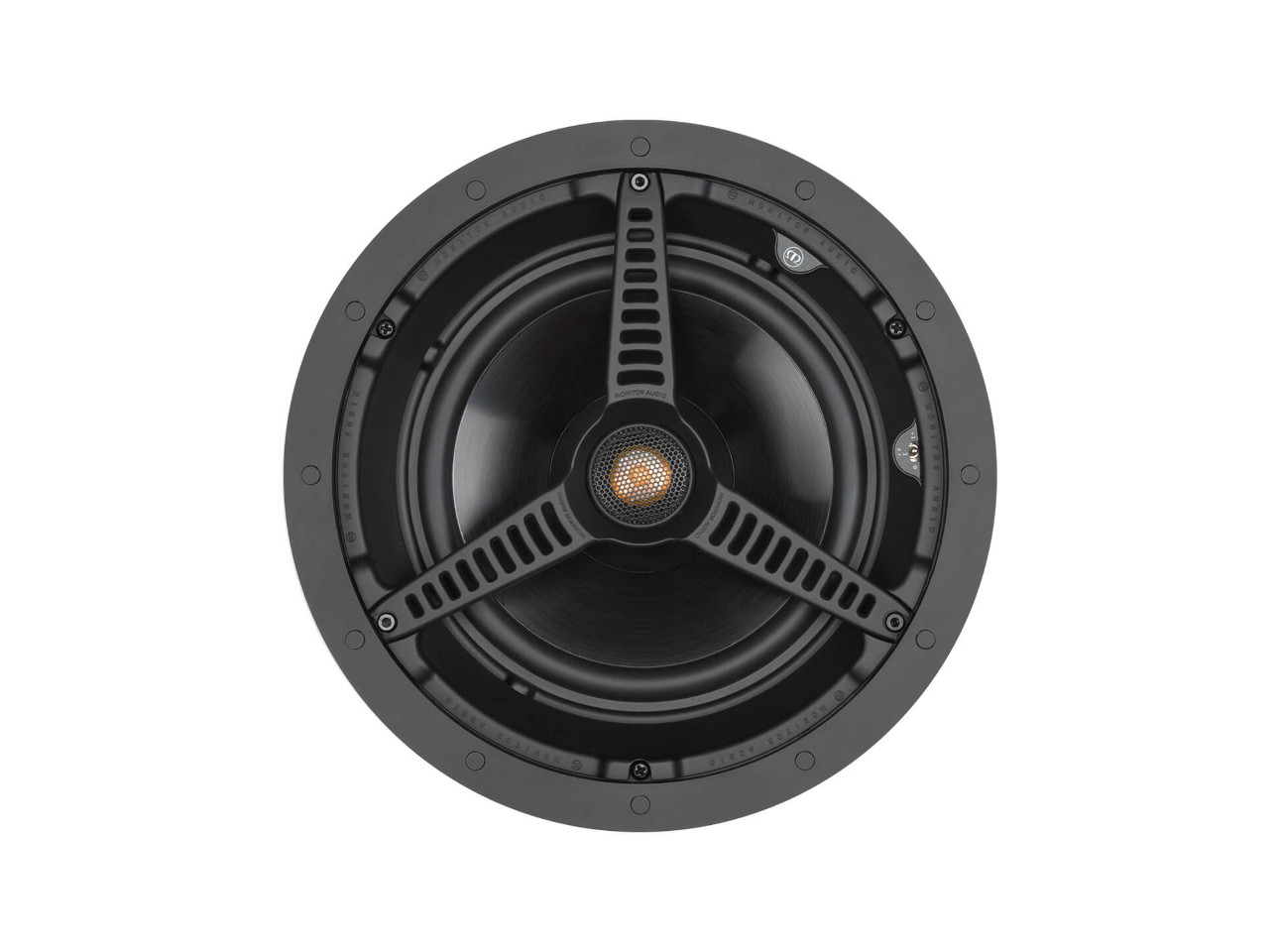

Monitor Audio Basic Series C180
€299.00
On order - delivery time on request (usually approx. 14 days)**
Buy together with
Product information "Monitor Audio Basic Series C180"
Optimale Bildgebung und Einrichtung werden über einen drehenden Hochtöner und eine Hochfrequenz (+3 dB / 0 dB / -3 dB) festgelegt.
Mit diesem Modell kann optionaler Quadratgrill verwendet werden.
Technische Daten
Frequency Response |
50 Hz – 25 kHz |
Nominal Impedance |
6 ohms |
Sensitivity (1W@1M) |
90 dB |
Maximum SPL |
111.6 dBA |
Power Handling (RMS) |
120 W |
Recommended Amplifier Requirements |
30 – 120 W |
Drive Unit Complement |
8" mmpII cone bass driver 1" c-cam pivoting gold dome tweeter |
Adjustment Controls |
HF Level Switch (+3 dB / 0 dB / -3 dB) |
Overall Diameter (Including Grille) |
285 mm (111/4") |
Overall Depth (Including Grille) |
126 mm (415/16") |
Mounting Depth |
122 mm (413/16") |
Cut-Out Hole Diameter |
247 mm (93/4") |
Fixing Type |
3 position tri-grip dog fixings |
Optional Square Grille - Outer Dimensions |
285 x 285 mm (111/4") |
Construction Material |
Mineral filled ABS, RoHS compliant |
Weight |
2.72 kg (6 lb) |
Pre-Construction Bracket |
CL-B |
Back Box |
CML-BOX |
Login
Safety information:
- Avoid operating speakers at maximum volume for long periods of time to avoid hearing damage and equipment damage.
- Make sure speaker cables are routed securely and do not pose a tripping hazard. Use cable ducts or ties.
- Keep speakers away from water and moisture to prevent damage and short circuits.
- Place speakers in a stable position and make sure they cannot tip over or fall.
- Only use speakers in the environment they are intended for. Outdoors, only use speakers that are specifically designed for outdoor use to avoid weather and water damage.
- Further warnings and safety information can be found in the operating instructions, which can be downloaded from the manufacturer's website.
Manufacturer: Monitor Audio Ltd., 24 Brook Road, Rayleigh, Essex, SS6 7XJ, United Kingdom - marketing@monitoraudio.group
