Rotel MICHI P5 Series 2
€5,500.00
On order - delivery time on request (usually approx. 14 days)**
We can also recommend these products
Buy together with
Product information "Rotel MICHI P5 Series 2"
The Michi P5 Series 2 Preamplifier is the ultimate choice for music enthusiasts and audiophiles looking for an unmatched audio experience. Custom engineered with twin 8-channel high precision ESS SABRE ES9028PRO Digital to Analog converters specially adapted to MONO mode, the P5 Series 2 provides redundant signal processing by 8 DAC circuits per channel. This multi-DAC solution is all about performance and extracts exceptional details and nuances of the music presented on an exceptionally wide sound stage.
Dual shielded, in-house manufactured toroidal transformers drive 16 independent power supplies isolating all critical circuits. The result is an ultra-quiet noise floor and extremely low distortion levels. The breathtaking performance of the Michi P5 Series 2
immerses you in your music like never before, precisely rendering every note, and enveloping you in sound.

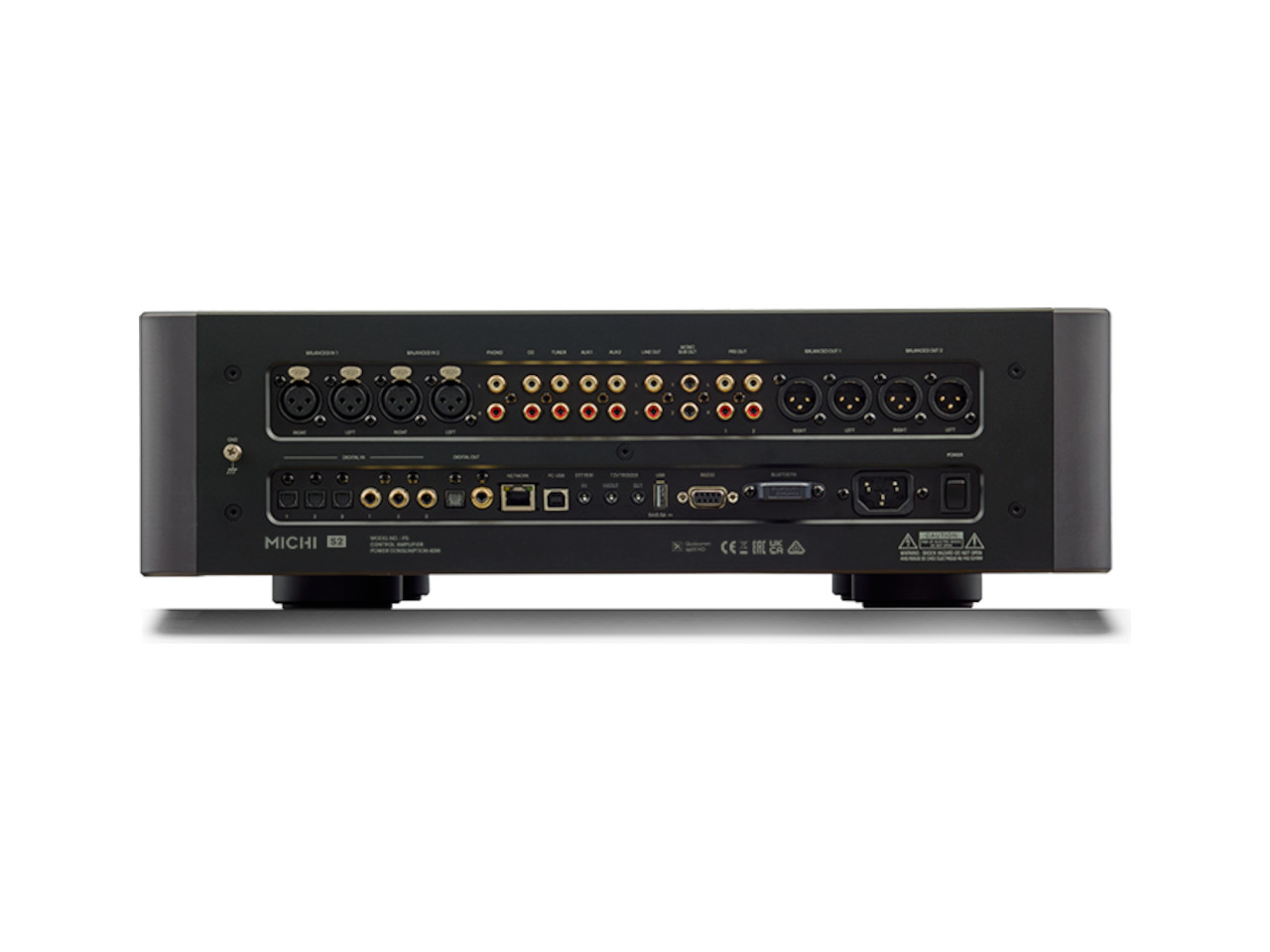

The Michi P5 Series 2 connects to all your favorite music sources including Analog RCA and XLR Balanced, Moving Magnet and Moving Coil Phono, aptXTM HD Wireless Bluetooth, Coaxial and Optical. The PC-USB input supports PCM (32-bit 384kHz)
and Quad DSD (11.2MHz) music files and full MQA hardware decoding up to 24-bit 384kHz.
The elegant, understated industrial design of the Michi P5 Series 2 is manufactured to the highest standards of quality as befits its flagship position in the Michi line. A high-resolution graphic display, front panel controls, IR remote, and headphone output ensure seamless setup and operation. RS232 and Ethernet connectivity support all popular control systems. The Michi P5 Series 2 Preamplifier continues to deliver on the Michi promise of acoustic elevation to even the most discerning of audiophiles.
Michi, expectations amplified.
Technische Daten
| Total Harmonic Distortion (20Hz-20kHz) |
< 0.002% |
| Intermodulation Distortion (60 Hz : 7 kHz, 4:1) |
< 0.002% |
| Input Sensitivity / Impedance Phono Input (MM) Phono Input (MC) Line Level Inputs (RCA) Line Level Inputs (XLR |
2.5 mV / 47k ohms 250 uV / 100 ohms 160 mV / 47k ohms 250 mV / 100k ohms |
| Input Overload Phono Input (MM) Phono Input (MC) Line Level Inputs (RCA) Line Level Inputs (XLR) |
199 mV 22 mV 12 V 12 V |
| Output Level Line Level (RCA) Line Level (XLR) |
1 V / 470 ohms 2 V / 100 ohms |
| Frequency Response Phono Input Line Level Inputs |
20 Hz-20kHz (0 ±0.3 dB) 10 Hz-100kHz (0 ±0.3 dB) |
| Tone Controls Bass Treble |
±10 dB at 100Hz ±10 dB at 10kHz |
|
(IHF “A” weighted) |
80 dB 116 dB |
| Channel Separation Phono Input Line Level Inputs |
> 55 dB > 85 dB |
| Frequency Response | 20Hz - 20kHz (0 ± 0.3 dB Max) |
| Signal to Noise Ratio (IHF “A” weighted) |
100 dB |
| Input Sensitivity/Impedance | 0 dBFs / 75 ohms |
| Digital Output | 0.75V, Peak to Peak |
| Load Impedance | 75 Ohms |
| Coaxial/Optical Digital Signals | SPDIF LPCM (up to 192kHz 24 bit) |
| PC-USB | USB Audio Class 1.0 (up to 96kHz 24-bit) USB Audio Class 2.0 (up to 384kHz 32-bit)* *Driver installation required DSD and DoP support MQA and MQA Studio support Roon Tested |
| Power Requirements | 230 Volts, 50 Hz |
| Standby Power Consumption Normal Network Wakeup |
< 0.5 watts < 2 watts |
| BTU(4 ohms, 1/8 power) | 87 BTU/h |
| Dimensions ((W x H x D)) |
485 x 150 x 452 mm |
| Weight | 22.9 kg, 50.5 lb |
Login
Safety information:
- Always check that the mains voltage of the socket matches the voltage indicated on the device before plugging it in.
- Make sure that electronic devices are well ventilated and do not overheat. Do not place them on soft surfaces such as beds or pillows that could block the ventilation slots.
- Keep electronic devices away from water and damp environments to avoid short circuits and electric shocks. Do not use them near sinks, bathtubs or other water sources.
- Regularly check the cords and sockets of your devices for damage or wear. Do not use devices with damaged cords or loose sockets.
- Always switch off and unplug electronic devices before cleaning them. Do not use liquid cleaning agents or sprays directly on the device. Use a slightly damp cloth instead.
- Only use rechargeable batteries and batteries recommended by the manufacturer. Do not overcharge them or expose them to extreme temperatures. Dispose of old or damaged batteries properly and not in household waste.
-
Further warnings and safety information can be found in the operating instructions, which can be downloaded from the manufacturer's website.
