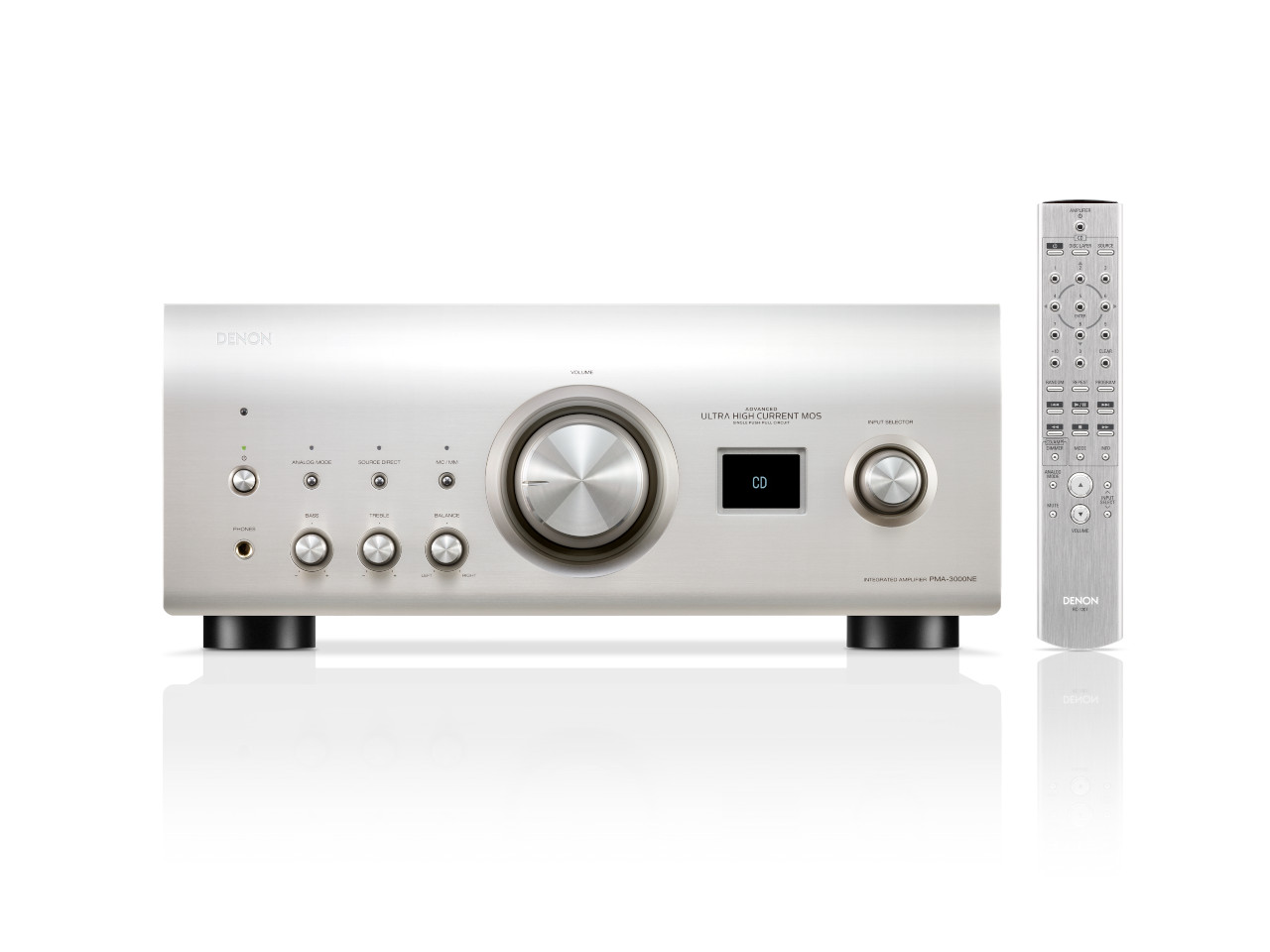

Denon PMA-3000NE Silber
€3,500.00
On order - delivery time on request (usually approx. 14 days)**
We can also recommend these products
Buy together with
Product information "Denon PMA-3000NE Silber"
Mit einer Leistung von 160 Watt pro Kanal bei 4 Ohm bzw. 80 Watt bei 8 Ohm versorgt der Denon PMA-3000NE selbst anspruchsvolle Lautsprecher mit spielerischer Leichtigkeit. Entwickelt und hergestellt in den Denon-Werken in Shirakawa, Japan.
- 2 Kanäle
- 160 Watt pro Kanal
- MM/MC-Phono-Vorstufe
- Ultra AL32 Processing
- Optische, koaxiale und USB-Anschlüsse
- Analog-Modus
Mit einem fortschrittlichen Push-Pull-Verstärker, hochentwickelter digitaler Signalverarbeitung und einer robusten Phonostufe gibt der PMA-3000NE Ihre Lieblingsmusik mit Klarheit und Präzision wieder.
Die digitalen Eingänge (optisch, koaxial und USB-B) unterstützen Audiosignale mit bis zu 384 kHz/32 Bit. Die Wellenform-Reproduktionstechnologie Ultra AL32 Processing erzeugt einen weichen, hochauflösenden Sound.
Die Phono-Vorstufe des PMA-3000NE unterstützt sowohl MM- als auch MC-Tonabnehmer und liefert unverfälschten Vinyl-Sound mit jedem Setup.
Der PMA-3000NE liefert 160 Watt pro Kanal bei 4 Ohm bzw. 80 Watt pro Kanal bei 8 Ohm. Dank UHC-MOS Single-Push-Pull-Schaltung und zweistufiger Differentialverstärkerschaltung versorgt er selbst anspruchsvolle Lautsprecher mit außergewöhnlicher Klarheit und Linearität.
Technische Daten
| Rated Output Power |
80W + 80W 160W + 160W |
| Total Harmonic distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 μV / 100 ohm |
| Input Sensitivity:CD/LINE/RECORDER | 135 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 0.9V / 47 kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): 89 dB PHONO (MC): 74 dB CD: 107 dB |
| Power Consumption | 400W |
| Power Consumption at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
| Power Amplifier Circuit | New UHC-MOS Single Push Pull (7) |
| Preamplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Source Direct | Yes |
| Analog Amp Mode | Yes (button on front panel) |
| DAC Circuit | ES9018K2M × 4 |
| Digital Processing | Ultra AL32 Processing |
| DAC Master Clock Design,Asyncronous mode (for USB-B input) | Yes |
| Phono Input | Yes (MM / MC) *default = MM |

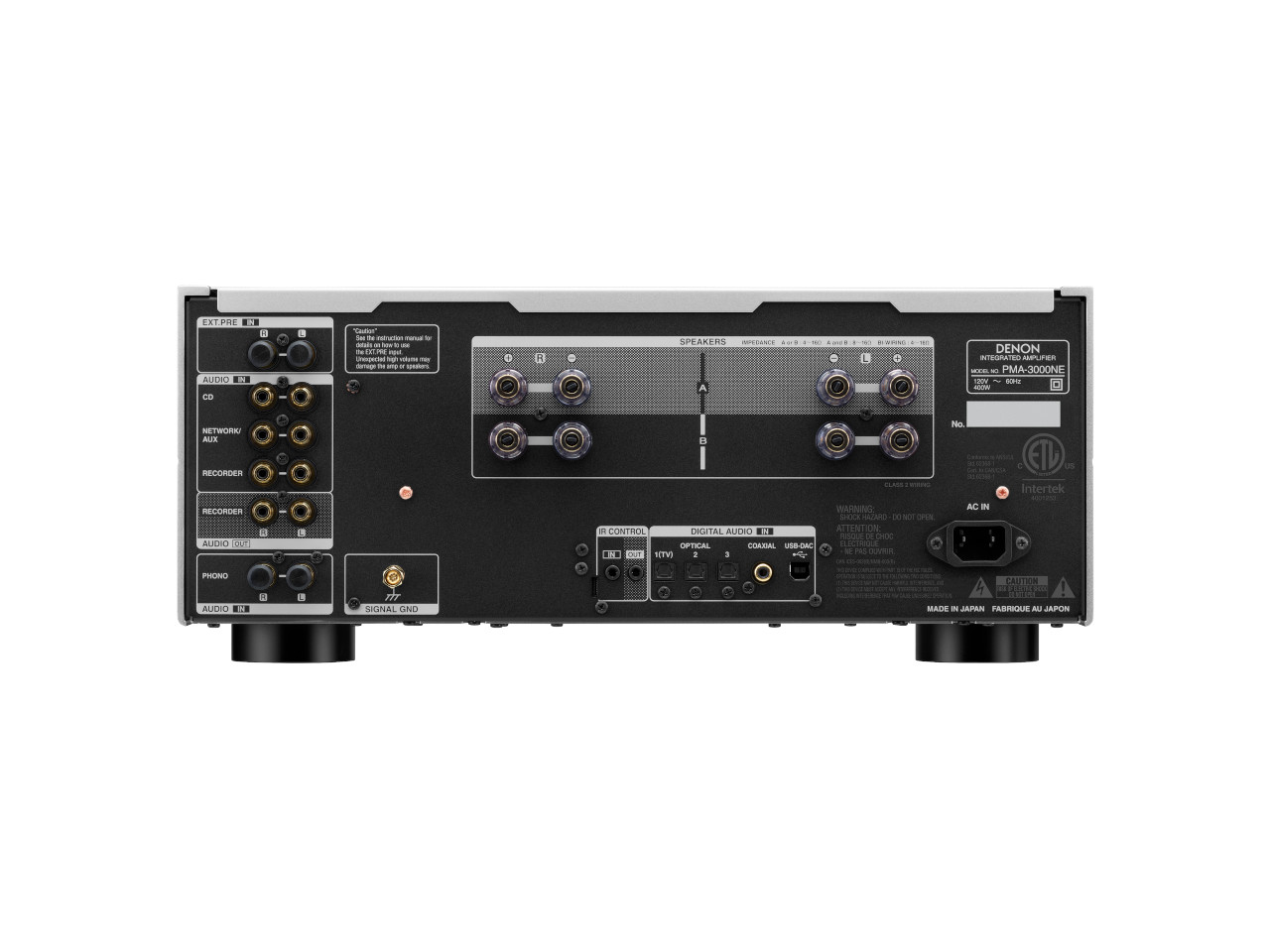

| Analog Input (include Phono) / REC Out (RCA) | 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER) |
| Optical input / output (Maximum Support) |
3 / 0 (192 kHz/24-bit) |
| Coaxial input / output (Maximum Support) |
1 / 0 (192 kHz/24-bit) |
| Speaker Terminal | AVR-A1H type Gold Plated w/Cover |
| Headphone Output1 | 1 |
| Remote Control,Remote Control Bus Terminal | Yes |
| Wi-Fi,HEOS | No |
| USB B (USB DAC) | 1 |
| PCM Sample Rate / Resolution | ~384 kHz/32-bit |
| DSD Audio Streaming | ~11.2MHz |
| Unit (W × H × D) | 434 × 182 × 443 mm |
| Net Weight | 24.6 kg / 54.2 lbs |
