Technische DatenFrequenzbereich:
44Hz-24kHz +/- 3dBBelastbarkeit:
150 W RMS / 600 W PeakWirkungsgrad:
97dB @ 2,83 Volt/1 MeterNominal Impedanz:
8 OhmÜbergangsfrequenz:
1400HzLautsprecher:
1" (2,54cm) Titanhochtöner mit integriertem quadratischen 90°x 60° Tractrix® Horn
8" (20,3cm) Cerametallic Konus WooferGehäuseart:
Bassreflex mit Reflexöffnung auf der VorderseiteAbmessungen (B x H x T):
235 x 484 x 312 (inkl. Abdeckung) mm

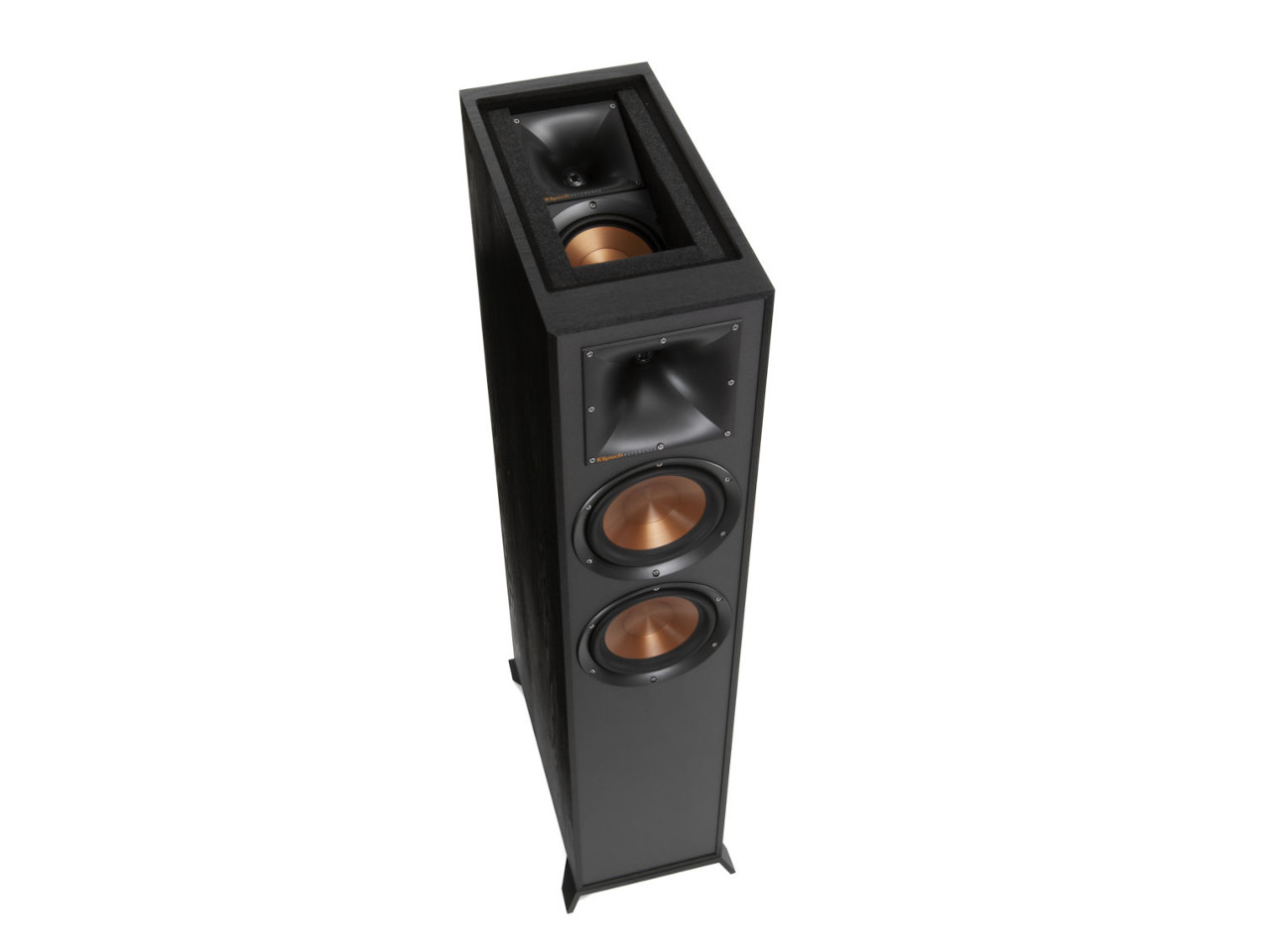

Built with an elevation channel integrated into the top, the R-625FA Dolby Atmos® floorstanding speaker not only delivers Stereo sound towards the listener, but also reflects sound off the ceiling to deliver the immersive, overhead Dolby Atmos® experience.
Eingebauter Elevation-Kanal für Dolby Atmos®
Dual 1" Aluminum Diaphragm Compression Tweeters
Main Channel: 6,5" Copper Spun Magnetically Shielded IMG Woofers
Height Channel: 5,25" Copper Spun Magnetically Shielded IMG Woofers
90x90 Square Tractrix Horn
Bass-Reflex via Rear-Firing Tractrix® ports
Strong, Flexible Removable Magnetic Grille
Abmessungen: 40" x 9,4" x 17,3"
Dolby Atmos
Einfach gesagt ist Dolby Atmos® der größte Fortschritt im Heimkino- und Heimaudiobereich seit der Einführung von Surround-Klang. The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room - making you feel like you're truly in the middle of the action.
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the R-625FA high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
REAR TRACTRIX® PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
SPECIFICATIONS - MAIN CHANNEL
FREQUENCY RESPONSE38Hz - 21kHz +/- 3dB
SENSITIVITY96 dB @ 2.83V/1M
POWER HANDLING (CONT/PEAK)100W/400W
NOMINAL IMPEDANCE8 ohms Compatible
CROSSOVER FREQUENCY2,000 Hz
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVER Dual 6.5" spun-copper IMG woofers
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEBass-Reflex via rear-firing Tractrix ® ports
INPUTSSingle Gold Plated Binding Posts
HEIGHT INCHES (MM)40" (1017 mm)
WIDTH INCHES (MM) 9.4" (240 mm)
DEPTH INCHES (MM)17.3" (439 mm)
PRODUCT WEIGHT LBS (KG)49 lbs (22.2 kg)
FINISHESBlack Textured Wood Grain Vinyl
INCLUDED ACCESSORIESInjection molded feet & screws
SPECIFICATIONS - HEIGHT CHANNEL
FREQUENCY RESPONSEConforms to Dolby Atmos Specifications
SENSITIVITYConforms to Dolby Atmos Specifications
POWER HANDLING75W/150W
NOMINAL IMPEDANCE8 ohms Compatible
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVER5.25" spun-copper IMG woofer
ENCLOSURE TYPEAcoustic Suspension
INPUTSSingle Gold Plated Binding Posts
SoundWare steht für ein kompaktes und hochwertiges Hörerlebnis, das seines Gleichen sucht. Mit seiner einzigartigen Polyederform, die man Ihnen nicht im Geometrieunterricht gezeigt hat und mit den Halteklammern zur Montage ist SoundWare so konzipiert, das das Gerät überall eingesetzt werden kann, wo die Musik spielt.
Der SoundWare Lautsprecher besteht aus wetterfestem Material und übersteht damit vereinzelte Regenschauer, Tropenstürme und alles, was Mutter Natur sonst noch in petto hat.
Frequenzbereich90Hz-20kHzEmpf. Verstärkerleistung:15 - 100 WattNominal Impedanz8 OhmWirkungsgrad87 dBLautsprecher:4,5" (114mm) Woofer075" (20mm) HochtönerÜbergangsfrequenz:3,5 kHzAbmessungen (B x H x T):157 x 157 x 167mmLieferumfang:1 Stück
Der Reference Premiere On-Wall Serie bringt den dynamischen, detaillierten und kraftvollen Klang der Reference-Box-Lautsprecher in einer schlanken, wandmontierbaren Lösung. Mit dem Cerametallic™ Tieftöner und dem Titanium Dome Linearen Travel Suspension (LTS) Hochtöner, können die Wandlautsprecher flexible als Front LCR oder Side / Rear Surround platziert werden.
Technische Daten:
Frequency Response67Hz-25kHz +/- 3dB
Sensitivity94dB @ 2.83V / 1m
Power Handling75W / 300W
Nominal Impedance 8 Ohms Compatible
Crossover Frequency2200Hz
High Frequency Driver1" (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn
Low Frequency DriverDual 3.5" (8.89 cm) Cerametallic Cone Woofers
Enclosure TypeBass Reflex
Size H, W, D40.64 cm, 15.24 cm, 6.10 cm
Weight2.38 kg

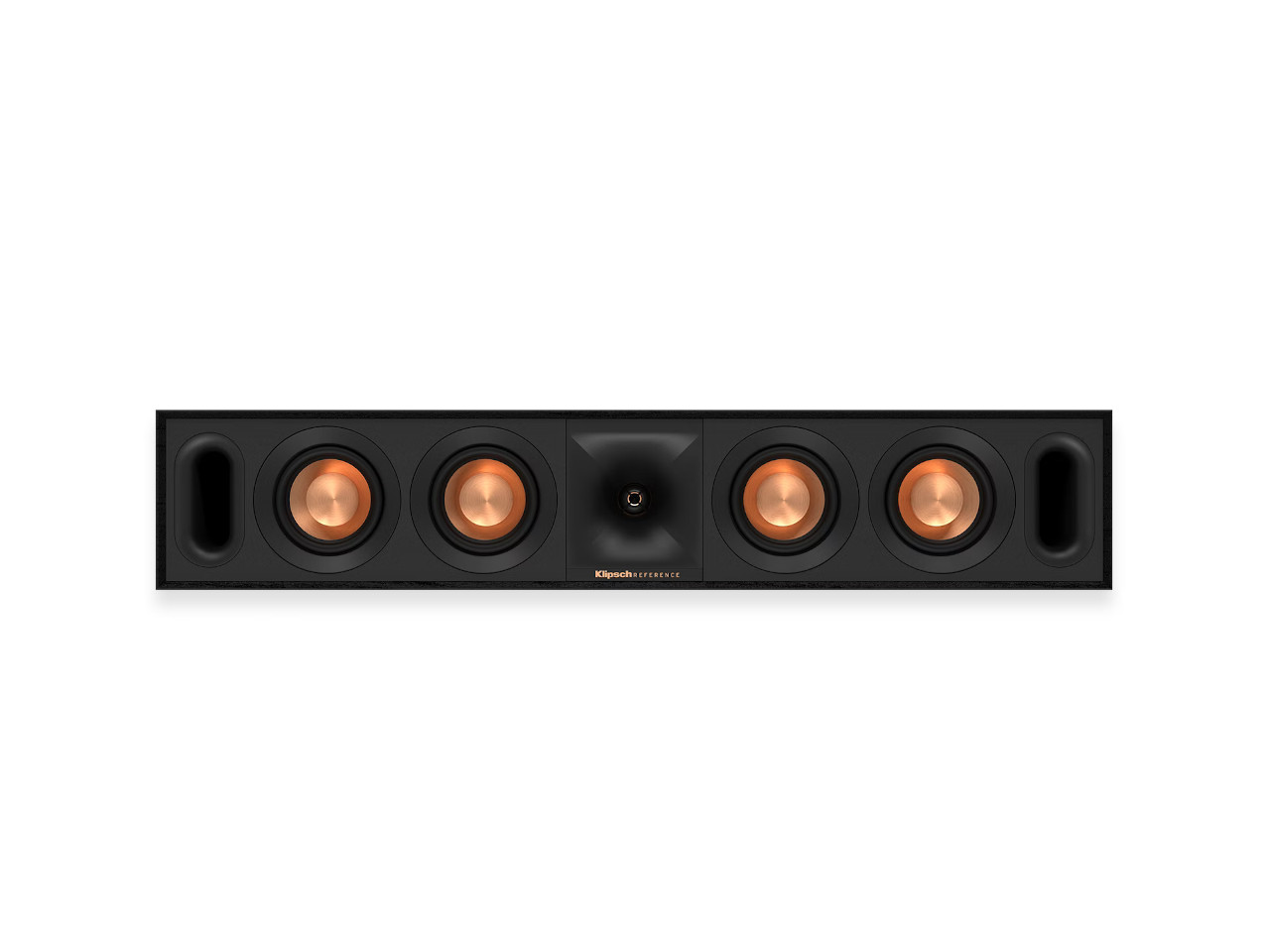

At only 5.2" tall, the R-34C center channel speaker compliments today's flat panel TVs with an unobtrusive, low-profiled design - all while delivering dynamic, crystal-clear acoustics for your movies and music. Dual front-firing Tractrix ports allow the R-34C to be placed right against your wall or entertainment system without effecting the bass response.
1" Aluminum LTS tweeter
90x90 Square Tractrix Horn
Quad 3.5" Spun-Copper IMG Woofers
Bass-Reflex via Dual Front-Firing Tractrix Ports
Strong, Flexible Removable Magnetic Grille
Abmessungen: 5.2" x 26" x 6.2"
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the R-34C high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
REAR TRACTRIX® PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
SPECIFICATIONS
FREQUENCY RESPONSE82Hz - 21kHz +/- 3dB
SENSITIVITY96 dB @ 2.83V/1M
POWER HANDLING (CONT/PEAK)100W/400W
NOMINAL IMPEDANCE8 ohms Compatible
CROSSOVER FREQUENCY1.600 Hz
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVERQuad 3.5" spun-copper IMG woofers
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEBass-Reflex via forward-firing Tractrix ® ports
INPUTSSingle Gold Plated Binding Posts
HEIGHT INCHES (MM)5.2" (133 mm)
WIDTH INCHES (MM)26" (660 mm)
DEPTH INCHES (MM)6.2" (157 mm)
PRODUCT WEIGHT LBS (KG)13 lbs (5.9 kg)
FINISHESBlack Textured Wood Grain Vinyl
INCLUDED ACCESSORIESRubber Feet (4)
Technische Daten
Frequenzbereich:24Hz-125Hz +/- 3dBMax. Schallpegel:118dBVerstärkerleistung:300/600 WattLautsprecher:12" (30,5cm) Langhub Cerametallic WooferGehäusetyp:Bassreflex mit Reflexport frontseitigEingänge:L/R Line-level/LFE RCA Anschlüsse, WA-2 PortFeatures:Gain, Lowpass, Phase (schaltbar 0-180°), Auto PowerAbmessungen (B x H x T):394 x 414 x 464 mm
VÖLLIG NEUES 90° X 90° TRACTRIX HORN
Unsere exklusive Tractrix®-Horntechnologie liefert Kraft, Detailtreue und Emotion des Live-Musikerlebnisses mit dem saubersten, natürlichsten Klang, der möglich ist. Die vergrößerten äußeren Hornabmessungen ermöglichen die Richtwirkungskontrolle über einen größeren Bandbreite von Frequenzen, was zu einer verbesserten Hochfrequenz-Richtwirkung und a genauere Klangbühne.
LINEAR TRAVEL SUSPENSION (LTS) ALUMINIUM HÖCHSTÖNER MIT KAPTON-AUFHÄNGUNG
Die exklusive Linear Travel Suspension (LTS) minimiert Verzerrungen für verbesserte, ausführliche Darbietungen. Aluminium ist ein extrem leichtes und steifes Material, das in verwendet wird die Hochtönerbaugruppe, um einen hohen Wirkungsgrad zu bieten und Auflösung und Details zu verbessern. LTS-Hochtöner sind ein Markenzeichen von Klipsch-Lautsprechern und damit eine Kernkomponente von einige der besten Lautsprecher der Welt.
WOOFER AUS THERMOGEFORMTEM KRISTALLINEM POLYMER (TCP) AUS GESPONNENEM KUPFER
Verwendung der Trickle-Down-Technologie von Klipschs hochgelobter Referenz Die TCP-Tieftöner der Premiere-Serie haben einen steileren Winkel der Membranen für einen glatteren Klang Reaktion und verbesserte Genauigkeit und Transparenz. Die zusätzliche Verrippung nimmt zu die Gesamtsteifigkeit für weniger Konusbruch bei höheren Frequenzen.
SCHLANKES, MODERNES ERSCHEINUNGSBILD
Versteckte Befestigungselemente, ein durchgehendes Horn und flache Magnetgitter geben dem Lautsprecher ein poliertes, modernes Erscheinungsbild.
MDF-GEHÄUSE MIT KRATZFESTEM VINYL MIT STRUKTURIERTER HOLZMASERUNG
Stilvolle Ästhetik mit absoluter Haltbarkeit, die zu einer nahtlosen Integration führt jedes Dekor.
HOCHWERTIGES GEHÄUSE
Die verstärkte 3/4-Zoll-MDF-Konstruktion mit einem völlig neuen Verstrebungsdesign reduziert den Schrank Vibration für weniger hörbare Färbung und verbesserte Klanggenauigkeit.
Technische Daten
Frequenzbereich
58Hz - 21kHz +/- 3dBEmpfindlichkeit
92 dB (In-Room)Belastung (Dauer/Spitze)
75W/300WNominale Impedanz
8 ohms CompatibleÜbergangsfrequenz
1,560 HzHochfrequenztreiber
1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® HornNiedrigfrequenztreiber
Single 5.25" spun-copper TCP wooferGehäusematerial
MDFGehäusetyp
Bass-Reflex via rear-firing portsEingänge
Single Gold Plated Binding PostsMasse (BxHxT)
178 x 354 x 229 mmGewicht
5 kg
Zweiweg-Deckenlautsprecher mit geringer Einbautiefe
Der SLM-5400-C ist einer der kompaktesten Deckeneinbaulautsprecher auf dem Markt und verfügt über eine geringe Tiefe (50 mm) mit einer vollständig geschlossenen Backbox. Zusammen mit erstklassiger Akustik direkt aus der legendären Architekturserie Klipsch Reference 5000 bietet der SLM-5400-C Hochleistungsakustik in einem extra schlanken Paket für großartigen Sound bei begrenztem Installationsraum.
Extrem geringe Tiefe von 50 mm für Hochleistungs-Audio in begrenzten Deckenbereichen
Feuerschutz-Gehäuse bietet außergewöhnliche Bassleistung
Langhubiger Cerametallic-Tieftöner 4 Zoll (10,16 cm) für beeindruckende Bassfrequenzen
Titan-Kalottenhochtöner 1 Zoll (2,54 cm) in Kombination mit einem runden Tractrix-Horn für einen detaillierten, dynamischen Hochtonbereich
Flacher, magnetischer, lackierbarer Stahl-Lautsprecher passt zu einem modernen Design
Abdeckgitter weiss je 1x rund und 1x eckig im Lieferumfang Technische Daten
Frequenzgang
90Hz - 20kHzBelastbarkeit
120 W SpitzeEmpfohlene Verstärkerleistung
50WEmpfindlichkeit
91dBNennimpedanz
4 OhmHochfrequenztreiber
1" (2,5 cm) Titankalotten-Hochtöner mit rundem Tractrix-HornNiederfrequenztreiber
4" (10.2cm) Cerametallic WooferGehäusetyp
50 mm tiefe Metall-Rückwandbox mit ABS-Schallwand mit Öffnung Produktdurchmesser
24,13 cmAusschnittmaße
21 cmEinbautiefe
48 mmInstallationskit
IK-650-C (separat bestellbar)Produktgewicht
3,36 kg
The Klipsch R-100SW subwoofer delivers incredibly deep bass via a 10" front-firing driver featuring a spun-copper IMG woofer and all digital amplifier.
10" Front-Firing Spun-Copper IMG Woofer
All-Digital Amplifier with 300 Watts Peak Power
Volume, Low Pass Crossover and Phase Control
Line Level/LFE RCA Inputs for Maximum Receiver Compatibility
Dimensions: 14.5" x 12.5" x 16.4"
Black Textured Wood Grain Vinyl
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
All-Digital Amplifier
The built-in, all-digital amplifier of the R-100SW subwoofer delivers ample power with high efficiency and true-to-source accuracy reproduction - thus providing maximum output, detail, and power that fills your home.
CUSTOMIZED BASS
The R-100SW subwoofer gain, low pass crossover and phase controls ensure the low-frequency tones blend with other speakers and establish the ideal level of bass for your room.
Line level/LFE RCA inputs provide maximum compatibility with standard home theater receivers.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
Sleek Design
Exposed fasteners, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give the R-100SW subwoofer a polished, modern appearance that perfectly accents our entire Reference series speakers.
SPECIFICATIONS
FREQUENCY RESPONSE32Hz - 120Hz +/- 3dB
MAXIMUM ACOUSTIC OUTPUT112 dB
AMPLIFIERAll Digital
AMPLIFIER POWER (CONT/PEAK)150W/300W
AMPLIFIER FEATURESVolume, Low-pass, 0/180 phase, Auto Power On
DRIVER COMPONENTS10" high excursion spun-copper IMG woofer
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEBass-Reflex via rear-firing port
INPUTSLine level/LFE RCA jacks
HEIGHT INCHES (MM)14.5" (368 mm)
WIDTH INCHES (MM)12.5" (318 mm)
DEPTH INCHES (MM)16.4" (417 mm)
PRODUCT WEIGHT LBS (KG)24 lbs (10.9 kg)
FINISHESBlack Textured Wood Grain Vinyl
Der Reference Premiere On-Wall Serie bringt den dynamischen, detaillierten und kraftvollen Klang der Reference-Box-Lautsprecher in einer schlanken, wandmontierbaren Lösung. Mit dem Cerametallic™ Tieftöner und dem Titanium Dome Linearen Travel Suspension (LTS) Hochtöner, können die Wandlautsprecher flexible als Front LCR oder Side / Rear Surround platziert werden.
Technische Daten:
Frequenzbereich69Hz-25kHz +/- 3dB
Empfindlichkeit91dB @ 2.83V / 1m
Belastbartkeit50W / 200W
Nominal Impedanz 8 Ohm
Übergangs Frequenz2200Hz
Hochtontreiber1" (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn
Tieftontreiber3.5" (8.89 cm) Cerametallic Cone Woofers
GehäuseartBassreflex
Abmessungen (B x H x T)15,24cm x 30,48cm x 6,10cm
Gewicht1,7 kg
Kompakter Subwoofer mit großem Klang zum Bestpreis!
Klipsch-typische Tiefton-Power aus wohnraumfreundlichen Abmessungen bietet der Subwoofer R-8S. Durch seine kompakten Abmessungen kann er fast überall platziert werden, um wirklich realistischen Bassbereich zu erzielen. Stecken Sie einfach den R-8SW in eine Steckdose und verbinden ihn mit dem Vorverstärkerausgang oder Subwooferausgang / LFE ihres Verstärkers oder Heimkinoreceivers. Das Klang-Upgrade von Stereosound oder Heimkino war noch nie so einfach.
High Power All-Digital Amplifier mit 150 Watt Spitze
Verwindungssteife & leichte 8" Copper Spun IMG Membran
Bassreflexkanal an der Unterseite
Dual RCA Line Input / LFE
Powerschalter: On / Auto / Off Switch
Pegelregler und Phasenschalter (0°/180°)
Low Pass Filter (40 - 125 variabel)
Netzkabel abnehmbar
Polymer Vinyl Oberfläche (schwarz)
Technische Daten
Verstärkerleistung50 Watt Ausgangsleistung / 150 Watt Spitze
Frequenzbereich38 Hz - 120Hz (- 3dB)
Max. Schallpegel108 dB
Eingängeanalog: Line & LFE (RCA)
Chassis1x 8" (200mm) Woofer
Abmessungen (B x H x T)298,5 x 336,6 x 298,5mm
Gewicht6,8kg
ZubehörNetzkabel
The R-41M bookshelf speakers offer maximum versatility without sacrificing performance from a small, yet elegant audio solution. Designed as main speakers for a compact living space or surround sound to support a Reference speaker system, the R-41M bookshelf speakers are the ideal choice for your home theater system.
1" Aluminum LTS tweeter
90x90 Square Tractrix Horn
4" Spun-Copper IMG Woofers
Bass-Reflex via Rear-Firing Port
Strong, Flexible Removable Magnetic Grille
Abmessungen: 11,3" x 5,75" x 7,9"
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the R-41M high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
REAR TRACTRIX® PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
SPECIFICATIONS
FREQUENCY RESPONSE68Hz - 21kHz +/- 3dB
SENSITIVITY90 dB @ 2.83V/1M
POWER HANDLING (CONT/PEAK)50W/200W
NOMINAL IMPEDANCE8 ohms Compatible
CROSSOVER FREQUENCY1.730 Hz
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVER Single 4" spun-copper IMG woofer
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEBass-Reflex via rear-firing Tractrix ® ports
INPUTSSingle Gold Plated Binding Posts
HEIGHT INCHES (MM)11.3" (287 mm)
WIDTH INCHES (MM)5.75" (146 mm)
DEPTH INCHES (MM)7.9" (200 mm)
PRODUCT WEIGHT LBS (KG)7 lbs (3.2 kg)
FINISHESBlack Textured Wood Grain Vinyl
INCLUDED ACCESSORIESRubber Feet (4)
The Reference R-620F floorstanding speaker is packed with best-in-class audio technology for an incredible listening experience that is built on over 70 years of Klipsch acoustic experience.
1" Aluminum LTS tweeter
90x90 Square Tractrix Horn
Dual 6.5" Spun-Copper IMG Woofers
Bass-Reflex via Rear-Firing Tractrix® ports
Strong, Flexible Removable Magnetic Grille
Abmessungen: 40" x 9,4" x 15,2"
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the R-620F high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
REAR TRACTRIX® PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
SPECIFICATIONS
FREQUENCY RESPONSE38Hz - 21kHz +/- 3dB
SENSITIVITY96 dB @ 2.83V/1M
POWER HANDLING (CONT/PEAK)150W/600W
NOMINAL IMPEDANCE8 ohms Compatible
CROSSOVER FREQUENCY2000 Hz
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVER Dual 6.5" spun-copper IMG woofers
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEBass-Reflex via rear-firing Tractrix ® ports
INPUTSSingle Gold Plated Binding Posts
HEIGHT INCHES (MM)40" (1017 mm)
WIDTH INCHES (MM)9.4" (240 mm)
DEPTH INCHES (MM)15.2" (386 mm)
PRODUCT WEIGHT LBS (KG)41 lbs (18.6 kg)
FINISHESBlack Textured Wood Grain Vinyl
INCLUDED ACCESSORIESInjection molded feet & screws

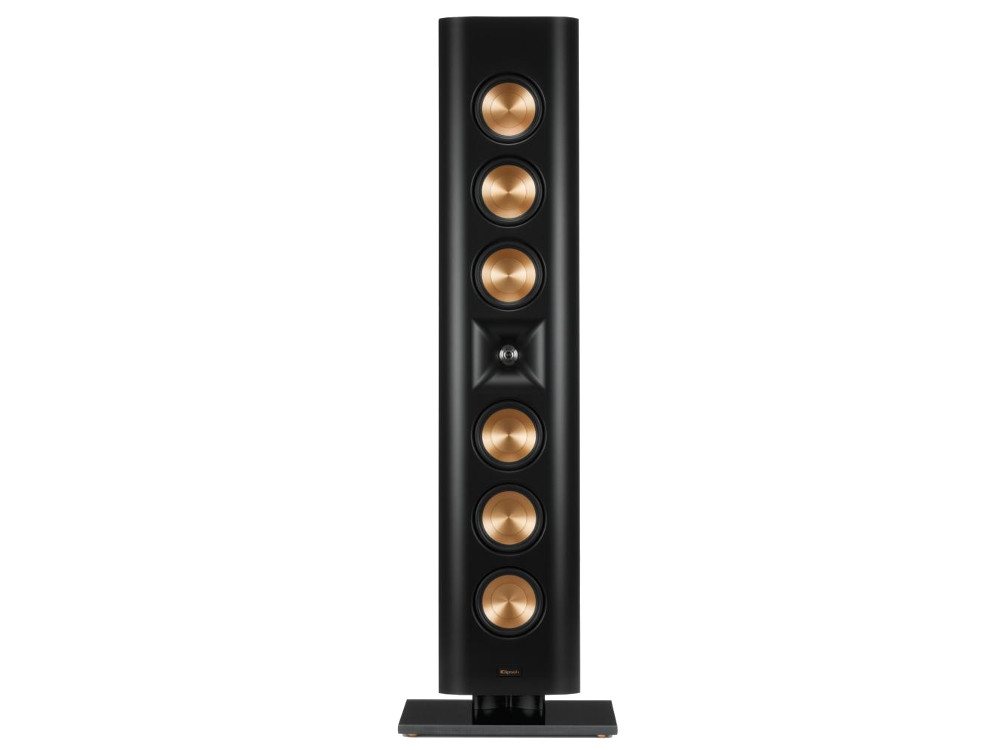

Der Reference Premiere On-Wall Serie bringt den dynamischen, detaillierten und kraftvollen Klang der Reference-Box-Lautsprecher in einer schlanken, wandmontierbaren Lösung. Mit dem Cerametallic™ Tieftöner und dem Titanium Dome Linearen Travel Suspension (LTS) Hochtöner, können die Wandlautsprecher flexible als Front LCR oder Side / Rear Surround platziert werden.
Technische Daten:
Frequency Response55Hz-25kHz +/- 3dB
Sensitivity94dB @ 2.83V / 1m
Power Handling75W / 300W
Nominal Impedance 8 Ohms Compatible
Crossover Frequency2200Hz
High Frequency Driver1" (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn
Low Frequency DriverDual 3.5" (8.89 cm) Cerametallic Cone Active Woofers Quad 3.5" (8.89 cm) Cerametallic Cone Passive Radiators
Enclosure TypeBass Reflex
Size H, W, D72.39 cm, 15.24 cm, 6.10 cm
Weight3,63 kg

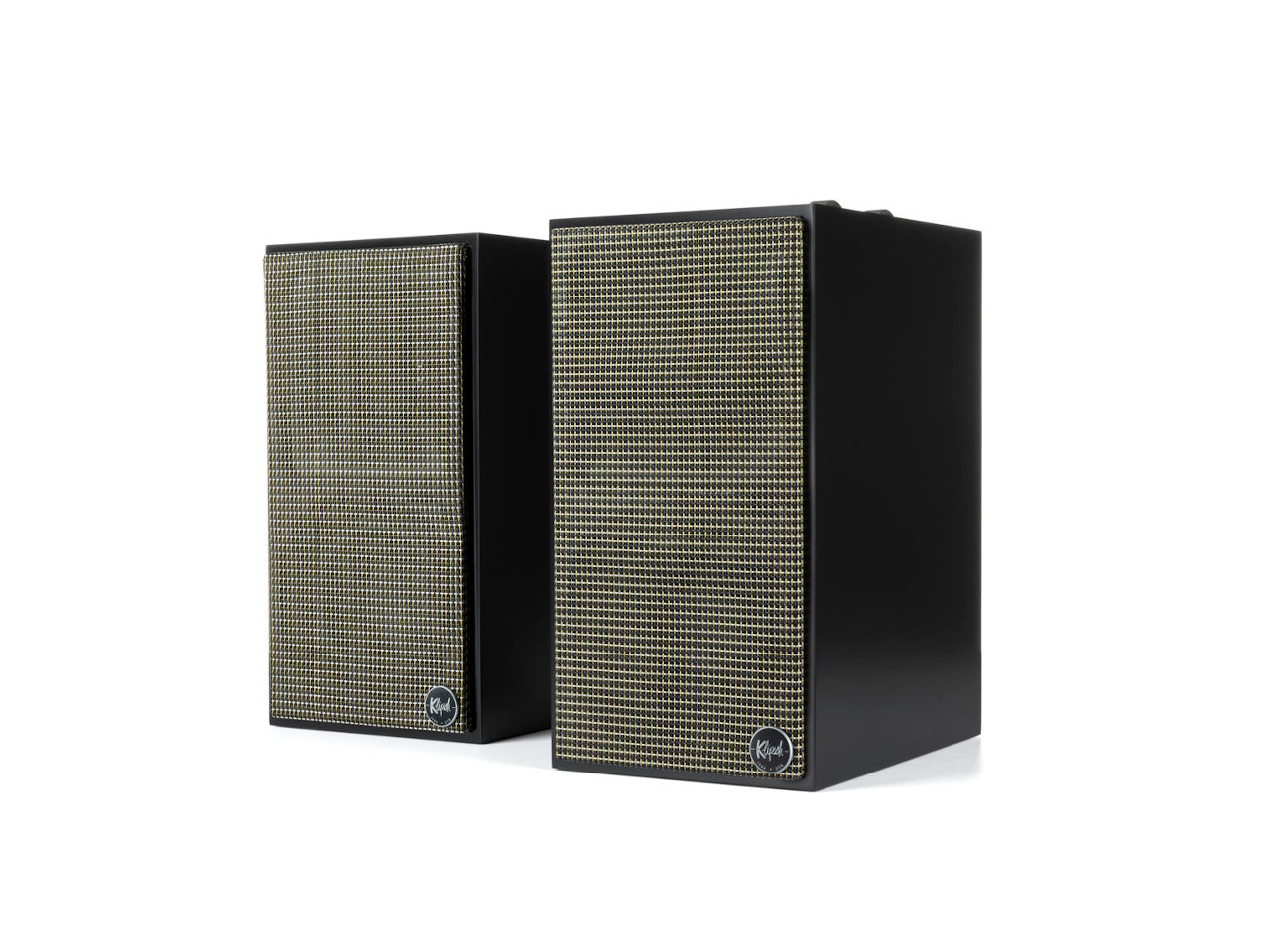

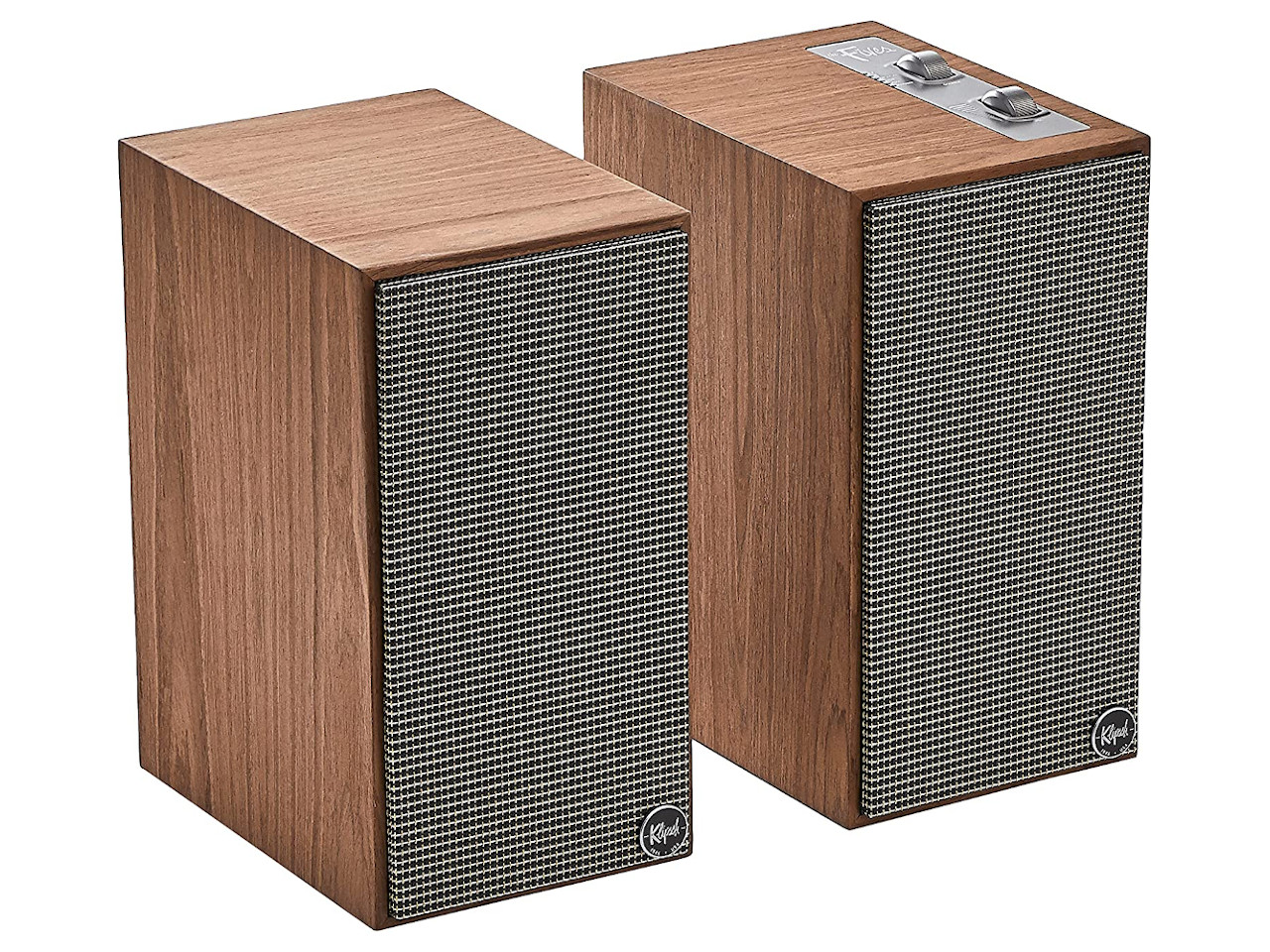

Genieße einen überlegenen Stereoklang von einem leistungsstarken und wunderschön gestalteten Aktiv-Monitor. Mit praktisch endlosen Verbindungsmöglichkeiten, einschließlich HDMI-ARC, bieten The Fives ein besseres Hörerlebnis als eine herkömmliche Soundbar mit der Gleichen einfachen Plug-and-Play-Einrichtung. Die preisgekrönte Akustik, der hochmoderne DSP, die Abstimmung diskreter linker und rechter Kanäle sowie abnehmbare Magnetgitter, mehrere Oberflächenoptionen und ein Subwoofer-Ausgang sind überzeugende Produktmerkmale.
Die Fives gehören zweifellos zu den vielseitigsten Lautsprechen der Welt.
WAHRE UNTERHALTUNG
Verbessere den Klang deines Fernsehgeräts mit The Fives 13 den benutzerfreundlichen, leistungsstarken HD-Lautsprechern, die direkt an dein Fernsehgerät angeschlossen werden 13 und praktisch jede andere Quelle.ECHTES HI-FI
Die Fives verfügen über eine preisgekrönte, proprietäre akustische horngeladene Technologie von Klipsch Reference, die über den zugehörigen linken und rechten Lautsprecher für eine große, breite Klangbühne sorgt. Die integrierte dynamische Bassentzerrung liefert kraftvolle Tiefen bei jeder Lautstärke. Die Fives verfügen außerdem über eine 192-kHz/24-Bit-Decodierung für die fehlerfreie Wiedergabe hochauflösender Audiospuren.MULTI-KONNEKTIVITÄT
The Fives ist der erste, erhältliche Aktiv-Monitor, der über den HDMI-ARC Eingang verfügt und so für ein echtes HiRes, 2-Kanal TV-Erlebnis sorgt. The Fives verfügen über einen Phono-Vorverstärker, Bluetooth®5 Schnittstelle, HDMI-ARC-, optischen digital-, Analog- und USB -Eingang sowie einen Subwoofer-Ausgang.
Technische Daten
FREQUENCY RESPONSE
50Hz - 25kHzDYNAMIC BASS EXTENSION
46Hz @ 35% VolumeMAX OUTPUT
109dB (1M Stereo Pair)TOTAL SYSTEM POWER
160W Total System Power (320W Peak)60W LF, 20W HFHIGH FREQUENCY DRIVER
1 1D (2.5cm) Titanium LTS vented tweeter with Tractrix® hornLOW FREQUENCY DRIVER
4.5 1D (11.43cm) high-excursion fiber-composite cone wooferENCLOSURE MATERIAL
MDF with genuine wood veneerENCLOSURE TYPE
Bass-reflex via rear-firing portINPUTS
22 HDMI-ARC with CEC 22 Bluetooth® wireless technology 22 Phono/Line analog (with switch and ground screw terminal) 22 3.5mm analog mini jack 22 USB digital 22 Optical digitalOUTPUTS
Single RCA line level output for connection to subwooferHEIGHT, WIDTH, DEPTH
304.8mm x 165.1mm x 234.95mmWEIGHT
Primary: 5.35kg - Secondary: 4.85kgVOLTAGE
100V-240V 50/60Hz internal power supply with region specific power cordsINCLUDED ACCESSORIES
22 Region-Specific power cord (2.0m) 22 Remote control (with 2 x AAA batteries) 22 4-conductor speaker cable (4m) 22 USB Type-B to USB Type-A cable (1.5m) 22 HDMI Cable (1.5m)

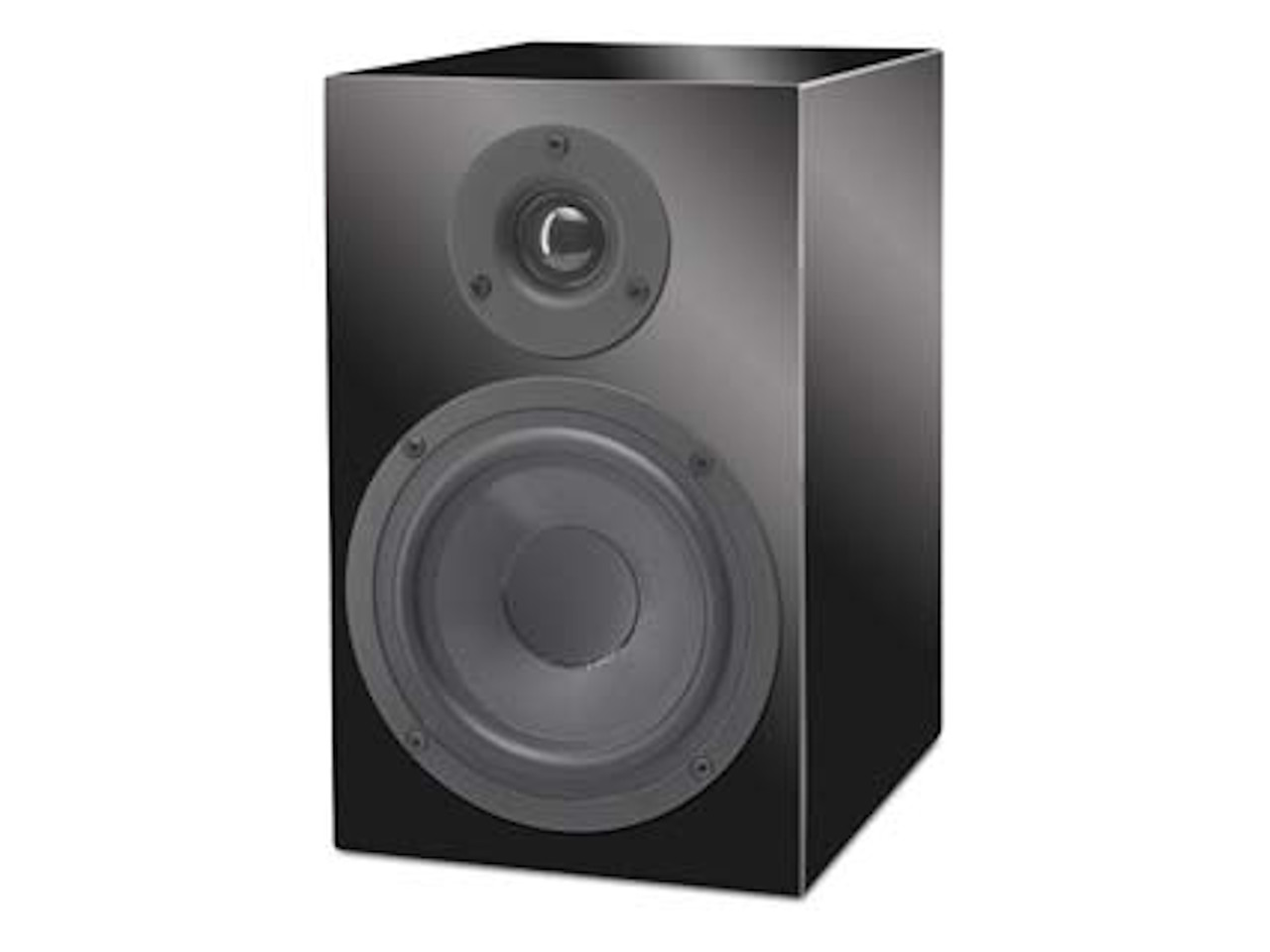

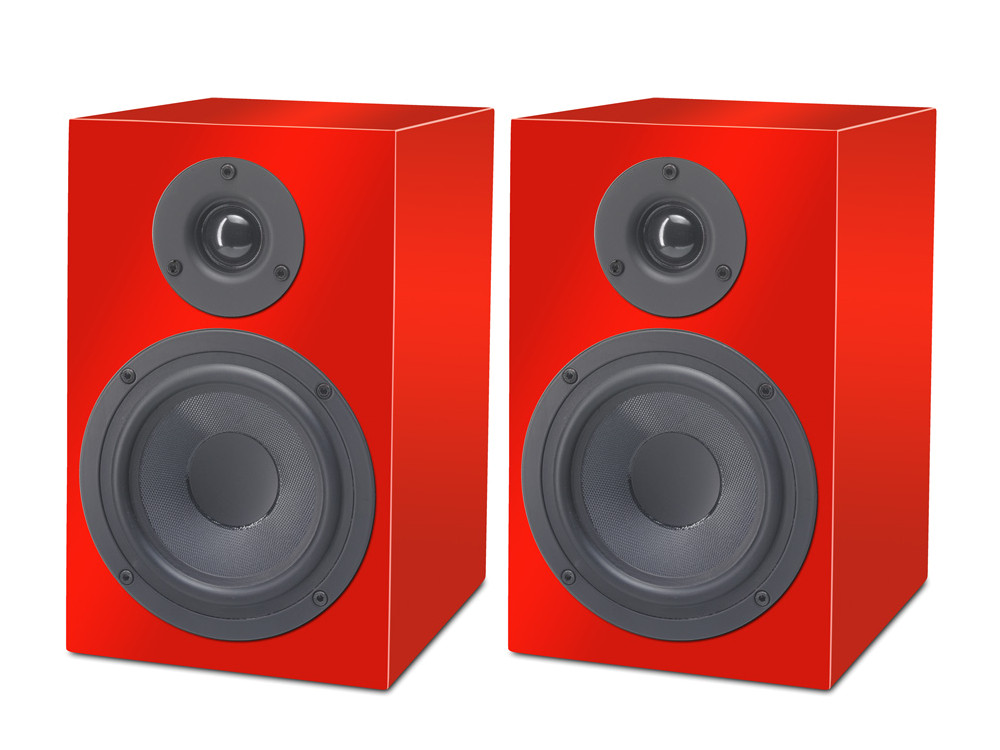

Die Pro-Ject Speaker Box ist eine Regalbox die nicht nur ausgezeichnet klingt, sondern mit ihrer hochglanz Oberfläche auch noch gut aussieht. Bei abgenommener Abdeckung stören keine Löcher der Abdeckungsbesfestigung. Diese wir magnetisch am Lautsprecher befestigt.
Fazit: Hochwertige Verarbeitung gepaart mit tollem Klang für den kleinen Geldbeutel!
Technische Daten
Oberfläche des Gehäuses glänzend schwarz. Schallwandabdeckung schwarzer StoffMagnetische Schirmung der Chassis macht ein Platzieren nahe am TV-Gerät möglichWandhalterung:inklusiveHochton-Chassis:25mm Ø Gewebe-KalotteTiefton-Chassis:130mm ØNennimpedanz:8 OhmWirkungsgrad:86 dB (1W/1m)Empfohlene Verstärkerleistung:10 bis 150 WattAbmessungen (B x H x T):160 x 255 x 210mmLieferumfang:1 Paar
The R-51PM powered speakers use a highly efficient, powerful yet minimalist design that engulfs listeners in their favorite movies and music. With a built-in amplifier, multitude of inputs and Bluetooth® connectivity, the R-51PM is the most versatile Stereo speaker system on the planet.
Features:
Built-in All-Digital Amplifier
1" Aluminum LTS tweeters
90x90 Square Tractrix Horns
Dual 5,25" Spun-Copper IMG Woofers
Bass-Reflex via Rear-Firing Port
Strong, Flexible Removable Magnetic Grille
Abmessungen: 13,3" x 7" x 8,5"No Receiver Required
Klipsch Reference powered speakers deliver room-filling sound without taking up much space thanks to a built-in amplifier that is custom-engineered for these high-performance speakers, maximizing output and sound quality.
With integrated phono pre-amp, Bluetooth® wireless technology, digital optical, analog RCA and USB inputs, you can finally say goodbye to your clunky A/V receiver.
Plays well with others
Whether you connecting to a turntable, television, computer, cell phone, whatever - these powered speakers work with anything.
Equipped with an integrated phono pre-amp, Bluetooth® wireless technology, digital optical, analog RCA and USB inputs, making these powered speakers your new best friend.
Dynamic Bass EQ
As the human ear perceives frequencies differently with variations in output, Klipsch Reference powered speakers will dynamically match the ear 19s ability to hear lower frequencies. Typically, only available with audio/video receivers, dynamic volume is a first for Klipsch powered monitors. What you get is powerful Bass whether the listening volume is low, cranked up or somewhere in between.
Custom-tuned amplification
Reference powered speakers leverage independent, ultra-low noise amplifiers that are custom designed to maximize system performance and eliminate the need for external amplification. Das bedeutet, dass die erstklassigen Ingenieure von Klipsch vollständige Kontrolle über den Signalpfad besitzen. We've tuned the components to be an absolute perfect match, making the system sound incredibly immersive and fills your room with incredible acoustics.
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the speaker high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
Linear travel suspension tweeter with KAPTON® suspension
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid 13 providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
Sleek Design
Exposed fasteners, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give these powered bookshelf speakers a polished, modern appearance.
Seamless Subwoofer Integration
The Reference powered speakers include a sub-out line that allow you to seamlessly add a Subwoofer to your Stereo system to enhance low frequencies even further.
SPECIFICATIONS
FREQUENCY RESPONSE
68Hz - 21kHzDYNAMIC BASS EXTENSION
49Hz @ 35% VolumeMAX OUTPUT
107.3 dBTOTAL SYSTEM POWER
120W Total System Power (140W Peak)
60W per channel cont. @ <%1 THD <%1 td < THD>
HIGH FREQUENCY DRIVER
1 1D (2.5cm) Aluminum diaphragm compression driver mated to 90° x 90° square Tractrix® hornLOW FREQUENCY DRIVER
5.25 1D (13.3cm) copper spun magnetically shielded IMG wooferENCLOSURE MATERIAL
MDF ENCLOSURE TYPE
Bass-reflex via rear-firing portINPUTS
Bluetooth® wireless technology
Phono/Line analog (with switch and ground screw terminal)
3.5mm analog mini jack
USB digital
Optical digital OUTPUTS
Single RCA line level output for connection to subwooferHEIGHT, WIDTH, DEPTH
13.3 1D (33.8 cm), 7 1D (17.78 cm), 9.12 1D (23.16 cm)WEIGHT
10.6 lbs (4.8 kg)FINISH
Black VOLTAGE
100V-240V 50/60Hz internal power supply with region specific power cordsINCLUDED ACCESSORIES
Remote control (with 2 x AAA batteries)
4M speaker wire with soldered tips
2M power cord (region specific)
2M USB Type A to Type B cable
Rubber feet

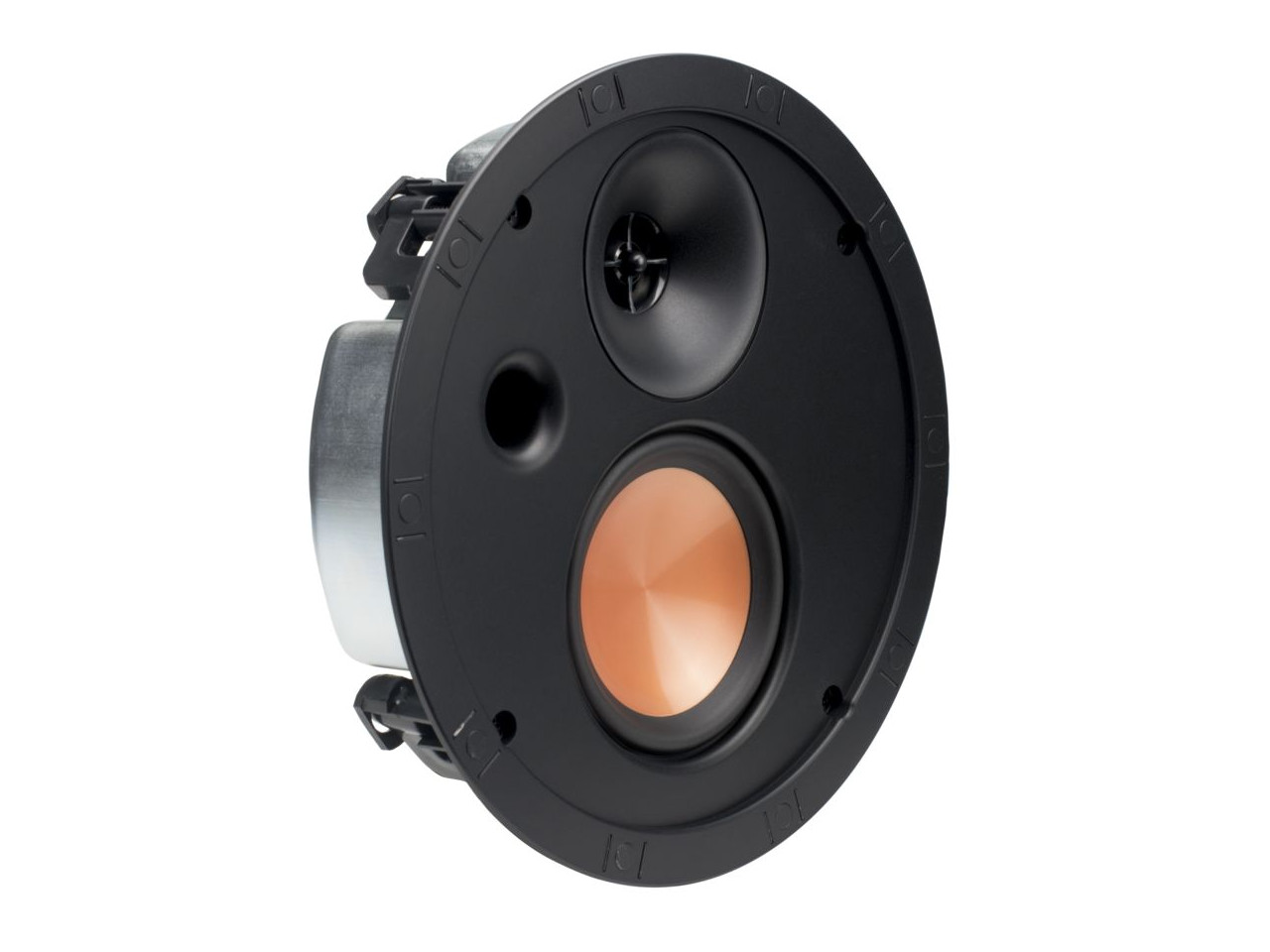

Zweiweg-Deckenlautsprecher mit geringer Einbautiefe
Der SLM-3400-C ist einer der kompaktesten Deckeneinbaulautsprecher auf dem Markt und verfügt über eine geringe Tiefe (50 mm) mit einer vollständig geschlossenen Backbox. Zusammen mit erstklassiger Akustik direkt aus der legendären Architekturserie Klipsch Reference 3000 bietet der SLM-3400-C Hochleistungsakustik in einem extra schlanken Paket 13 für großartigen Sound bei begrenztem Installationsraum.
Extrem geringe Tiefe von 50mm (1,97 Zoll) für Hochleistungs-Audio in begrenzten Deckenbereichen
Feuerschutz-Gehäuse bietet außergewöhnliche Bassleistung
Langhubiger IMG-Tieftöner 4 Zoll (10,16 cm) für beeindruckende Bassfrequenzen
Aluminium-Kalottenhochtöner 1 Zoll (2,54 cm) in Kombination mit einem runden Tractrix-Horn für einen detaillierten, dynamischen Hochtonbereich
Flacher, magnetischer, lackierbarer Stahl-Lautsprecher passt zu einem modernen Design
Abdeckgitter weiss je 1x rund und 1x eckig im Lieferumfang Technische Daten
Frequenzgang
92Hz - 20kHzBelastbarkeit
120 W SpitzeEmpfohlene Verstärkerleistung
50WEmpfindlichkeit
90dBNennimpedanz
4 OhmHochfrequenztreiber
1" (2,5 cm) Aluminiumkalotten-Hochtöner mit rundem Tractrix-HornNiederfrequenztreiber
4 1D (10,2 cm) IMG WooferGehäusetyp
50 mm tiefe Metall-Rückwandbox mit ABS-Schallwand mit Öffnung Produktdurchmesser
24,13 cmAusschnittmaße
21 cmEinbautiefe
48 mmInstallationskit
IK-650-C (Sold Separately)Produktgewicht
3,36 kg
Technische Daten
Frequenzbereich:32Hz-120Hz +/-3dMax. Pegel:112dBVerstärker:150W / 300W digitalLautsprecher:10" (25,4cm) IMG Front-Firing WooferGehäuse:MDFGehäuseart:BassreflexEingänge:Line/LFE RCAPhase:umschaltbar 0-180°Features:Volume, Lowpass, Phase, Auto PowerAbmessungen (B x H x T):317,5 x 355,6 x 398 mm
Standing at only 37" tall, yet able to produce deep Bass extension, The R-610F floorstanding speaker takes your movies and music to another level by delivering incredible sound from our signature Klipsch Horn-loaded tweeter and a spun-copper IMG woofer.
1" Aluminum LTS tweeter
90x90 Square Tractrix Horn
Single 6.5" Spun-Copper IMG Woofer
Bass-Reflex via Rear-Firing Tractrix® ports
Strong, Flexible Removable Magnetic Grille
Abmessungen: 37" x 9,4" x 15.1"
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the R-610F high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
REAR TRACTRIX® PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
SPECIFICATIONS
FREQUENCY RESPONSE45Hz - 21kHz +/- 3dB
SENSITIVITY94 dB @ 2.83V/1M
POWER HANDLING (CONT/PEAK)85W/340W
NOMINAL IMPEDANCE8 ohms Compatible
CROSSOVER FREQUENCY1.800 Hz
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVER Single 6.5" spun-copper IMG woofer
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEBass-Reflex via rear-firing Tractrix ® ports
INPUTSSingle Gold Plated Binding Posts
HEIGHT INCHES (MM)37" (940 mm)
WIDTH INCHES (MM)9.4" (240 mm)
DEPTH INCHES (MM)15.1" (384 mm)
PRODUCT WEIGHT LBS (KG)36 lbs (16.3 kg)
FINISHESBlack Textured Wood Grain Vinyl
INCLUDED ACCESSORIESInjection molded feet & screws
The R-41PM powered speakers are designed to connect to any virtually source without the need for an A/V receiver. At less than 10" tall, these powered speaker deliver room-filling sound and incredible acoustics without needing much space.
Built-in All-Digital Amplifier
1" Aluminum LTS tweeter
90x90 Square Tractrix Horn
4" Spun-Copper IMG Woofers
Bass-Reflex via Rear-Firing Port
Strong, Flexible Removable Magnetic Grille
Abmessungen: 9.75" x 5.88" x 7.5"
No Receiver Required
Klipsch Reference powered speakers deliver room-filling sound without taking up much space thanks to a built-in amplifier that is custom-engineered for these high-performance speakers, maximizing output and sound quality.
With integrated phono pre-amp, Bluetooth® wireless technology, digital optical, analog RCA and USB inputs, you can finally say goodbye to your clunky A/V receiver.
PLAYS WELL WITH OTHERS
Whether you connecting to a turntable, television, computer, cell phone, whatever - these powered speakers work with anything.
Equipped with an integrated phono pre-amp, Bluetooth® wireless technology, digital optical, analog RCA and USB inputs, making these powered speakers your new best friend.
Dynamic Bass EQ
As the human ear perceives frequencies differently with variations in output, Klipsch Reference powered speakers will dynamically match the ear 19s ability to hear lower frequencies. Typically, only available with audio/video receivers, dynamic volume is a first for Klipsch powered monitors. What you get is powerful bass whether the listening volume is low, cranked up or somewhere in between.
CUSTOM-TUNED AMPLIFICATION
Reference powered speakers leverage independent, ultra-low noise amplifiers that are custom designed to maximize system performance and eliminate the need for external amplification. That means that world-class Klipsch engineers have full control of the signal path. We've tuned the components to be an absolute perfect match, making the system sound incredibly immersive and fills your room with incredible acoustics.
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the R-41M high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
REAR TRACTRIX® PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
Seamless Subwoofer Integration
The Reference powered speakers include a sub-out line that allow you to seamlessly add a subwoofer to your stereo system to enhance low frequencies even further.
SPECIFICATIONS
FREQUENCY RESPONSE76Hz - 21kHz
DYNAMIC BASS EXTENSION66Hz @ 35% Volume
MAX OUTPUT105.5dB
TOTAL SYSTEM POWER70W Total System Power (140W Peak)
35W per channel cont. @ <%1 THD
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVER Single 4" spun-copper IMG woofer
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEBass-Reflex via rear-firing Tractrix ® ports
INPUTS Bluetooth® wireless technology
Phono/Line analog (with switch and ground screw terminal)
3.5mm analog mini jack
USB digital
Optical digital
OUTPUTSSingle RCA line level output for connection to subwoofer
HEIGHT, WIDTH, DEPTH 9.75 1D (24.8cm), 5.88 1D (14.9cm), 7.5 1D (19.1cm)
WEIGHT18.7lbs (8.5kg)
FINISHBlack
VOLTAGE100V-240V 50/60Hz internal power supply with region specific
power cords
INCLUDED ACCESSORIES Remote control (with 2 x AAA batteries)
4M speaker wire with soldered tips
2M power cord (region specific)
2M USB Type A to Type B cable
Rubber feet
Die Pro-Ject Speaker Box ist eine Regalbox die nicht nur ausgezeichnet klingt, sondern mit ihrer hochglanz Oberfläche auch noch gut aussieht. Bei abgenommener Abdeckung stören keine Löcher der Abdeckungsbesfestigung. Diese wir magnetisch am Lautsprecher befestigt.
Fazit: Hochwertige Verarbeitung gepaart mit tollem Klang für den kleinen Geldbeutel!
Technische Daten
Oberfläche des Gehäuses glänzend schwarz. Schallwandabdeckung schwarzer StoffMagnetische Schirmung der Chassis macht ein Platzieren nahe am TV-Gerät möglichWandhalterung:inklusiveHochton-Chassis:25mm Ø Gewebe-KalotteTiefton-Chassis:130mm ØNennimpedanz:8 OhmWirkungsgrad:86 dB (1W/1m)Empfohlene Verstärkerleistung:10 bis 150 WattAbmessungen (B x H x T):160 x 255 x 210mmLieferumfang:1 Paar

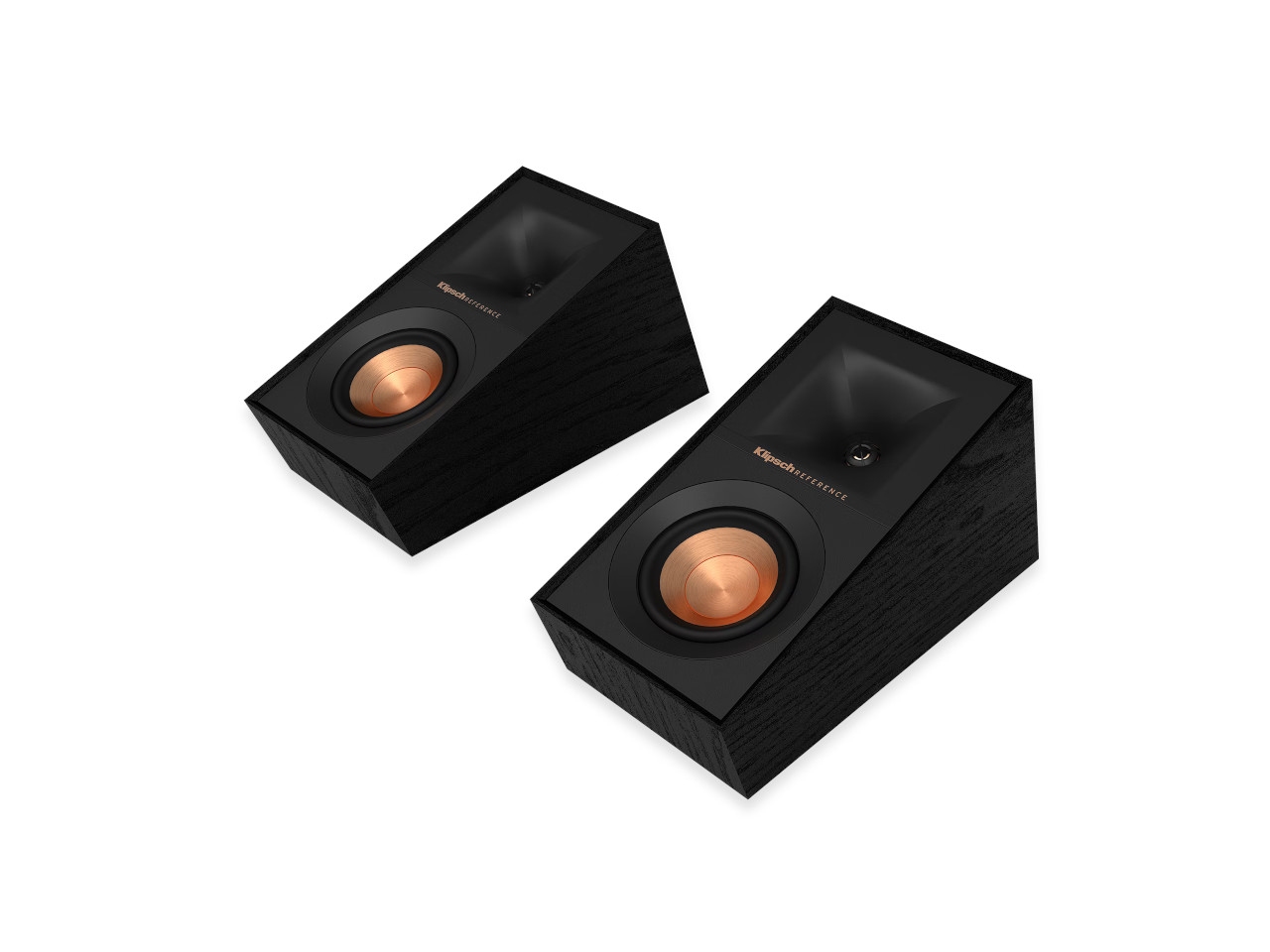

Enhance your home theater system with the incredible, overhead sound effects of the Klipsch R-41SA Dolby Atmos® speaker. By leveraging Klipsch proprietary Horn-loaded controlled directivity technology, the R-41SA bounces sound off the ceiling to create an astonishing, immersive listening experience. The R-41SA can also be utilized as an on-wall elevation or surround speaker via its easy-to-use keyhole mounting system - delivering the perfect angle for enhanced sound effects.
Dolby Atmos® Overhead Sound Effects
Keyhole Mounting for On-Wall Elevation/Surround Sound Use
1" Linear Travel Suspension Aluminum Tweeters
4" Spun-Copper IMG Woofers
Bass-Reflex via Rear-Firing Port
Strong, Flexible Removable Magnetic Grille
Abmessungen: 7" x 5,75" x 13"
Dolby Atmos
Einfach gesagt ist Dolby Atmos® der größte Fortschritt im Heimkino- und Heimaudiobereich seit der Einführung von Surround-Klang. The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room - making you feel like you're truly in the middle of the action.
ELEVATE AND SURROUND
In additional to delivering overhead sound effects as a Dolby Atmos speaker topper, The R-41SA is designed to be wall-mounted as a front, rear or side elevation speaker - or as a versatile side or rear surround sound speaker.
The keyhold mounting system makes it easy to add these incredible sound effects to your home theater system for a true cinema-grade listening experience.
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the R-41M high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
REAR TRACTRIX® PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
SPECIFICATIONS
FREQUENCY RESPONSEConforms to Dolby Atmos Specifications
SENSITIVITYConforms to Dolby Atmos Specifications
POWER HANDLING (CONT/PEAK)50W/100W
NOMINAL IMPEDANCE8 ohms Compatible
CROSSOVER FREQUENCY4,237 Hz
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVER Single 4" spun-copper IMG woofer
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEAcoustic Suspension
INPUTSSingle Gold Plated Binding Posts
HEIGHT INCHES (MM)7" (180 mm)
WIDTH INCHES (MM)5.75" (146 mm)
DEPTH INCHES (MM)13" (331 mm)
PRODUCT WEIGHT LBS (KG)7 lbs (3.2 kg)
FINISHESBlack Textured Wood Grain Vinyl

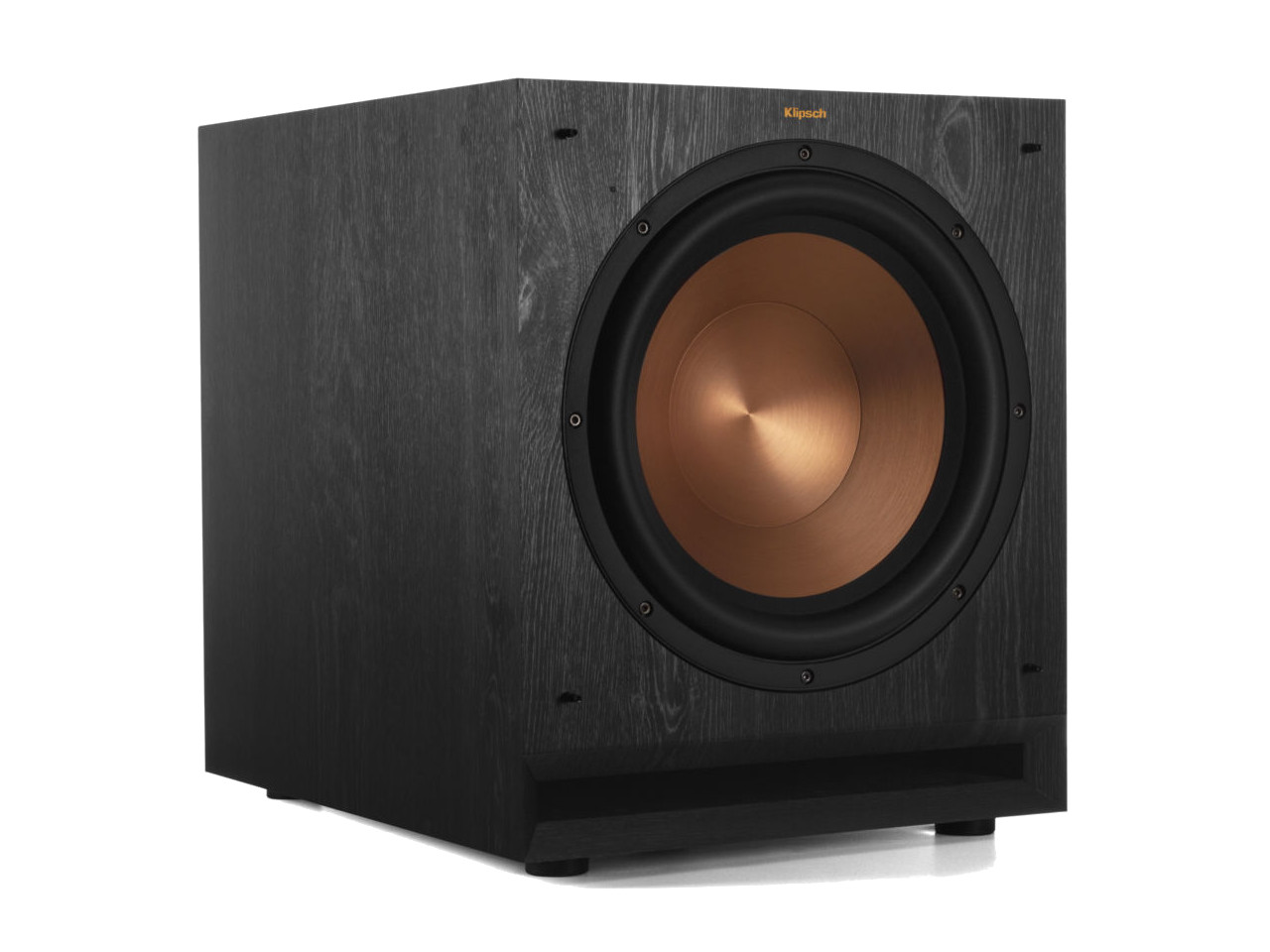

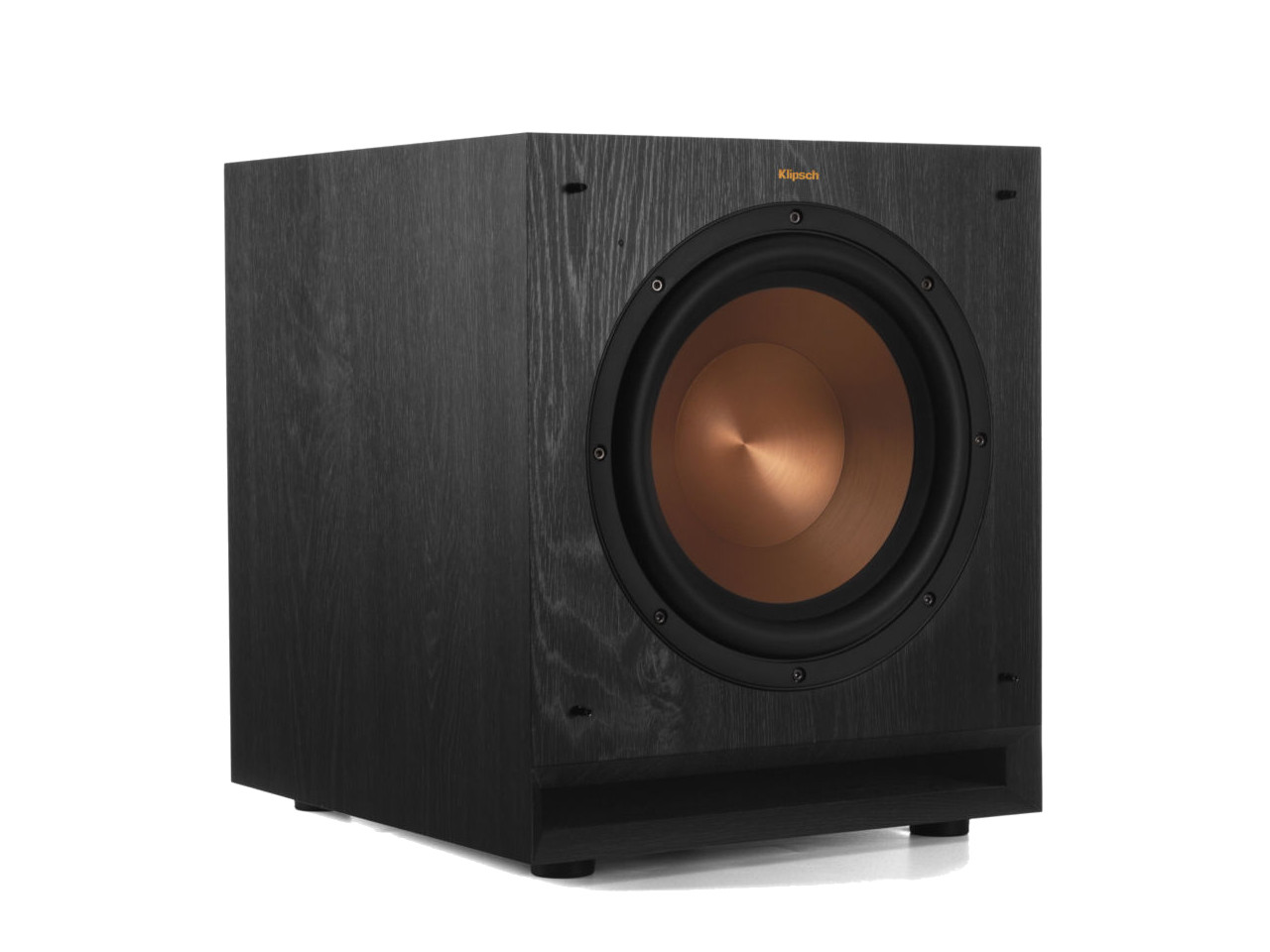

A STEP-UP FROM OUR REFERENCE SERIES SUBWOOFERS, THE SPL SERIES HAVE BEST-IN-CLASS MAXIMUM OUTPUT LEVELS MAKING THEM HIGH-PERFORMANCE SUBWOOFERS AT AFFORDABLE PRICES.
SPECIFICATIONS
FREQUENCY RESPONSE
24Hz - 125kHz +/- 3dB SENSITIVITY
118 dB @ 2.83V/1M POWER HANDLING (CONT/PEAK)
300W/600W Woofer
12" Long-Throw Cerametallic ENCLOSURE MATERIAL
MDF ENCLOSURE TYPE
Bass Reflex via Front-Firing Slot Port INPUTS
Dual RCA/LFE Line In, WA-2 Wireless Port HEIGHT INCHES (MM)
17-3/4" (451mm) WIDTH INCHES (MM)
14-11/16" (374mm) DEPTH INCHES (MM)
19-7/8" (506mm) PRODUCT WEIGHT LBS (KG)
45 lbs (20.4kg) FINISHES
Ebony Vinyl

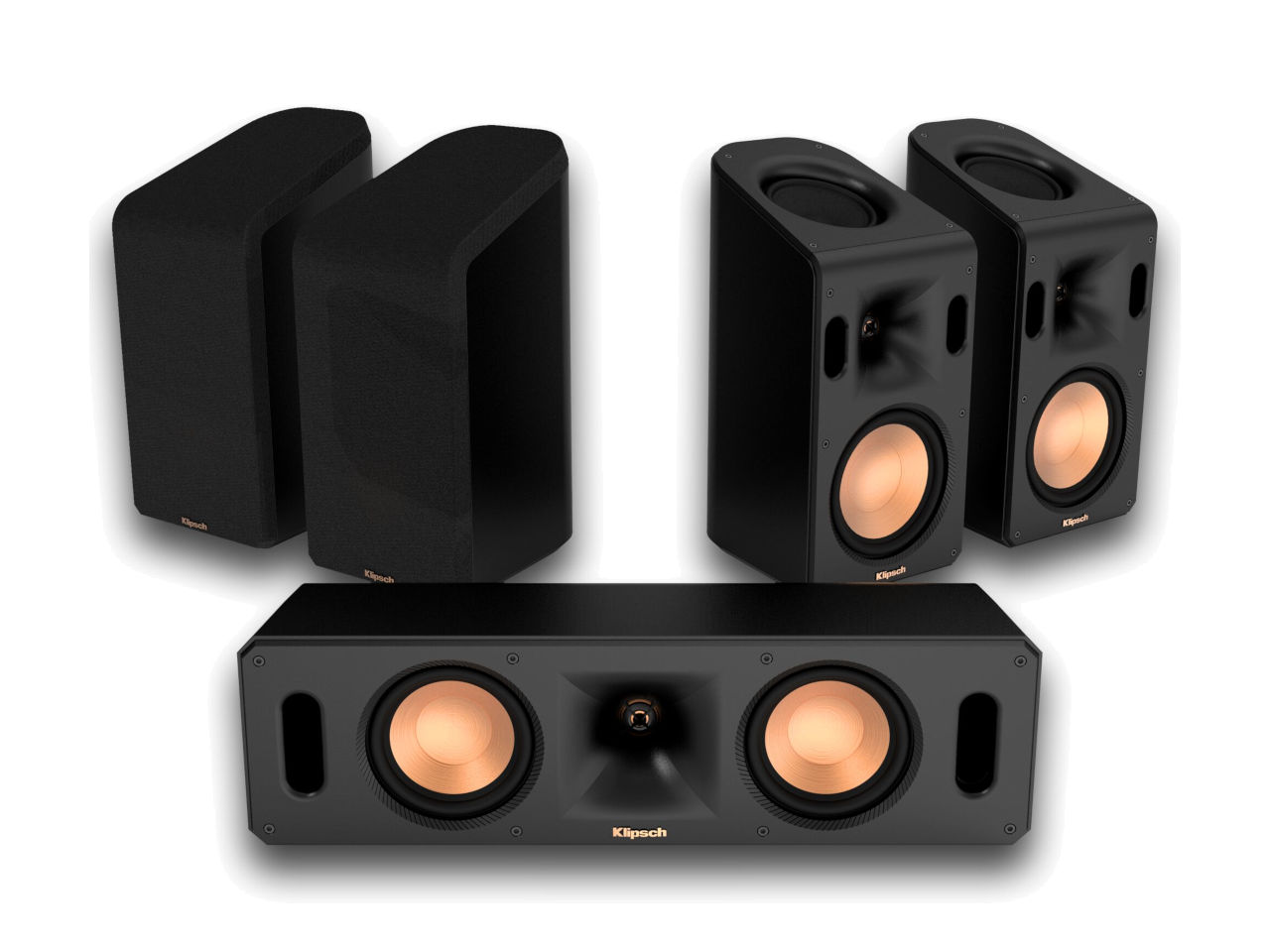

5.0 PASSIVE SPEAKER SYSTEM
Wir haben die hochwertigen Materialien und die akustische Technologie unserer begehrten Reference-Serie verwendet und ein wunderschönes 5.0-Surround-Soundsystem entwickelt, das mit Ihrem bevorzugten AV-Receiver kombiniert werden kann. Das 5.0 Reference Theatre Pack bringt den Klipsch-Filmklang mit unglaublich geringem Platzbedarf in Ihr Zuhause
FEATURES
Flexible System Placement
Cinematic Acoustics
IMG-Tieftöner aus gesponnenem Kupfer
Linear Travel Suspension Horn-Loaded TweetersSPECIFICATIONS
FREQUENCY RESPONSE
110Hz - 23kHz +/- 3dBNOMINAL IMPEDANCE
8 ohms compatibleSENSITIVITY
Satellite 91dB @ 2.83 volts / 1meter
Center: 94dB @ 2.83 volts / 1 meterPOWER HANDLING
Satellite: 50 watts (200 watts peak)
Center: 75 watts (300 watts peak)HIGH FREQUENCY DRIVER
Satellite & Center: 3/4 1D (1.9 cm) aluminum diaphragm compression driver mated to 90° x 90° Tractrix® hornLOW FREQUENCY DRIVER
Satellite: 3.5 1D (8.9 cm) copper IMG wooferCenter: Dual 3.5 1D (8.9 cm) copper IMG wooferDIMENSIONS
Satellite: 7.75 1D H (19.7cm) x 4.38 1D W (11.1cm) x 5.37 1D D (13.7cm) Center: 4.38 1D H (11.1cm) x 10.75 1D W (27.3cm) x 5.37 1DD (13.7cm)WEIGHT
Satellite: 3 Ibs (1.4kg)Center: 5 Ibs (2.3kg)MOUNTING
Satellite: Keyhole and 1/4 1D x 20 threaded insertCenter: Dual Keyhole with dual 1/4 1D x 20 threaded insertSPEAKER WIRE
14 1318 gauge compatible

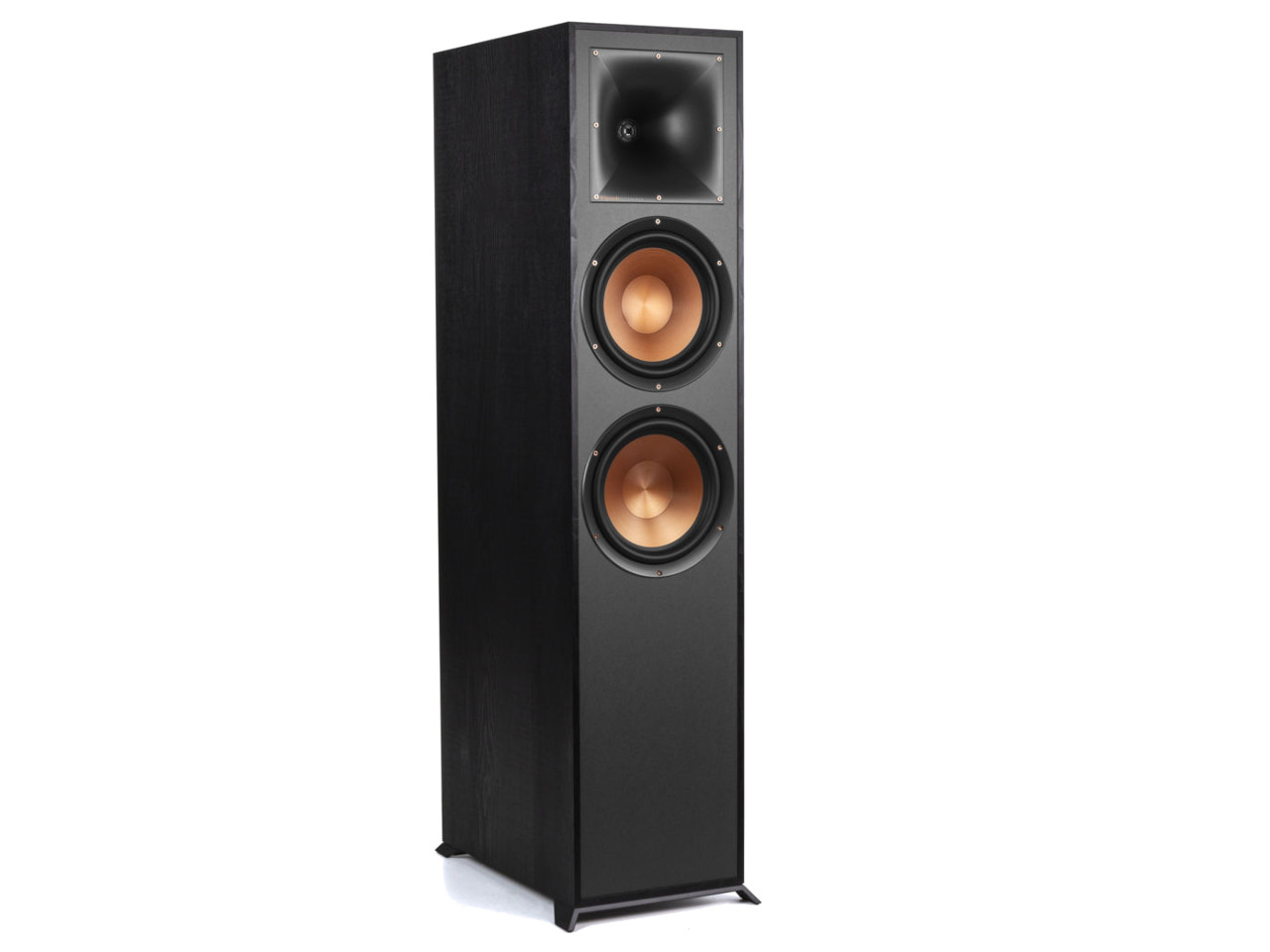

The Klipsch R-820F floorstanding speaker fills your room with amazing detail and clarity. Leveraging our proprietary horn-loaded technology and featuring dual 8" spun-copper IMG woofers, the R-820F delivers lifelike acoustics that bring your music and movies to life.
1" Aluminum LTS tweeter
90x90 Square Tractrix Horn
Dual 8" Spun-Copper IMG Woofers
Bass-Reflex via Rear-Firing Tractrix® ports
Strong, Flexible Removable Magnetic Grille
Abmessungen: 43" x 10,9" x 17,5"
Tractrix® Horn Technology
Klipsch exclusive 90x90º Tractrix® Horn technology ensures that the R-820F high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.
LINEAR TRAVEL SUSPENSION TWEETER
Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion. In Kombination mit dem Tractrix horngeladenen LTS Hochtöner liefert er klassenbeste Lautsprechereffizienz.
REAR TRACTRIX® PORT
The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
SPECIFICATIONS
FREQUENCY RESPONSE35Hz - 21kHz +/- 3dB
SENSITIVITY97 dB @ 2.83V/1M
POWER HANDLING (CONT/PEAK)150W/600W
NOMINAL IMPEDANCE8 ohms Compatible
CROSSOVER FREQUENCY1,700 Hz
HIGH FREQUENCY DRIVER1" Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix ® Horn
LOW FREQUENCY DRIVER Dual 8" spun-copper IMG woofers
ENCLOSURE MATERIALMDF
ENCLOSURE TYPEBass-Reflex via rear-firing Tractrix ® ports
INPUTSSingle Gold Plated Binding Posts
HEIGHT INCHES (MM)43" (1093 mm)
WIDTH INCHES (MM)10.9" (277 mm)
DEPTH INCHES (MM)17.5" (443 mm)
PRODUCT WEIGHT LBS (KG)54 lbs (24.5 kg)
FINISHESBlack Textured Wood Grain Vinyl
INCLUDED ACCESSORIESInjection molded feet & screws
Genieße einen überlegenen Stereoklang von einem leistungsstarken und wunderschön gestalteten Aktiv-Monitor. Mit praktisch endlosen Verbindungsmöglichkeiten, einschließlich HDMI-ARC, bieten The Fives ein besseres Hörerlebnis als eine herkömmliche Soundbar mit der Gleichen einfachen Plug-and-Play-Einrichtung. Die preisgekrönte Akustik, der hochmoderne DSP, die Abstimmung diskreter linker und rechter Kanäle sowie abnehmbare Magnetgitter, mehrere Oberflächenoptionen und ein Subwoofer-Ausgang sind überzeugende Produktmerkmale.
Die Fives gehören zweifellos zu den vielseitigsten Lautsprechen der Welt.
WAHRE UNTERHALTUNG
Verbessere den Klang deines Fernsehgeräts mit The Fives 13 den benutzerfreundlichen, leistungsstarken HD-Lautsprechern, die direkt an dein Fernsehgerät angeschlossen werden 13 und praktisch jede andere Quelle.ECHTES HI-FI
Die Fives verfügen über eine preisgekrönte, proprietäre akustische horngeladene Technologie von Klipsch Reference, die über den zugehörigen linken und rechten Lautsprecher für eine große, breite Klangbühne sorgt. Die integrierte dynamische Bassentzerrung liefert kraftvolle Tiefen bei jeder Lautstärke. Die Fives verfügen außerdem über eine 192-kHz/24-Bit-Decodierung für die fehlerfreie Wiedergabe hochauflösender Audiospuren.MULTI-KONNEKTIVITÄT
The Fives ist der erste, erhältliche Aktiv-Monitor, der über den HDMI-ARC Eingang verfügt und so für ein echtes HiRes, 2-Kanal TV-Erlebnis sorgt. The Fives verfügen über einen Phono-Vorverstärker, Bluetooth®5 Schnittstelle, HDMI-ARC-, optischen digital-, Analog- und USB -Eingang sowie einen Subwoofer-Ausgang.
Technische Daten
FREQUENCY RESPONSE
50Hz - 25kHzDYNAMIC BASS EXTENSION
46Hz @ 35% VolumeMAX OUTPUT
109dB (1M Stereo Pair)TOTAL SYSTEM POWER
160W Total System Power (320W Peak)60W LF, 20W HFHIGH FREQUENCY DRIVER
1 1D (2.5cm) Titanium LTS vented tweeter with Tractrix® hornLOW FREQUENCY DRIVER
4.5 1D (11.43cm) high-excursion fiber-composite cone wooferENCLOSURE MATERIAL
MDF with genuine wood veneerENCLOSURE TYPE
Bass-reflex via rear-firing portINPUTS
22 HDMI-ARC with CEC 22 Bluetooth® wireless technology 22 Phono/Line analog (with switch and ground screw terminal) 22 3.5mm analog mini jack 22 USB digital 22 Optical digitalOUTPUTS
Single RCA line level output for connection to subwooferHEIGHT, WIDTH, DEPTH
304.8mm x 165.1mm x 234.95mmWEIGHT
Primary: 5.35kg - Secondary: 4.85kgVOLTAGE
100V-240V 50/60Hz internal power supply with region specific power cordsINCLUDED ACCESSORIES
22 Region-Specific power cord (2.0m) 22 Remote control (with 2 x AAA batteries) 22 4-conductor speaker cable (4m) 22 USB Type-B to USB Type-A cable (1.5m) 22 HDMI Cable (1.5m)

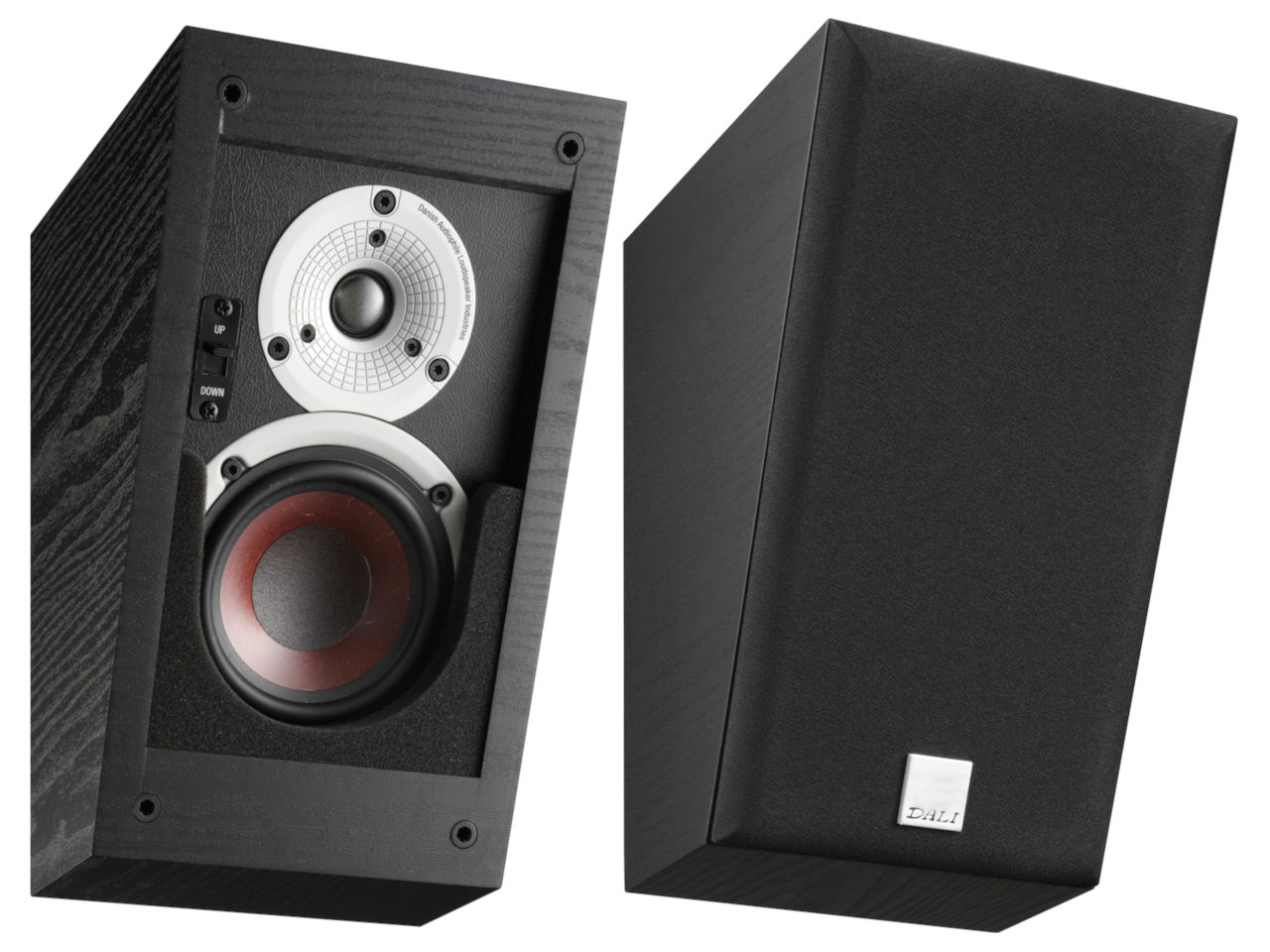

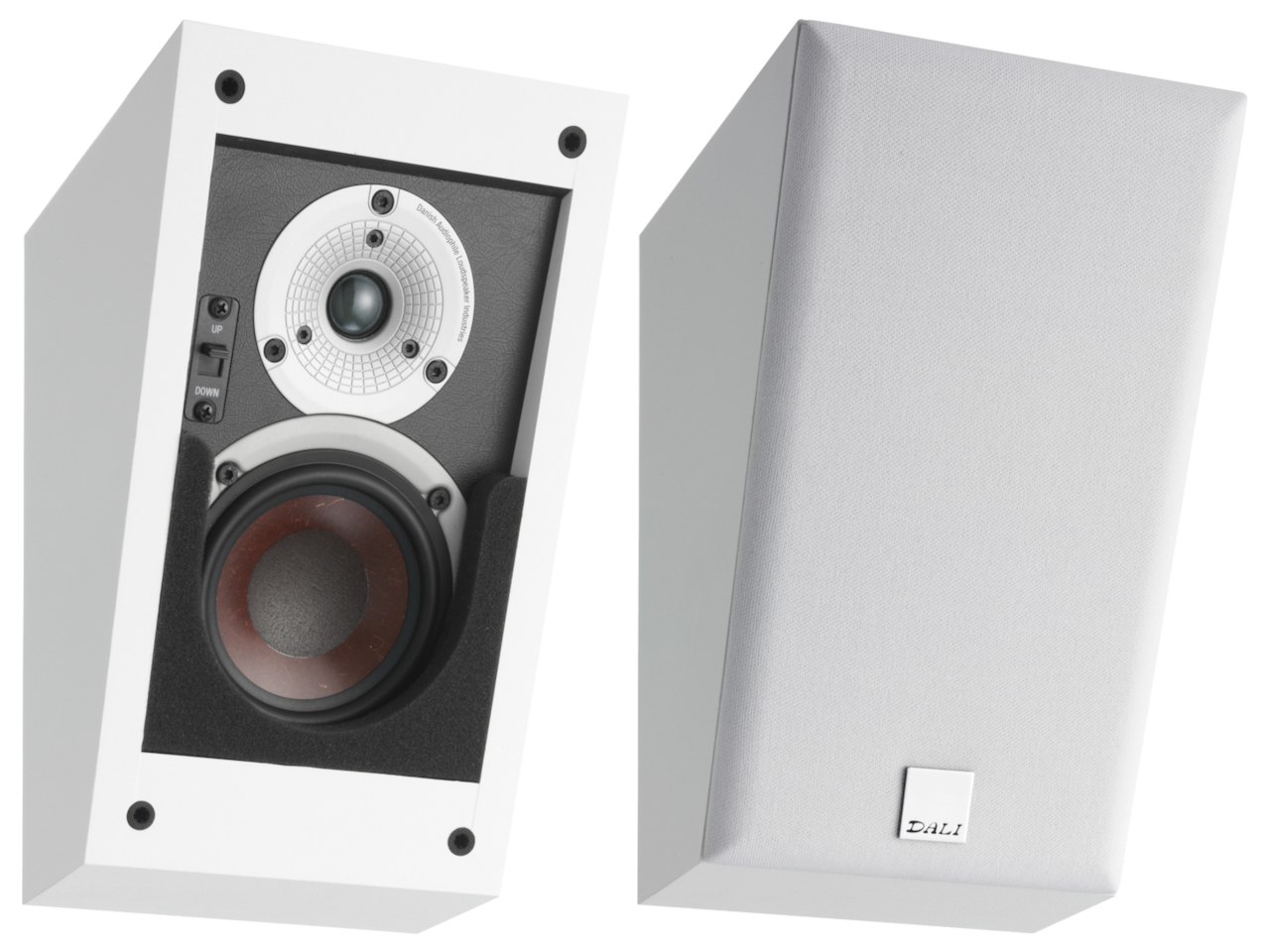

Der DALI ALTECO C-1 ist ein echter Mehrzwecklautsprecher. Er eignet sich als Aufsatzbox für Front- und/oder Surroundlautsprecher bzw. für die Höhenkanäle von Dolby Atmos, DTS-X und Auro-3D Soundtracks in einem Heimkino, als Stereo- oder Surround-Effektlautsprecher für die Wand- oder Deckenmontage sowie als Nahfeld-Monitor auf dem Schreibtisch.
Umschaltbarer Klangmodus
Verstärkerfreundlich
Gewebe-Hochtonkalotte
Abstrahlung nach oben
Technische Daten:
Frequenzbereich (+/- 3 dB) [Hz] 74 - 25.000 Hz Empfindlichkeit (2,83V/1m) [dB] 83,0 dB Nennimpedanz [O] 6 Ohm Maximaler Schalldruckpegel [dB] 103 dB Empfohlene Verstärkerleistung [W] 40 - 100 Watt Übergangsfrequenzen [Hz] 2.100 Hz Frequenzweichenprinzip 2-Wege Hochtöner 21 mm GewebekalotteTiefmitteltöner115 mm HolzfasermenbranEmpfohlener Wandabstand [cm] 1 - 100 cm Gehäuseabmessungen (HxBxT) [mm] 265 x 160 x 200Gewicht [kg] 2,9 kg
BRINGEN SIE IHRE FILME UND MUSIK AUF NEUE HÖHEN
Damit wird immersiver Sound aus allen Richtungen (auch von oben!) lebendig Dolby Atmos®-fähige Lautsprecher. Fügen Sie sie jedem Monitor oder Standlautsprecher hinzu oder verwenden Sie sie als Surround-Lautsprecher für eine Halbkugel mit sattem, detailreichem Klang.
VÖLLIG NEUES 90° X 90° TRACTRIX HORN
Unsere exklusive Tractrix®-Horntechnologie liefert Kraft, Detailtreue und Emotion des Live-Musikerlebnisses mit dem saubersten, natürlichsten Klang, der möglich ist. Die vergrößerten äußeren Hornabmessungen ermöglichen die Richtwirkungskontrolle über einen größeren Bandbreite von Frequenzen, was zu einer verbesserten Hochfrequenz-Richtwirkung und a genauere Klangbühne.
LINEAR TRAVEL SUSPENSION (LTS) ALUMINIUM HÖCHSTÖNER MIT KAPTON-AUFHÄNGUNG
Die exklusive Linear Travel Suspension (LTS) minimiert Verzerrungen für verbesserte, ausführliche Darbietungen. Aluminium ist ein extrem leichtes und steifes Material, das in verwendet wird die Hochtönerbaugruppe, um einen hohen Wirkungsgrad zu bieten und Auflösung und Details zu verbessern. LTS-Hochtöner sind ein Markenzeichen von Klipsch-Lautsprechern und damit eine Kernkomponente von einige der besten Lautsprecher der Welt.
WOOFER AUS THERMOGEFORMTEM KRISTALLINEM POLYMER (TCP) AUS GESPONNENEM KUPFER
Verwendung der Trickle-Down-Technologie von Klipschs hochgelobter Referenz Die TCP-Tieftöner der Premiere-Serie haben einen steileren Winkel der Membranen für einen glatteren Klang Reaktion und verbesserte Genauigkeit und Transparenz. Die zusätzliche Verrippung nimmt zu die Gesamtsteifigkeit für weniger Konusbruch bei höheren Frequenzen.
SCHLANKES, MODERNES ERSCHEINUNGSBILD
Versteckte Befestigungselemente, ein durchgehendes Horn und flache Magnetgitter geben dem Lautsprecher ein poliertes, modernes Erscheinungsbild.
MDF-GEHÄUSE MIT KRATZFESTEM VINYL MIT STRUKTURIERTER HOLZMASERUNG
Stilvolle Ästhetik mit absoluter Haltbarkeit, die zu einer nahtlosen Integration führt jedes Dekor.
HOCHWERTIGES GEHÄUSE
Die verstärkte 3/4-Zoll-MDF-Konstruktion mit einem völlig neuen Verstrebungsdesign reduziert den Schrank Vibration für weniger hörbare Färbung und verbesserte Klanggenauigkeit.
KABEL ENTHALTEN
Jumper-Drähte sind inkludiert für eine einfache Dolby Atmos-Verbindung mit dem Standlautsprecher R-800F und R-600F.
Technische Daten
Frequenzbereich
Entspricht den Spezifikationen von Dolby Atmos
Empfindlichkeit
Entspricht den Spezifikationen von Dolby Atmos
Belastung (Dauer/Spitze)
50 W/100 W
Nominale Impedanz
8 ohms Compatible
Übergangsfrequenz
4.400 Hz
Hochfrequenztreiber
1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
Niedrigfrequenztreiber
4" spun-copper TCP woofer
Gehäusematerial
MDF
Gehäusetyp
Bass-Reflex via rear-firing ports
Eingänge
Single Gold Plated Binding Posts
Masse (BxHxT)
146 x 178 x 298 mm
Gewicht
2,8 kg
Der DALI ALTECO C-1 ist ein echter Mehrzwecklautsprecher. Er eignet sich als Aufsatzbox für Front- und/oder Surroundlautsprecher bzw. für die Höhenkanäle von Dolby Atmos, DTS-X und Auro-3D Soundtracks in einem Heimkino, als Stereo- oder Surround-Effektlautsprecher für die Wand- oder Deckenmontage sowie als Nahfeld-Monitor auf dem Schreibtisch.
Umschaltbarer Klangmodus
Verstärkerfreundlich
Gewebe-Hochtonkalotte
Abstrahlung nach oben
Technische Daten:
Frequenzbereich (+/- 3 dB) [Hz] 74 - 25.000 Hz Empfindlichkeit (2,83V/1m) [dB] 83,0 dB Nennimpedanz [O] 6 Ohm Maximaler Schalldruckpegel [dB] 103 dB Empfohlene Verstärkerleistung [W] 40 - 100 Watt Übergangsfrequenzen [Hz] 2.100 Hz Frequenzweichenprinzip 2-Wege Hochtöner 21 mm GewebekalotteTiefmitteltöner115 mm HolzfasermenbranEmpfohlener Wandabstand [cm] 1 - 100 cm Gehäuseabmessungen (HxBxT) [mm] 265 x 160 x 200Gewicht [kg] 2,9 kg
