€12,000.00*
( Pieceprice )
On order - delivery time on request (usually approx. 14 days)**
Available variants
Buy together with Amplifier
€14,500.00*
Buy together with CD-Player
€11,000.00*
Product number:
031416
Product information:
Der neue Premium Netzwerk-Audioplayer LINK 10n wurde mit derselben Technologie und Handwerkskunst entwickelt, die auch den MODEL 10 und den SACD 10 als führende Geräte ihrer Klasse auszeichnen.
...
More

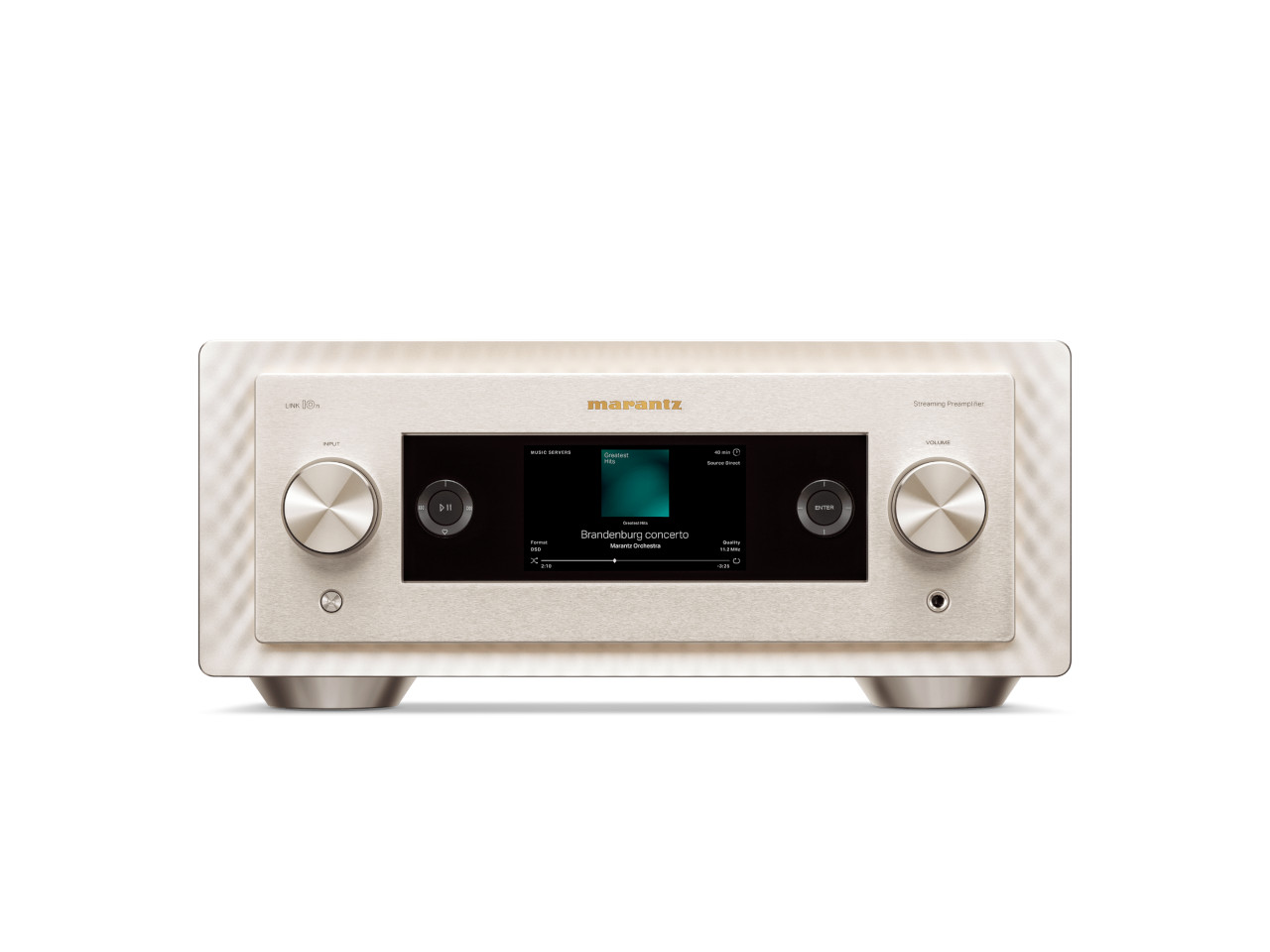

Product information "Marantz LINK 10n Champagner"
Der neue Premium Netzwerk-Audioplayer LINK 10n wurde mit derselben Technologie und Handwerkskunst entwickelt, die auch den MODEL 10 und den SACD 10 als führende Geräte ihrer Klasse auszeichnen.
- Hi-Res-Audio-Unterstützung
- HEOS® Built-in
- Hochauflösendes HD TFT-Farbdisplay
- Neueste HDAM- und MM-Schaltungen
- HDMI ARC mit CEC-Unterstützung
- 2.1-Kanal-Subwoofer-Ausgang
Technische Daten
Gerät (B × H × T) | 440 × 192 × 472 mm (mit Antenne) |
Gehäusegröße | 440 × 192 × 422 mm |
Nettogewicht | 33,3 kg |
Verpackungsmaße (B × H × T) | 600 × 379 × 540 mm |
Bruttogewicht Verpackung | 38,7 kg |
Kartonfarbe | 1 Farbe (Materialfarbe: Braun, Druck: Schwarz) |
Panelfarbe | Schwarz / Marantz Champagne |
Front (Mittelteil) Paneel | Aluminium |
Rückseite | Aluminium |
Frontpanel-Beleuchtung | Ja (Alle Seiten, Dimmer) |
Seitenverkleidung | Aluminium (Dicke: max. 15,8 mm) |
Obere Abdeckung (Mittelteil) mit Belüftungsloch | Nein |
Innenbeleuchtung | Nein |
Rückwand | Dreilagig kupferplattiert |
Chassis-Material | Kupferplattiert |
Unterste Lage / Bodenplatte | Kupferplattiert |
Lautstärkeregler | Massives Aluminium (Lagerkonstruktion) |
Eingangs-Wahlschalter | Massives Aluminium (Lagerkonstruktion) |
Fuß | Massives Aluminium mit Kupfer |
Frequenzgang PCM | 2 Hz – 50 kHz (-3 dB) |
Klirrfaktor PCM | 0,0004 % |
S/R PCM | 0,0004 % |
Dynamikbereich PCM | 0,0004 % |
Line-Ausgangspegel UNBALANCED | 2,0 Vrms |
Line-Ausgangspegel BALANCED | 4,0 Vrms |
Kopfhörerausgangspegel | 130 mW / 32 Ohm |
Frequenzgang (analog Eingang) | 5 Hz – 100 kHz (+0 dB / -3 dB) |
Klirrfaktor (analog Eingang) | 0,001 % (20 Hz – 20 kHz) |
S/N PHONO (MC) | 76 dB |
S/N PHONO (MM) | 88 dB |
S/N BALANCED | 122 dB |
S/N LINE | 122 dB |
Phono Eingangsempfindlichkeit MM | 8 mV |
Phono Eingangsempfindlichkeit MC | 80 mV |
Phono Eingangsimpedanz MC Niedrig | 32 Ohm |
Phono Eingangsimpedanz MC Mittel | 100 Ohm |
Phono Eingangsimpedanz MC Hoch | 390 Ohm |
Phono Eingangsimpedanz MM | 39 kOhm |
Stromverbrauch | 7 W Weniger als 0,3 W (Standby) Weniger als 2 W (Netzwerksteuerung an: Bluetooth, Ethernet, Wi-Fi, USB) |
Ausgangsschaltung | Neues HDAM |
Transformator | Toroidal |
Vorverstärker-Schaltung | Neues HDAM High Grade, Vollbalanciert |
Lautstärke | Elektrisch (MUSES 72323), variable Verstärkung |
Bass / Höhen / Mitten / Balance | Ja / Ja / Nein / Ja |
Art der Klangregelung | Elektrisch |
Kopfhörerschaltung | Diskret |
Kopfhörerverstärker Verstärkungseinstellung | Ja (Niedrig / Mittel / Hoch) |
Kopfhörer Ein-/Ausschaltung | Kopfhörer schaltet automatisch aus, wenn in Gebrauch |
DAC-Schaltung | Neuer MMM-Wandler |
Dither | MMM-Stream (Dither 1, 2, Aus) |
Noise Shaper | MMM-Stream (Balanced, Natural, Dynamic Music, Dynamic Voice) |
Digitalfilter | MMM-Stream, Filter 1 und 2 auswählbar |
Jitter-Reduzierer | Ja |
DAC Master Clock Design (USB-DAC) | Ja |
Asynchronmodus (USB-B Eingang) | Ja |
Isolator (USB-B Eingang) | Ja (Komplettes Isolation System Duo) |
Feste analoge Ausgänge (RCA) | 1 × Cinch, dick nickelfrei |
Vor-/variable Audio-Ausgänge (RCA) | 1 × Cinch, dick nickelfrei |
Fester balancierter XLR-Ausgang | Ja (1 Paar) |
Vor-/variable balancierte XLR-Ausgänge | Ja (1 Paar) |
RCA-Eingang | 1 × Cinch, dick nickelfrei |
Balancierter XLR-Eingang | Ja (1 Paar) |
Phono-Eingang | Ja (MM / MC), Marantz Musical Premium Phono EQ mit wählbarer MC-Impedanz (3 Positionen), dick nickelfrei |
Optischer Ein-/Ausgang (maximal unterstützt) | 2 / |
