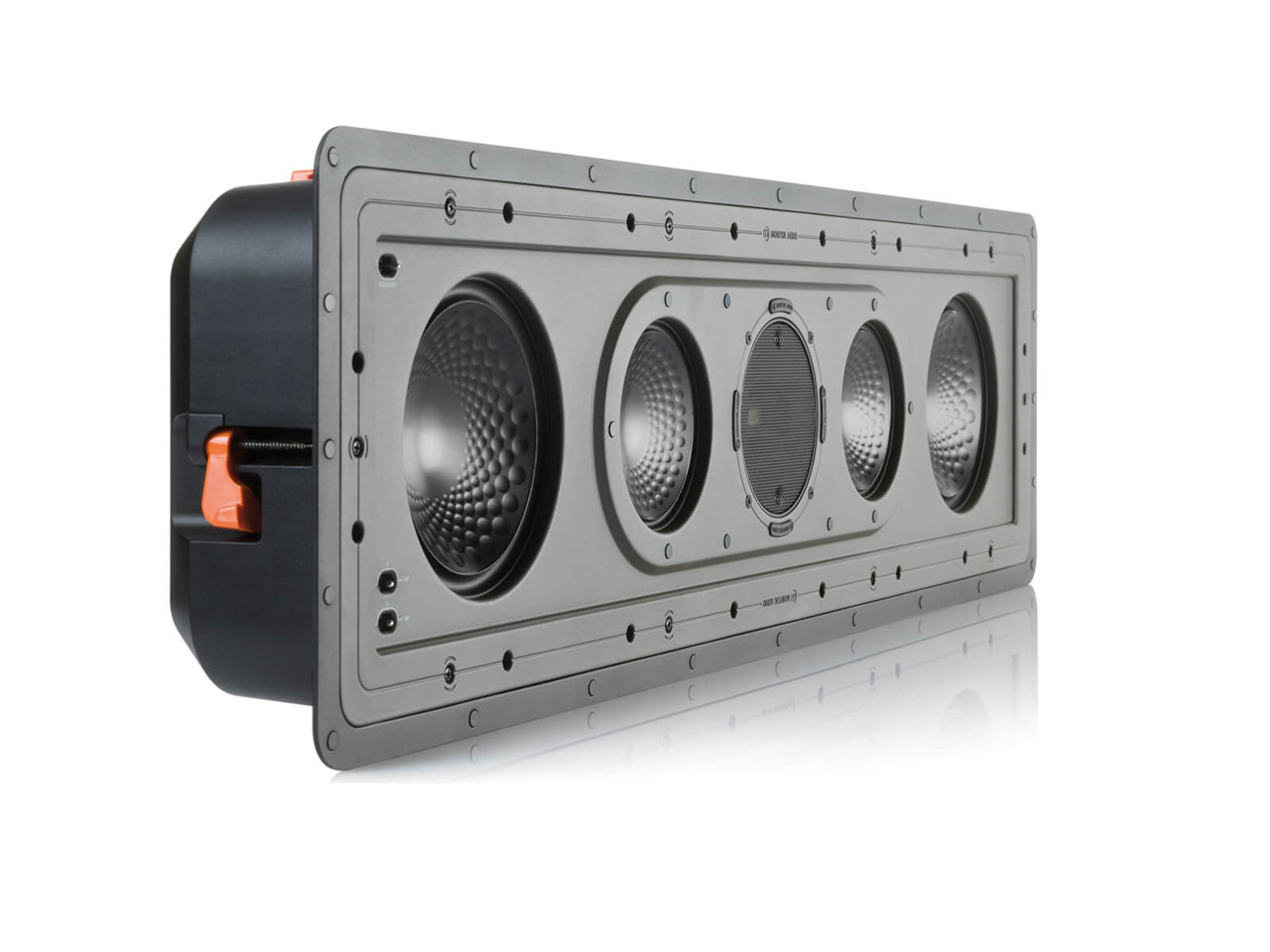

Monitor Audio Controlled Performance CP IW460X
€2,399.00
On order - delivery time on request (usually approx. 14 days)**
Buy together with
Product information "Monitor Audio Controlled Performance CP IW460X"
Der CP-IW460X verfügt über das unverwechselbare C-CAM-Membranmaterial (Ceramic-Coated Aluminium/Magnesium) von Monitor Audio mit RST (Rigid Surface Technology), eingesetzt in doppelten 6,5-Zoll-Tieftönern und doppelten 4-Zoll-Mitteltönern, die in symmetrischer B-M-T-M-B-Konfiguration auf einem Goldkuppel-Hochtöner sitzen. Alles in einem Gehäuse aus gegossenem Polymer mit Schallwand aus Druckguss-Aluminium.
Important: Streichen Sie die CP-IW260X- und CP-IW460X-Gitter nicht an, da keine Ersatzgitter mitgeliefert werde.
Technology
- Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology
- Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
- Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies
- C-CAM Ribbon High Frequency transducer
- Innovative HF rotating system to facilitate portrait or landscape orientation
- Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
- Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
- High overall efficiency and maximum SPL for powerful home theatre installations
- High power handling
- Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
- High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
- Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
- Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
Frequenzgang
50 Hz – 60 kHz (-6 dB typical in room response)
Nominalimpedanz
6 ohm
Empfindlichkeit (1W@1M)
89 dB
Maximaler Schalldruck
113.8 dBA
Belastbarkeit (RMS)
150 Watt
Empfohlene Verstärkerleistung
60 – 150 Watt
Übergangsfrequenz
L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave
Treiberbestückung
2 x 6.5” C-CAM Bass drivers with RST cone technology
2 x 4” C-CAM Mid-range drivers with RST cone technology
1 x C-CAM H.F ribbon transducer
Bedienelemente
Boundary Compensation (On/Off)
MF Level: +1/0/-1 (dB)
HF Level: +1/0/-1 (dB)
Gesamtabmessungen (H x B x T)
907 x 257 mm
Gesamttiefe (mit Blende)
102 mm
Abmessungen Montage-Ausschnitt
880 x 230 mm
Montagetiefe
96 mm
Befestigungsart
10 x Tri-Grip Dog leg fixings
Baumaterial
Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)
Gewicht
12.98 kg
Einbauschablone
Erhältlich als
Stück
