The audiolab 6000N Play is a wireless audio streaming player and is the latest member of the acclaimed audiolab 6000 Series of components.
Featuring DTS Play-Fi® Technology, music can be streamed over your wireless network in high-resolution format and can be easily expanded to a multi-room system if required. You can stream from any source on your wireless network, including smart-phones, tablets or PCs as well as a NAS Drive.
The sound of scienceOutwardly, the 6000A bears strong resemblance to the 8300A with its rotary controls and large, central OLED display. Unlike its costlier, analogue-only sibling, it incorporates high-quality D/A conversion, enabling digital sources to be connected directly without an external DAC. It supplies four digital inputs, three line-level analogue inputs, an input for a turntable, wireless connectivity via Bluetooth and a dedicated headphone amp, in addition to its ability when driving loudspeakers.
Digital circuitryMuch effort has been made to ensure the 6000A 19s digital circuitry delivers the level of quality one might expect of a high-performance standalone DAC. As ever, Audiolab has turned to the ES9018 Sabre32 Reference chip family to perform D/A conversion, utilising ESS Technology 19s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.
No company knows more about making the most of this technically excellent, but challenging, DAC technology than Audiolab. If the circuitry that surrounds the ES9018 is not of sufficient standard, the resulting sound can seem a little cold and hard; treat it right, however, and the level of musical expression that this chip digs from the digital signal is captivating. Audiolab 19s original, universally acclaimed M-DAC was one of the first home audio components to incorporate an ES9018 chip back in 2011, and the company has been honing its implementation ever since.
Analogue circuitryThe 6000A 19s discrete Class AB power amp stage delivers 50W per channel into eight ohms, with a maximum current delivery of 9 Amps into difficult loads. The output stage of the discrete power amp circuits uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors.A substantial 200VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
The preamp section is kept as simple as possible to maintain signal purity, with line input signals passing to a precision analogue volume stage. The latter covers the range from -80dB to +8dB in steps of 2dB and 1dB (step resolution increases with volume position). Much effort has gone into the physical layout of the 6000A 19s circuitry, protecting the sensitive preamp section from noise interference. This, plus the use of independent low-noise power supplies for critical stages, helps to deliver a performance that rivals significantly more expensive analogue amplifiers, even before taking the 6000A 19s impressive digital circuitry into account.
Turntables and headphonesIn recognition of the recent vinyl revival, Audiolab has included a phono stage for moving magnet phono cartridges 13 a high-quality, low-noise, JFET-based circuit with precise RIAA equalisation.
Similarly, an increasing number of people are using headphones for music listening, so Audiolab has incorporated a dedicated headphone amp with current-feedback circuitry. Its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types 13 more boxes ticked for this most integrated of integrated amplifiers.
Technische Daten:
Digital Section:
Digital Output Level
500 +/- 50mVpp
Output Impedance
75 ohm
Maximum Resolution
192kHz/24bit
Digital Output
1 x coaxial , 1 x optical
D to A Converter:
Variable Output Voltage
0 13 2.1V
DAC
ES9018K2M
Frequency Response
+/-0.5dB(20Hz-20kHz,ref.1kHz)
Total Harmonic Distortion (THD)
<0.003% (1kHz @0dBFS , BW=20-20kHz)
Signal-to-noise Ratio (S/N)
>115dB(A-weighted)
Analogue Output Impedance
100 ohm
Standby Power Consumption
<0.5W
Requirements (depending on region)
220V 14240V~50/60Hz100V 14120V~50/60Hz
Dimensions (LxWxH)
445 x 313 x 65.5mm
Net Weight
4.9kg
The audiolab 6000N Play is a wireless audio streaming player and is the latest member of the acclaimed audiolab 6000 Series of components.
Featuring DTS Play-Fi® Technology, music can be streamed over your wireless network in high-resolution format and can be easily expanded to a multi-room system if required. You can stream from any source on your wireless network, including smart-phones, tablets or PCs as well as a NAS Drive.
The sound of scienceOutwardly, the 6000A bears strong resemblance to the 8300A with its rotary controls and large, central OLED display. Unlike its costlier, analogue-only sibling, it incorporates high-quality D/A conversion, enabling digital sources to be connected directly without an external DAC. It supplies four digital inputs, three line-level analogue inputs, an input for a turntable, wireless connectivity via Bluetooth and a dedicated headphone amp, in addition to its ability when driving loudspeakers.
Digital circuitryMuch effort has been made to ensure the 6000A 19s digital circuitry delivers the level of quality one might expect of a high-performance standalone DAC. As ever, Audiolab has turned to the ES9018 Sabre32 Reference chip family to perform D/A conversion, utilising ESS Technology 19s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.
No company knows more about making the most of this technically excellent, but challenging, DAC technology than Audiolab. If the circuitry that surrounds the ES9018 is not of sufficient standard, the resulting sound can seem a little cold and hard; treat it right, however, and the level of musical expression that this chip digs from the digital signal is captivating. Audiolab 19s original, universally acclaimed M-DAC was one of the first home audio components to incorporate an ES9018 chip back in 2011, and the company has been honing its implementation ever since.
Analogue circuitryThe 6000A 19s discrete Class AB power amp stage delivers 50W per channel into eight ohms, with a maximum current delivery of 9 Amps into difficult loads. The output stage of the discrete power amp circuits uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors.A substantial 200VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
The preamp section is kept as simple as possible to maintain signal purity, with line input signals passing to a precision analogue volume stage. The latter covers the range from -80dB to +8dB in steps of 2dB and 1dB (step resolution increases with volume position). Much effort has gone into the physical layout of the 6000A 19s circuitry, protecting the sensitive preamp section from noise interference. This, plus the use of independent low-noise power supplies for critical stages, helps to deliver a performance that rivals significantly more expensive analogue amplifiers, even before taking the 6000A 19s impressive digital circuitry into account.
Turntables and headphonesIn recognition of the recent vinyl revival, Audiolab has included a phono stage for moving magnet phono cartridges 13 a high-quality, low-noise, JFET-based circuit with precise RIAA equalisation.
Similarly, an increasing number of people are using headphones for music listening, so Audiolab has incorporated a dedicated headphone amp with current-feedback circuitry. Its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types 13 more boxes ticked for this most integrated of integrated amplifiers.
Technische Daten:
Digital Section:
Digital Output Level
500 +/- 50mVpp
Output Impedance
75 ohm
Maximum Resolution
192kHz/24bit
Digital Output
1 x coaxial , 1 x optical
D to A Converter:
Variable Output Voltage
0 13 2.1V
DAC
ES9018K2M
Frequency Response
+/-0.5dB(20Hz-20kHz,ref.1kHz)
Total Harmonic Distortion (THD)
<0.003% (1kHz @0dBFS , BW=20-20kHz)
Signal-to-noise Ratio (S/N)
>115dB(A-weighted)
Analogue Output Impedance
100 ohm
Standby Power Consumption
<0.5W
Requirements (depending on region)
220V 14240V~50/60Hz100V 14120V~50/60Hz
Dimensions (LxWxH)
445 x 313 x 65.5mm
Net Weight
4.9kg
AIO C : make all your systems compatible with AIO
Make all your old speakers and amplifiers compatible with the AIO Triangle environment. That is the strength of AIO C.This small compact streamer offers all the features you need: streaming wifi, DLNA, multiroom management.Versatile, it includes an RCA and S/PDIF output to send music in digital or analog to your amplifier.
Technische Daten:
Wireless network
IEEE 8.2.11b/g/n 2.4GHz Ethernet
Wired connectivity
Single 10/100M RJ45 Jack
Frequency response
20Hz - 20KHz
Power input
5V-1A
Audio input
USB 2.0
Audio formats
MP3 - AAC+ALAC - FLAC - AOE - WAV
Dimensions
L3.15 x W3.15 x H0.79"
Weight
0.35 lbs

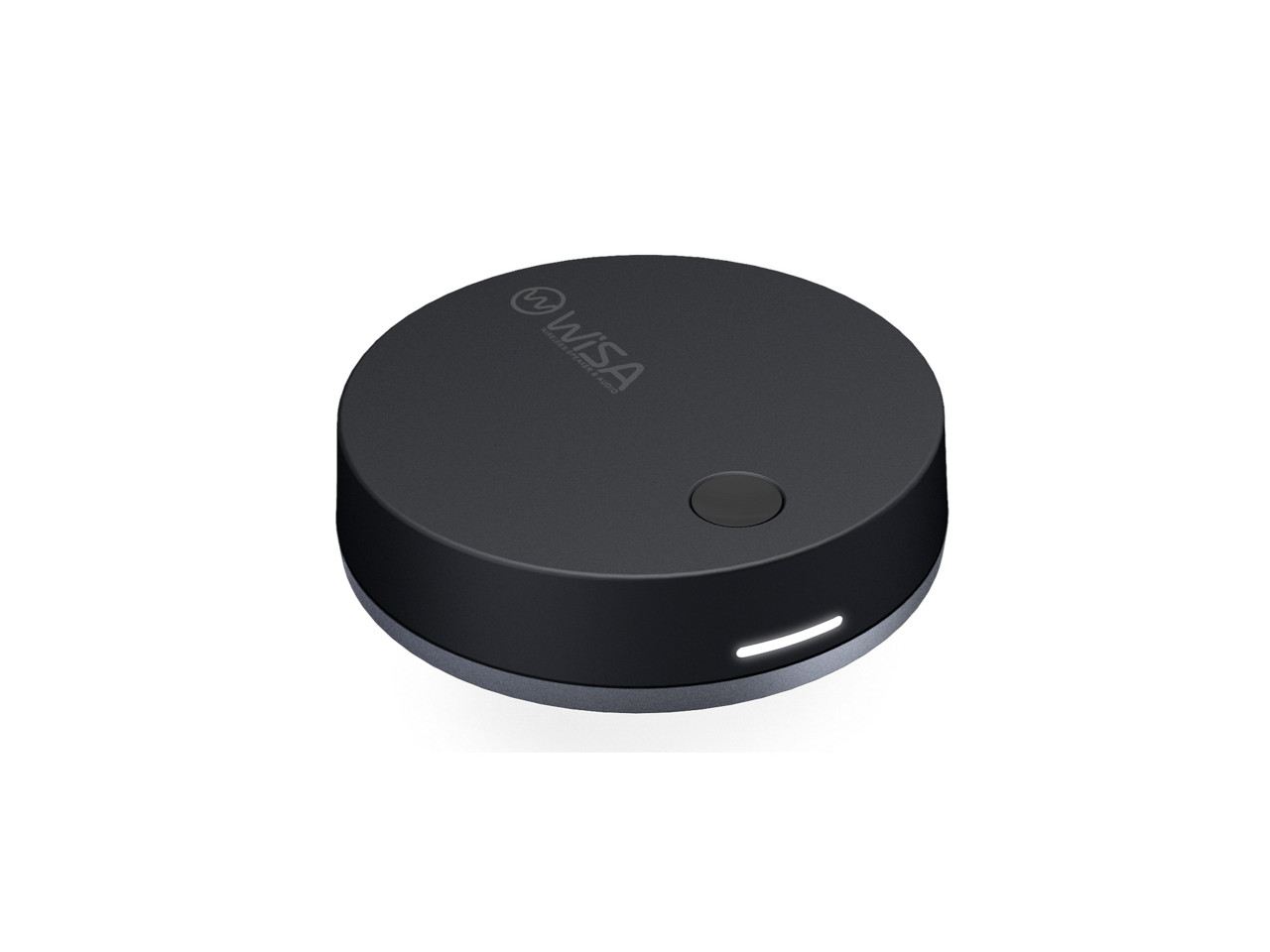

Der WiSA SoundSend Transmitter wird per HDMI ARC/eARC mit dem Fernseher verbunden und ermöglicht dann die drahtlose Übertragung des Audiosignals an bspw. Lithe Audio Pro Lautsprecher (mit angebrachten WiSA Modul) oder andere WiSA-zertifizierte Lautsprecher die in einem Dolby Atmos Heimkino-Setup installiert sind.
WiSA ermöglicht es bis zu 8 Kanäle mit 24-bit/96 kHz hochauflösendem Ton mit einer geringen Latenz von 5,2 ms und weniger als 1 ms Synchronisation zwischen den Lautsprechern zu übertragen.
Stecken sie den SoundSend Transmitter einfach an den Fernseher an. SoundSend macht den Rest: Es verbindet sich automatisch mit den Lautsprechern und kreiert ein robustes drahtloses Netzwerk für ihr Heimkino. Ändern Sie die Lautstärke mit Ihrer Fernbedienung oder mit der SoundSend App - hiermit können Sie zahlreiche Feineinstellungen vornehmen.
Deckenlautsprecher der Lithe Pro-Serie (Pair)
Das Lithe Audio Pro Series Ceiling Speaker-Paar liefert hochauflösendes Audio von einem Deckenlautsprecher in Verbindung mit einem unvergleichlichen Feature-Set. Dieses ultimative raumgreifende aktive Angebot bietet eine beispiellose drahtlose Konnektivität mit der zusätzlichen Option für eine festverdrahtete Verbindung.
Entwickelt, um explizit an der Spitze der Lithe Audio integrierten Lautsprecher-Sortiment zu sein. Dieses preisgekrönte in-ceiling-active-Angebot bietet viele führende Funktionen, darunter die optionalen WiSA-Integration für Dolby Atmos-Systeme, die PoE-Stromversorgung für den Komfort einer einfachen Installation und die umfassendste Reihe von drahtlosen und kabelgebundenen Konnektivitätsoptionen.
Entworfen, um einfach zu installieren, während Sie bequeme Funktionen für Wohn- und Geschäftszwecke halten. Starke drahtlose und kabelgebundene Verbindungen zu Ihren Netzwerken und Kompatibilität mit all Ihren Lieblings-Streaming-Diensten. Schauen Sie in unsere optionalen Bolzen, wenn Sie nach PoE-Funktionalität oder WiSA suchen, wenn Sie kabelloses Atmos-Setup zu Hause sehen möchten.
Funktechnologie ist die Zukunft, aber fest verdrahtete Lösungen sind immer noch in größeren oder kommerziellen Projekten unerlässlich. Mit dem Wi-Fi-Deckenspeier der Pro-Serie können Sie zwischen einer Reihe von drahtlosen Hochgeschwindigkeitsverbindungen oder einer festverdrahteten Datenverbindung mit einer CAT5- oder CAT6e-Kabelverbindung wählen.
Einfache Installation von Diagramm über Steckdose oder über Lichtkreis oder PoE Addon. Verbindungen zu Computern, Telefonen und Smart-Home-Systemen wie Control4, Loxone und Fibaro
Merkmale
Mehrraum Deckenspeise
All-in-One-Lösung - Verstärker und Wi-Fi alle eingebaut, fügen Sie einfach Strom hinzu.
Einfache Verbindung zur Steckdose oder bestehende Beleuchtungsschaltung
Built-In AirPlay 2 und Google Chromecast
DLNA und UPnP
Verbinden Sie bis zu 30 Master-Lautsprecher (30 Zonen)
App-Steuerung über IOS oder Android, volle Kontrolle mit einfacher Drag-and-Drop-Zoning
Kabel- und Kabelanschluss
High Res Audio
Erweiterbare Hardware
WiSA zertifiziert
12x Konnektivitätsoptionen
Wi-Fi zertifiziert 2.4Ghz / 5Ghz (802.11a/b/g/n/ac)
Apple AirPlay 2 zertifiziert
Google ChromeCast eingebaute zertifiziert
Spotify connect zertifiziert
Bluetooth
Optisch
Ethernet-Anschluss in / raus
DLNA/uPnP-Anschlüsse
Funktioniert mit Alexa
Funktioniert mit OK Google
WiSA mit optionalem Schraube
Control4, Nice/Elan, KNX, Loxone
Audio Spezifikation
Woofer: 6,5" gewebte Glasfaserkone
Tweeter: 0,75" Titan Cone
Mono/Stereo
RMS Power: 60W RMS (2x 30W)
Impedance: 8 Ohm nominal
Sound Quality THD + N 0,009%, 55Hz-20kHz (+/- 3dB)
Sensitivität (1W/1m): 90dB
Line In (Optisch), Autodetektion
Typ: Klasse D (Digital)
Audiokompression: 192Khz/24bits
Woofer: 6,5 1C gewebte Glasfaserkegel
Tweeter: 0,75 1D Titan Cone
Mehrraum
Verbinden Sie mehrere Zonen drahtlos oder verdrahtet
Spotify Connect (nur Premium-Nutzer)
Spielen Sie Audio von Spotify, Deezer, Tidal, Tune in, Napster, Qobuz, Palco MP3 und SoundMachine
Musik in einer Gruppe oder Einzelzimmern
Gruppen-, Mix- und Match-Multi-Marken-Lautsprechern mit AirPlay 2 und Chromecast
Lautsprecher Spezifikation
210mm Ausschnitt
Gewicht: 3,7kg
Abmessungen: (W x D) 230 x 110 mm
Stromversorgung : 100 - 240V, 50/60Hz / 2A
Transformer Output Supply : DC24V / 2,5A
Standby-Leistung: 1,3W / 0,02A
Vernetzte Leistung: 1,5W / 0,03A
Spielmusik: 2.8W - 10.5W / 0,03A - 0,09A
Betriebstemperatur 0o bis 40oC (32o bis 104oF)
Speichertemperatur -20o bis 70oC (4o bis 158oF)
Was ist in der Box
Pro Series WiFi Deckenspeier
Passive Deckenspeise
5M Lautsprecherkabel
Stromversorgung
Schneidvorlage
Bedienungsanleitung
Optionale Bolt-Ons
Lithe Audio PoE Modul Bolt-On
Lithe Audio Pro WiSA Bolt-On
Lithe Audio WiSA SoundSend Sender
The QUAD Vena II Play is the latest addition to the best-selling QUAD Vena series of integrated ampli?ers. It is also heralds the arrival of wireless audio streaming and multi-room technology to the QUAD product portfolio. Based on the recently upgrade and richly speci?ed Vena II, the QUAD Vena II Play incorporates the acclaimed DTS Play-Fi® platform. With DTS Play-Fi® Technology, music can be streamed over your wireless network in high resolution format and can be easily expanded to an ultimate multi-room system if required. You can stream from any source on your wireless network, including smart-phones, tablets or PCs as well as a NAS Drive. The DTS Play-Fi® platform o?ers a wealth of music options from around the globe. Spotify, Tidal, HD Tracks, Deezer, Amazon Music, Napster, KKBox and Sirius XM, to name a few. Browse a radio guide with thousands of stations and podcasts, or stream from a home media server with DLNA compatibility. QUAD Vena II Play borrows more than just looks from its sibling, the Vena II - utilizing much of the same high-speci?cation design, including the ES9018K2M from the Sabre32 Reference DAC as well as the aptX Bluetooth connectivity, it has all the pure musicality of QUAD coursing through its very versatile circuitry. There is also a smattering of both digital and analogue connections, including an MM phono stage, for a turntable. So however you want to enjoy your music, analogue or digital, the QUAD Vena II Play will have you connected and ready to play.
KEY FEATURES
Integrated Amplifier - 2x 45W RMS (8O) / 2x 65W RMS (4O)
Wi-Fi® Technology - DTS Play-Fi streams music over standard Wi-Fi networks, delivering perfectly synchronised audio, with no lag and zero loss in sound quality.
Any Operation System - Fully compatible with all operating systems: Apple iOS, Android!22, Windows® PC, and Fire OS.
Easy Setup - No logins, no complicated computer-based setups. Just download the app and within minutes, you're ready to listen.
DTS Play-Fi App - Simply download the free app and immediately send songs via Wi-Fi to any DTS Play-Fi® enabled speaker in any room of the house.
Multi-Room - Enjoy music in every room of your house - all at once, perfectly synchronised, with no lag. You're in control.
Lossless Audio Streaming - Stream in 24-bit/192kHz with compatible streaming services and file formats.
ESS Sabre32 ES9018K2M Reference DAC - As seen in the award-winning QUAD Vena II and many high-end audio solutions.
Ethernet Connection - Wired internet connection for high bandwidth applications.
Play from any Bluetooth Device - High quality Bluetooth APTX receiver
Turntable Ready - Built-in MM Phono Stage
1x Optical / 1x Coaxial / 2x Aux - Whole system connectivity.
NEW LED Volume Indicator - Customise visial volume display
Dedicated Spotify Connect LED Indicator

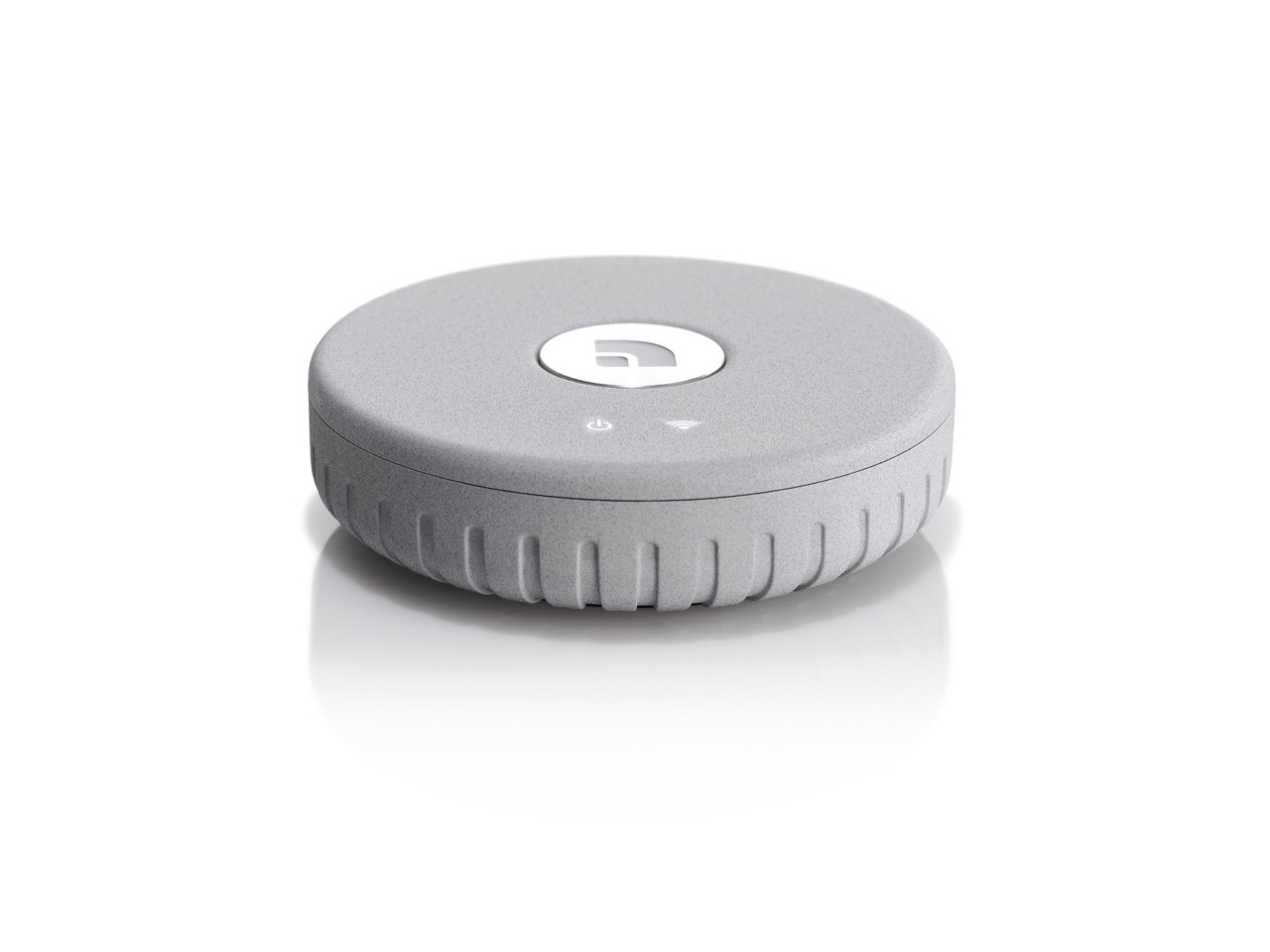

Link 1. Verwandelt jedes Audiogerät in einen Multiroom-Player.
Der Link 1 ist ein cleverer kleiner Multiroom-Adapter. Eine einfache Möglichkeit, all deine Audiogeräte an das Audio Pro Multiroom-System anzuschließen. Verbinde ihn mit Aktivlautsprechern, Radios, Hifi-Anlagen oder AV-Receivern und steuere alles mit der Audio Pro Control App.
MULTIROOM
Multiroom-Sound und Nutzung durch mehrere Personen. Gruppieren und abspielen, zwei Geräte auf links/rechts für Stereoklang einstellen, alle Geräte einzeln oder zusammen spielen lassen – oder auch nicht. Es ist deine Entscheidung.
APP-BEDIENUNG
Die Bedienung ist einfach. Wir wissen, dass das jeder sagt, aber mit dieser App ist es wirklich easy. Von der blitzschnellen Einrichtung bis zur Nutzung funktioniert alles reibungslos.
WIRELESS
Du kannst den Link 1 auch kabellos mit AirPlay oder Spotify Connect verwenden.
ANALOG UND DIGITAL
Auf der Rückseite befinden sich ein 3,5-mm-Stereo-Klinkenstecker und ein optischer TOSLink-Ausgang.
Macht jedes Audiogerät Multiroom-Ready
Apple AirPlay und Spotify Connect
Analoge und digitale Ausgänge
Technische Daten
Abmessungen HxBxT: 105 x 105 x 29mm
Eingang: Wifi und Ethernet WLan
Ausgänge: 3,5mm Stereo und optischer TOSLink
Kompatibilität mit drahtlosen Netzwerken: 802.11 b/g/n, nur 2.4GHz
Unterstützte Audioformate: MP3, WMA, AAC, FLAC, Apple Lossless
Drahtlose Technologien: Audio Pro Multiroom, Spotify Connect und Apple Airplay
Kompakte Abmessungen. Passt überall.

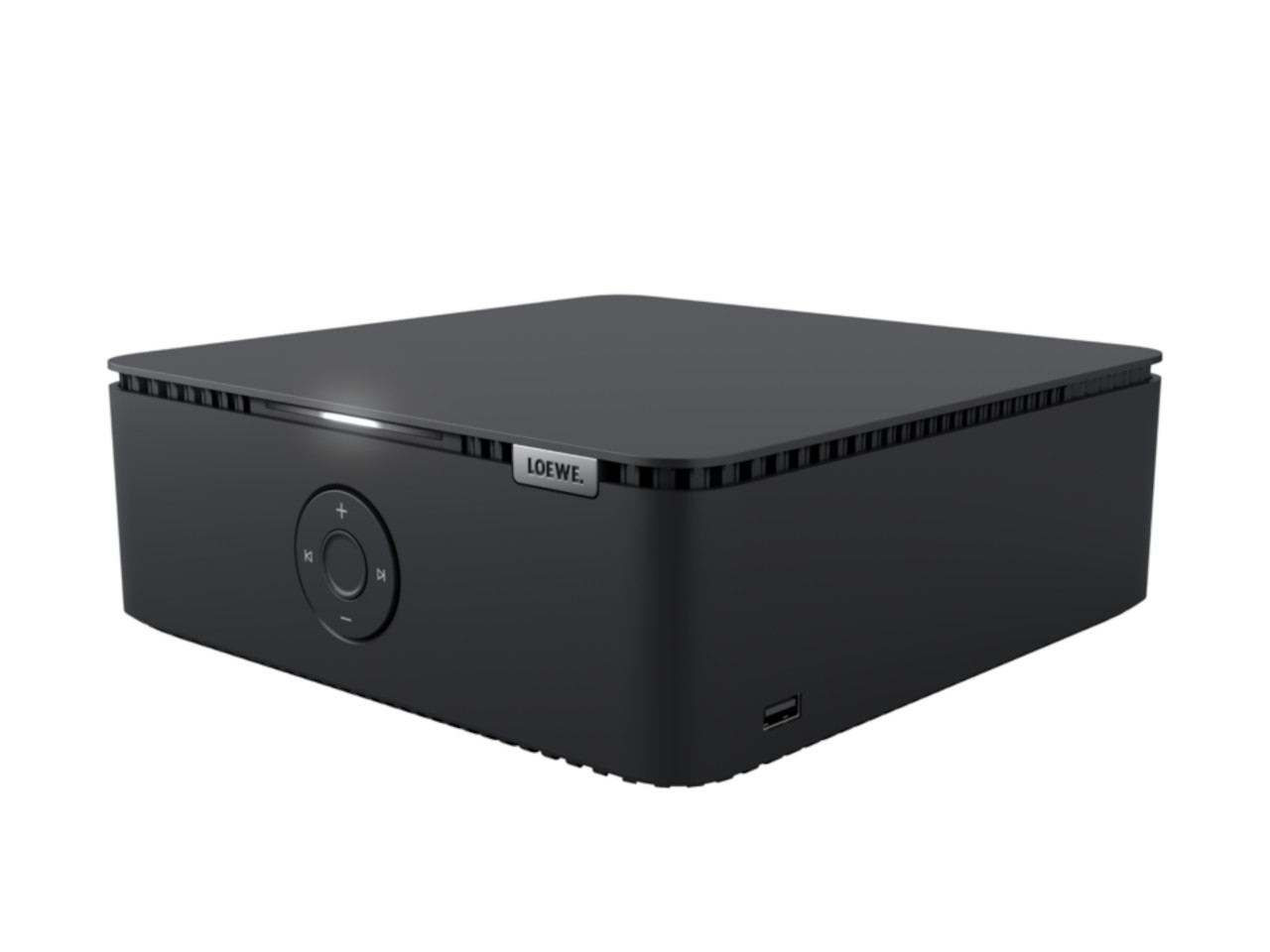

Der Loewe multi.room amp macht vorhandene Lautsprecher intelligenter. Er verleiht Ihren passiven und aktiven Hi-Fi-Lautsprechern eine Gesamtmusikleistung von 1.200 Watt bei 4 Ohm. Loewe multi.room amp ermöglicht eine Verteilung Ihrer Lieblings-Audioinhalte über Apple AirPlay, Google Cast, DTS Play-Fi, Spotify Connect und Bluetooth.
Bis zu 1.200 Watt Musikgesamtleistung
Für viele analoge und digital Quellen und passive und aktive Lautsprecher
State-of-the-art Streaming-Inhalte in Hi-Res Audio-Qualität für existierende Lautsprecher
Multiroom-Audio über DTS Play-Fi, Apple AirPlay, Google Cast, Spotify und Roon
Perfekte Ergänzung zum Loewe klang mr system
Ideal für jedes HiFi-, AV- oder TV-System von jeder Marke
HDMI CEC, ARC und PCM Unterstützung
Loewe wireless digital audiolink der zweiten Generation
Verlust- und Latenzfreie Funksignalübertragung für Mehrkanal-Heimkino
Kompaktes FormatDer Loewe multi.room amp ist mit Understatement gestaltet und fügt sich nahtlos in jeden Wohnraum ein. Mit seinen kompakten Abmessungen lässt er sich unauffällig im Regal, an der Wand oder in einem Schrank platzieren. Dank dieser Vielseitigkeit kann der Benutzer leistungsstarken, hochwertigen Klang genießen, ohne wertvollen Platz zu opfern. Für den professionellen Einsatz im Projektgeschäft kann es auch in ein 19 1D-Rack eingebaut und mit einer Zentralschraube gesichert werden. Sogar zwei Loewe multi.room amp passen nebeneinander.
Klares DesignDie Ästhetik des Verstärkers ist ein Beweis für das Engagement von Loewe für außergewöhnliches Design. Es wurde mit Präzision und Liebe zum Detail gefertigt und strahlt Raffinesse und Eleganz aus. Sein minimalistisches und geradliniges Design passt nicht nur zu modernen Interieurs, sondern dient auch als Statement, das die Gesamtästhetik eines jeden Raumes aufwertet.
Vielfältige MöglichkeitenOb leidenschaftlicher Musikliebhaber oder erfahrener Profi in der Audiobranche, der Loewe multi.room amp eignet sich für ein breites Spektrum. Seine Vielseitigkeit ermöglicht eine Reihe von Anwendungen, von reinen und analogen Stereo-Systemen bis hin zu immersiven drahtlosen digitalen Heimkino-Setups oder als Eckpfeiler in professionellen Audio-Umgebungen - nichts ist unmöglich mit dem Loewe multi.room amp.
Kraftvoller SoundDieser Verstärker liefert nicht nur Klang, er beherrscht ihn. Mit einer überwältigenden und in dieser Kategorie konkurrenzlosen Leistungsverstärker-Endstufe von bis zu 1.200 Watt und einem bemerkenswert niedrigen Klirr-Faktor verspricht er ein Hörerlebnis, das seinesgleichen sucht. Der Loewe multi.room amp bietet einen unvergleichlichen Klang. Er füllt jeden Raum mit sattem, mitreißendem Sound und sorgt dafür, dass jeder Ton und jeder Takt mit absoluter Klarheit und Präzision wiedergegeben wird. Damit ist er bereit für viele Hifi- und High-End-Lautsprecher.
Professionelle FeaturesFür Unternehmen und Gewerbe ist der Loewe multi.room amp mit einer Reihe von erweiterten Funktionen ausgestattet, die speziell auf B2B-Projektinstallationen zugeschnitten sind.Dazu gehören ein Mono-Modus, ein akustisches Feintuning-Skript für individuelle Klang-Anpassungen oder die Möglichkeit einer durchgeschleiften LAN-Verbindung ( 1CDaisy-Chain 1D), welche ein stabiles und leistungsstarkes Audiosystem für kommerzielle Anwendungen zum Beispiel in Bars, Restaurants, Villen oder Yachten gewährleistet. Der Loewe multi.room amp kann in seinen technischen Parametern so konfiguriert werden, dass er perfekt auf die Fähigkeiten der jeweiligen Lautsprecher abgestimmt ist.
Erweiterbares SystemDer Loewe multi.room amp ist Teil eines umfangreichen Ökosystems von Audioprodukten innerhalb des Loewe klang Portfolios, das zahlreiche Audio-Streaming-Dienste und -Quellen unterstützt. Erweitern Sie das Audio-Setup mit kompatiblen Produkten, System-Komponenten und AoD-Inhalten und schaffen Sie so ein umfassendes und individuelles Audioerlebnis, das allen individuellen Vorlieben und Bedürfnissen gerecht wird - ob für Multiroom-Audio oder Mehrkanal-Heimkino oder sogar beides nahtlos zur gleichen Zeit!
Technische Daten
Frequenzbereich (Hz) @ ±1 dB
20-20.000
Class-D Amp
(min. speaker impedance 4 Ohm)
Leistung (Watt Sinus / Musik)
300 / 600 @ 8O, 600 / 1.200 @ 4 Ohm
Klirrfaktor @ 1 Watt / 10 Watt
< 0,05 / < 0,05
Dynamikbereich / Rauschabstand (dB)
24 bit / > 100
Displaytechnologie
White LED + Color LED (dimmable)
WLAN (Wi-Fi) Standard
IEEE 802.11a/b/g/n/ac
Gewicht
2,2 kg
B x H x T
21,7 x 7,9 x 21,7 cm
The QUAD Vena II Play is the latest addition to the best-selling QUAD Vena series of integrated amplifiers. It is also heralds the arrival of wireless audio streaming and multi-room technology to the QUAD product portfolio. Based on the recently upgrade and richly speci?ed Vena II, the QUAD Vena II Play incorporates the acclaimed DTS Play-Fi® platform. With DTS Play-Fi® Technology, music can be streamed over your wireless network in high resolution format and can be easily expanded to an ultimate multi-room system if required. You can stream from any source on your wireless network, including smart-phones, tablets or PCs as well as a NAS Drive. The DTS Play-Fi® platform o?ers a wealth of music options from around the globe. Spotify, Tidal, HD Tracks, Deezer, Amazon Music, Napster, KKBox and Sirius XM, to name a few. Browse a radio guide with thousands of stations and podcasts, or stream from a home media server with DLNA compatibility. QUAD Vena II Play borrows more than just looks from its sibling, the Vena II - utilizing much of the same high-speci?cation design, including the ES9018K2M from the Sabre32 Reference DAC as well as the aptX Bluetooth connectivity, it has all the pure musicality of QUAD coursing through its very versatile circuitry. There is also a smattering of both digital and analogue connections, including an MM phono stage, for a turntable. So however you want to enjoy your music, analogue or digital, the QUAD Vena II Play will have you connected and ready to play.
KEY FEATURES
Integrated Amplifier - 2x 45W RMS (8O) / 2x 65W RMS (4O)
Wi-Fi® Technology - DTS Play-Fi streams music over standard Wi-Fi networks, delivering perfectly synchronised audio, with no lag and zero loss in sound quality.
Any Operation System - Fully compatible with all operating systems: Apple iOS, Android!22, Windows® PC, and Fire OS.
Easy Setup - No logins, no complicated computer-based setups. Just download the app and within minutes, you're ready to listen.
DTS Play-Fi App - Simply download the free app and immediately send songs via Wi-Fi to any DTS Play-Fi® enabled speaker in any room of the house.
Multi-Room - Enjoy music in every room of your house - all at once, perfectly synchronised, with no lag. You're in control.
Lossless Audio Streaming - Stream in 24-bit/192kHz with compatible streaming services and file formats.
ESS Sabre32 ES9018K2M Reference DAC - As seen in the award-winning QUAD Vena II and many high-end audio solutions.
Ethernet Connection - Wired internet connection for high bandwidth applications.
Play from any Bluetooth Device - High quality Bluetooth APTX receiver
Turntable Ready - Built-in MM Phono Stage
1x Optical / 1x Coaxial / 2x Aux - Whole system connectivity.
NEW LED Volume Indicator - Customise visial volume display
Dedicated Spotify Connect LED Indicator

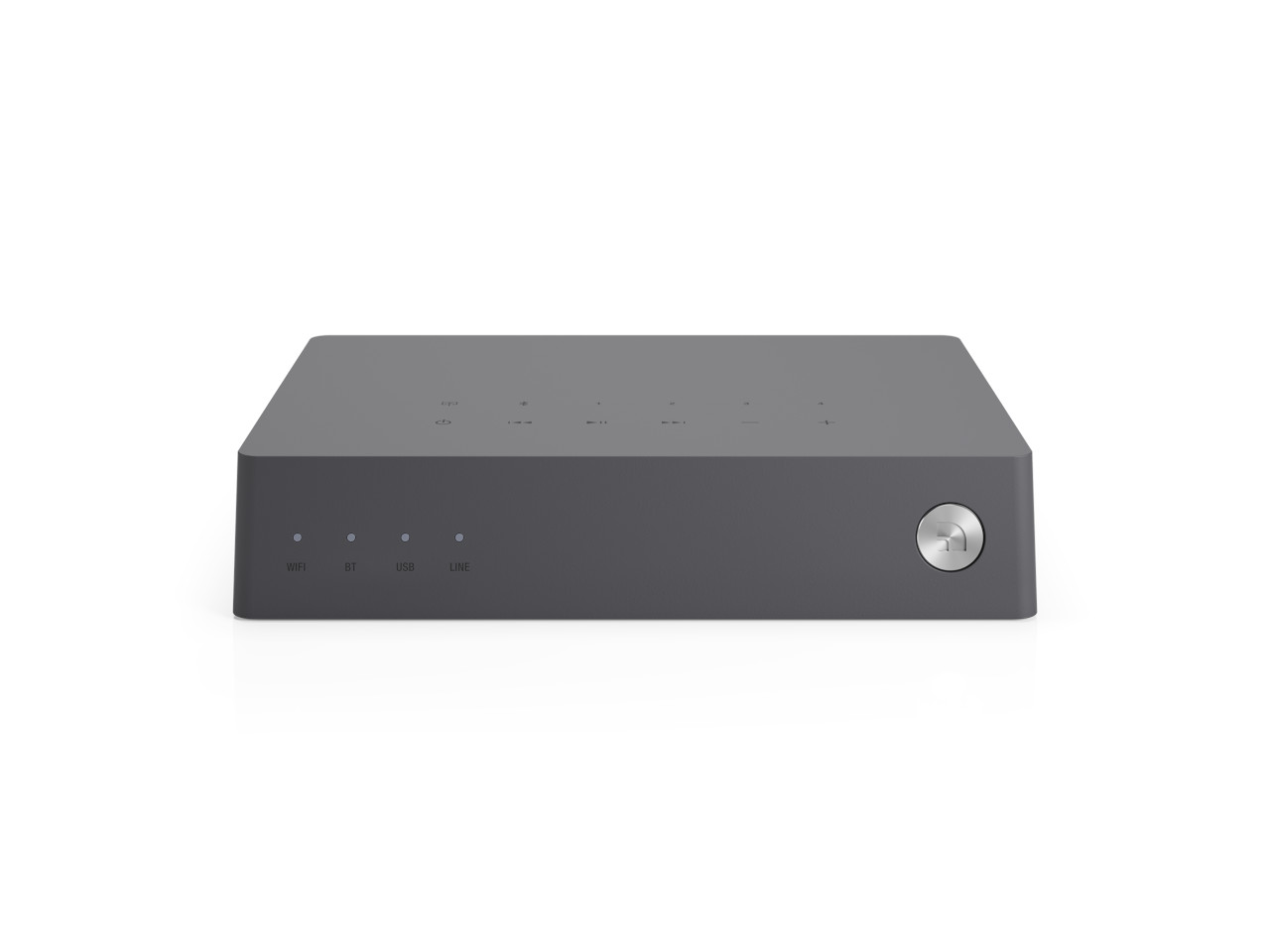

Link 2. Verwandelt jedes Audiogerät in einen Multiroom-Player.
Der Link 2 ist ein cleverer kleiner Multiroom-Adapter – eine einfache Möglichkeit, all deine Audiogeräte an das Audio Pro Multiroom-System anzuschließen. Verbinde ihn mit Aktivlautsprechern, Radios, Hifi-Anlagen oder AV-Receivern und steuere alles mit der Audio Pro Control App.
Multiroom
Multiroom-Sound und Nutzung durch mehrere Personen. Gruppieren und abspielen, zwei Geräte auf links/rechts für Stereoklang einstellen, alle Geräte einzeln oder zusammen spielen lassen – oder auch nicht. Es ist deine Entscheidung.
App Control
Die Bedienung ist einfach. Wir wissen, dass das jeder sagt, aber mit dieser App ist es wirklich easy. Von der blitzschnellen Einrichtung bis zur Nutzung funktioniert alles reibungslos.
Wireless und kabelgebunden
Du kannst den Link 2 kabellos mit AirPlay, Google Cast und Spotify Connect verwenden. Natürlich ist Bluetooth drin. Doch auch per Kabel bietet der Link 2 das volle Programm: Analoge Ein- und Ausgänge via RCA/Cinch, digitale Ein- und Ausgänge per optischem oder koaxialem TOSLink sowie ein USB-A-Port für Festplatten und USB.Sticks und eine Ethernet-Port sind vorhanden.
Der Audio Pro Link 2 ist in dunkelgrau erhältlich.
Ausstattung
Eingänge: 1x RCA/Cinch, USB-A, 1x Koax digital, 1x optisch digital
Kabelloser Zugang: Wifi und Ethernet, Bluetooth 4.2
Ausgänge: 1x RCA/Cinch Line-Out und je ein optischer und koaxialer Digitalausgang
Kompatibilität mit drahtlosen Netzwerken: 802.11 b/g/n, 2,4 und 5GHz
Unterstützte Audioformate: MP3, WMA, AAC, FLAC, Apple Lossless
Drahtlose Technologien: Audio Pro Multiroom, Google Cast, Spotify Connect und Apple Airplay 2
Macht jedes Audiogerät Multiroom-Ready
Apple AirPlay, Google Cast und Spotify Connect
Bluetooth, Ethernet und Wifi
Analoge und digitale Ausgänge
Technische Daten
Abmessungen HxBxT: 36 x 180 x 126mm
Gewicht: tbc.

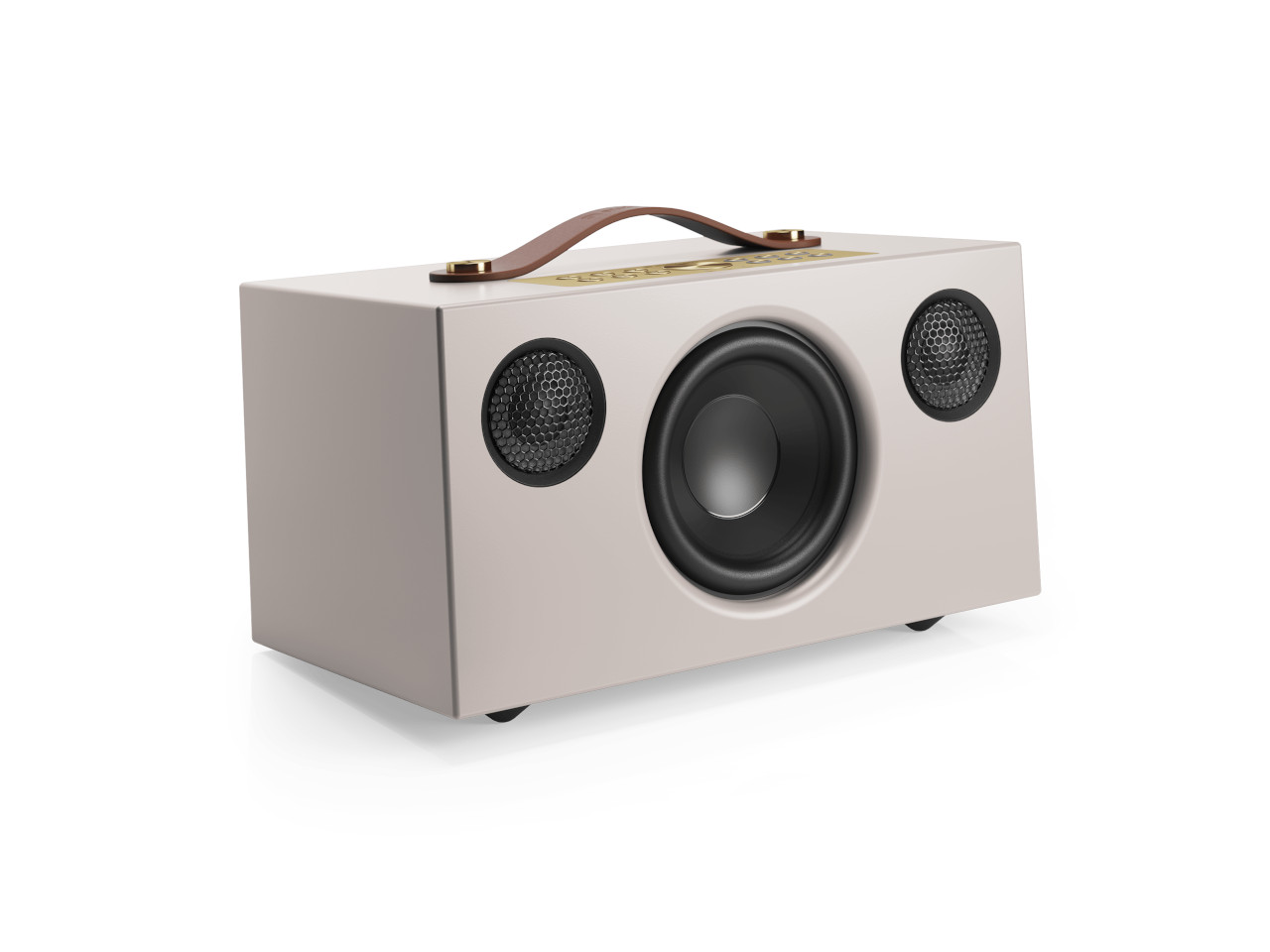

Addon C5 MkII – Performs bigger than it looks.
Ein kleiner und leicht zu platzierender Multiroom-Stereolautsprecher. Mit atemberaubender Dynamik und tiefen Bässen in Hülle und Fülle klingt der Addon C5 größer als er aussieht. Der C5 MkII ist die neue, verbesserte Version des C5. Er bietet AirPlay 2, Google Cast und Spotify Connect und einen noch besseren Klang als sein Vorgänger.
Die Multiroom-Funktion ermöglicht es dir, im ganzen Haus die gleiche Musik abzuspielen. Stelle zwei davon in einer Links/Rechts-Konfiguration zusammen und das Konzert findet buchstäblich auf der Bühne in deinem Haus statt. Spielt alle zusammen. Oder nicht. Du hast die Wahl. Multiroom-Sound und Nutzung durch mehrere Personen.
Der C5 wurde bereits mehrfach für seine Klangqualität und Benutzerfreundlichkeit ausgezeichnet. Der C5 MkII liefert einen noch besseren Klang und wird daher voraussichtlich ein großer Erfolg werden. Das Produkt ist das Aushängeschild für ein gutes Preis-Leistungs-Verhältnis.
Du kannst Musik von einem Plattenspieler oder CD-Player abspielen: Der C5 MkII hat einen Cinch-Eingang, um andere Audiogeräte anzuschließen. Besonders praktisch: Jede Quelle, die an den Lautsprecher angeschlossen ist, kann kabellos über andere Lautsprecher in deinem Netzwerk abgespielt werden.
Verfügbare Streaming-Dienste: Amazon Music, Deezer, iHeart Radio, Napster, Qobuz, QQ Music, Spotify, Tidal, TuneIn, VTuner und viele mehr (über Google Cast und AirPlay 2).
Technik für den guten Klang
Class D-Verstärker
Hochtöner: 2 x 3⁄4” Textil-Kalottenhochtöner
Tieftöner: 1 x 4” Langhub
Eingänge: 1x RCA/Cinch
Ausgänge: Sub output, USB DC OUT /max 5V, 1000mA
Wi-Fi mit AirPlay 2, Google Cast, Spotify Connect
Netzwerkkompatibilität: 802.11 b/g/n, 2,4G und 5Hz
Bluetooth 4.2
Unterstützte Audioformate: MP3, WMA, AAC, FLAC, Apple Lossless
Multiroom über Wifi
Bluetooth 4.2
AirPlay 2, Google Cast und Audio Pro Multiroom
Sechs Stationstasten
Technische Daten
Leistung: 2x 8W + 25W
Frequenzgang: 50–20.000Hz Übergangsfrequenz: 3.800Hz
Abmessungen HxBxT: 130 x 250 x 150 mm
Energieverbrauch Wi-Fi/STBY/ON: 01.8W/0.48W/3.8W
